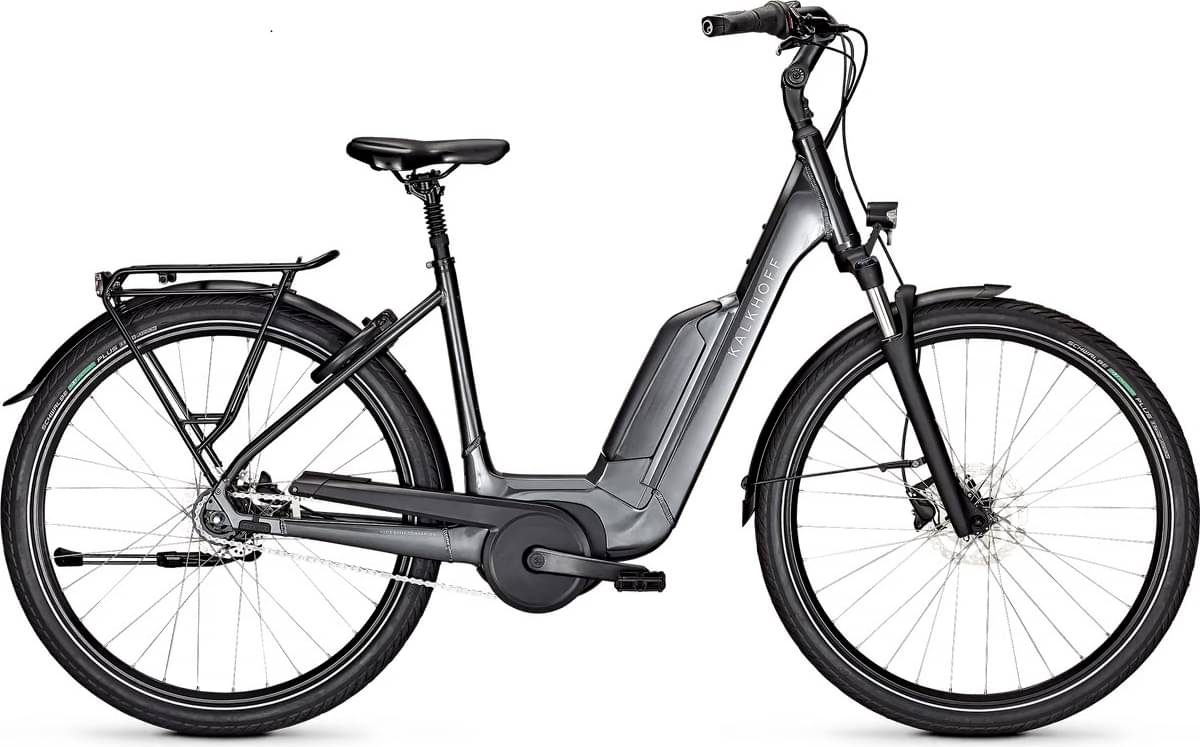

kalkhoff IMAGE 1.B MOVE INTERNATIONAL Wave 2024
2024 E-bike
Estimate price |
2,809$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour NVX
-
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch 400 Wh Ontube -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
SR Suntour NVX30
Drivetrain
Shift Levers
Hub
Crank
aluminium
Chain
KMC Z1 EPT, Anti-Rost Beschichtung
Wheels
Rims
Schürmann Craft 21
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
Rim
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Patent, gefedert
Motor & Battery
Motor
Bosch Active Line
Battery
Bosch 400 Wh Ontube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
