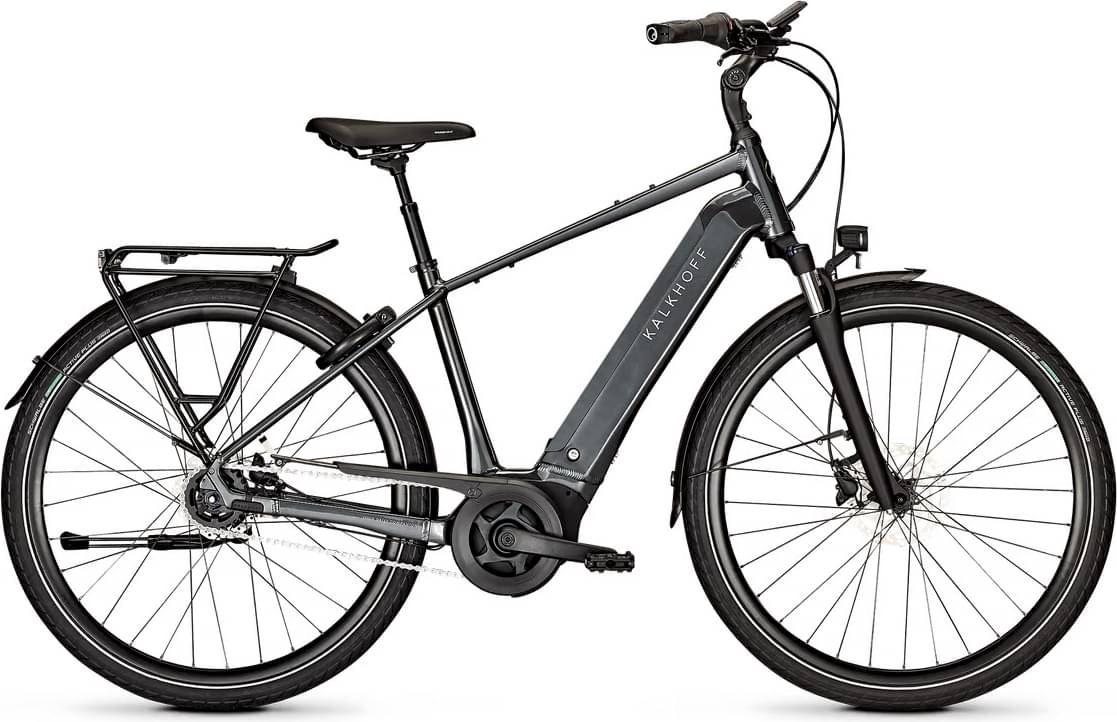

kalkhoff IMAGE 3 ADVANCE Diamond 2024
2024 E-bike
Estimate price |
4,357$
Weight | 29.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 44mm -
Fork Suntour NEX
-
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh),Bosch PowerTube Li-Ion 36 V / 13,4 Ah (500 Wh) -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 3|23
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Hub
Crank
aluminium
Chain
KMC Z1 EPT, Anti-Rost Beschichtung
Wheels
Rims
Aluminium, Hohlkammer, geöst
Tires
Schwalbe Energizer Plus Performance, 50-622
Brakes
Brakes
Rim
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, gefedert
Motor & Battery
Motor
Bosch Performance Line Smart System
Battery
Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh),Bosch PowerTube Li-Ion 36 V / 13,4 Ah (500 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.655 mm | 1.674 mm | 1.673 mm |
| Stack | 685.7 mm | 653.7 mm | 663.1 mm | 672.5 mm |
| Reach | 462 mm | 395 mm | 396 mm | 402 mm |
| Top Tube Length | 618.3 mm | 649.9 mm | 652.7 mm | 661.6 mm |
| Seat Tube Angle | 73 ° | 73 ° | 70 ° | 73 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 165 mm | 175 mm | 180 mm |
| Wheelbase | 1158 mm | 1200 mm | 1204 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Front Travel | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 650 | 650 | 650 | 650 |
