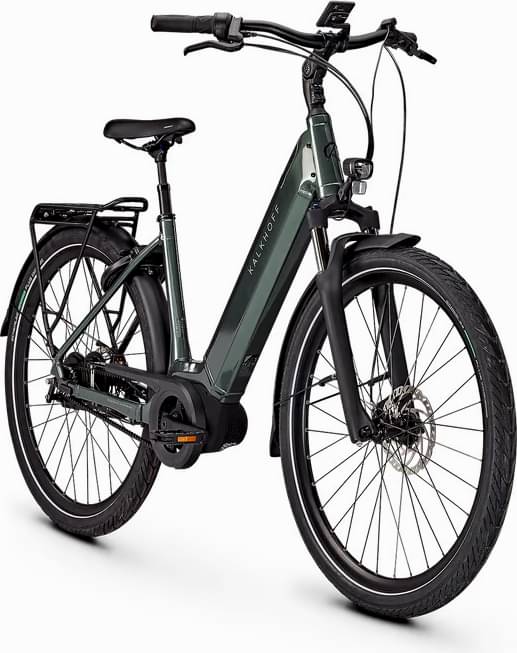

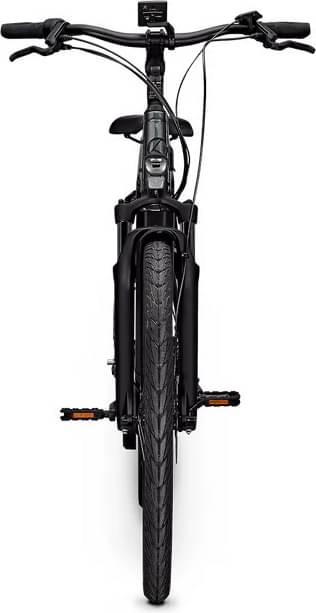

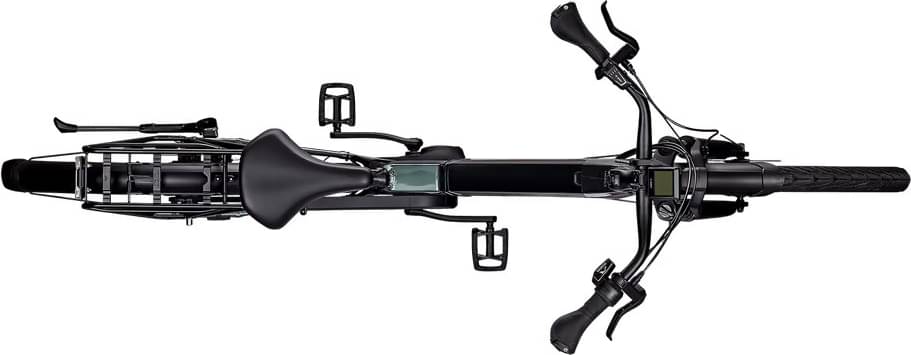

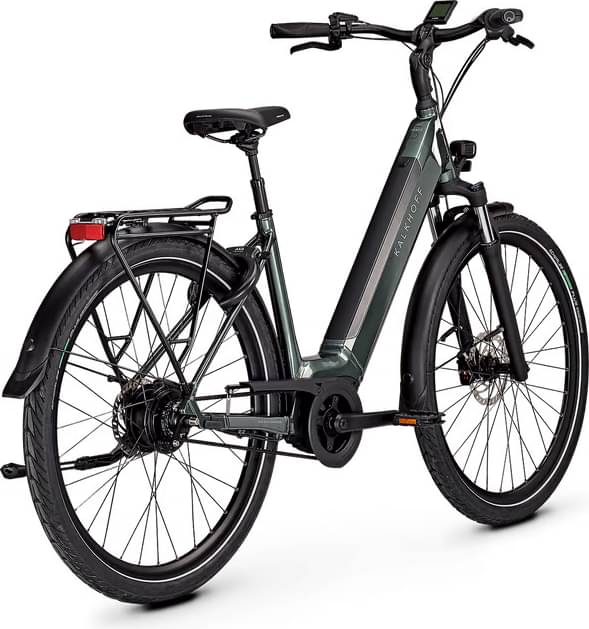

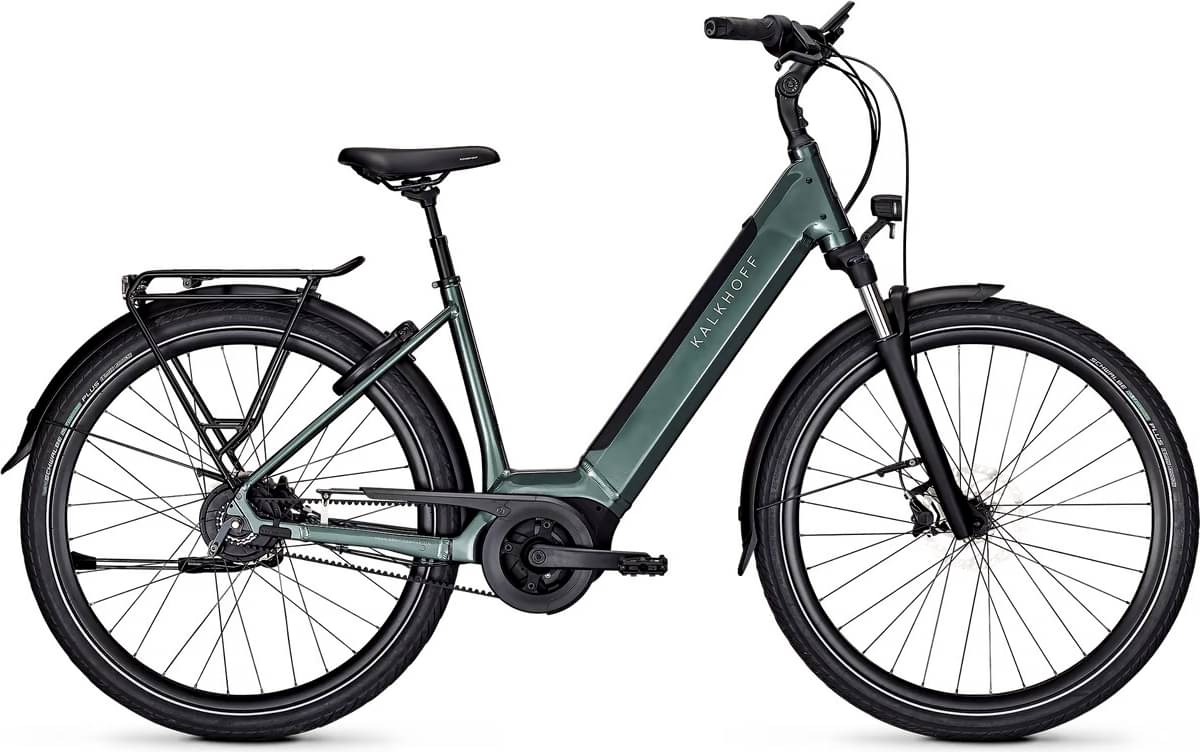

kalkhoff IMAGE 3 EXCITE BLX Wave 2024
2024 E-bike
Estimate price |
4,816$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 44mm -
Fork Suntour XCM
-
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V / 13,4 Ah (500 Wh) -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour XCM HLO, lockout
Drivetrain
Shift Levers
Hub
Cassette
Gates Carbondrive
Crank
Aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort, mit rutschhemmender Beschichtung und Reflektor
Wheels
Rims
Hochprofil, Hohlkammer, geöst, Aluminium
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
Disc Brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, gefedert
Motor & Battery
Motor
Bosch Performance Line Smart System
Battery
Bosch PowerTube Li-Ion 36 V / 13,4 Ah (500 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | SM |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.488 mm | 1.484 mm | 1.453 mm |
| Stack | 666.8 mm | 678.5 mm | 685.7 mm | 653.7 mm |
| Reach | 450 mm | 456 mm | 462 mm | 450 mm |
| Top Tube Length | 599.9 mm | 609.4 mm | 618.3 mm | 649.9 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70 ° |
| Head Tube Length | 175 mm | 180 mm | 195 mm | 165 mm |
| Wheelbase | 1145 mm | 1149 mm | 1158 mm | 1200 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Front Travel | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 650 | 650 | 650 | 650 |
