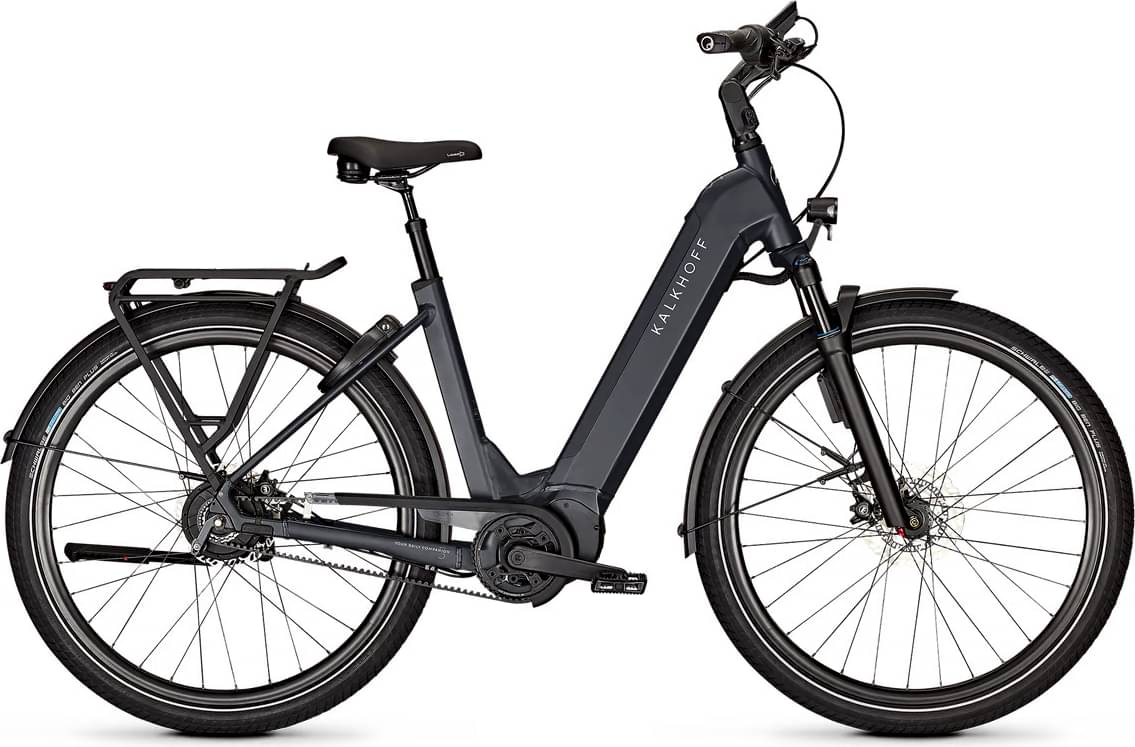

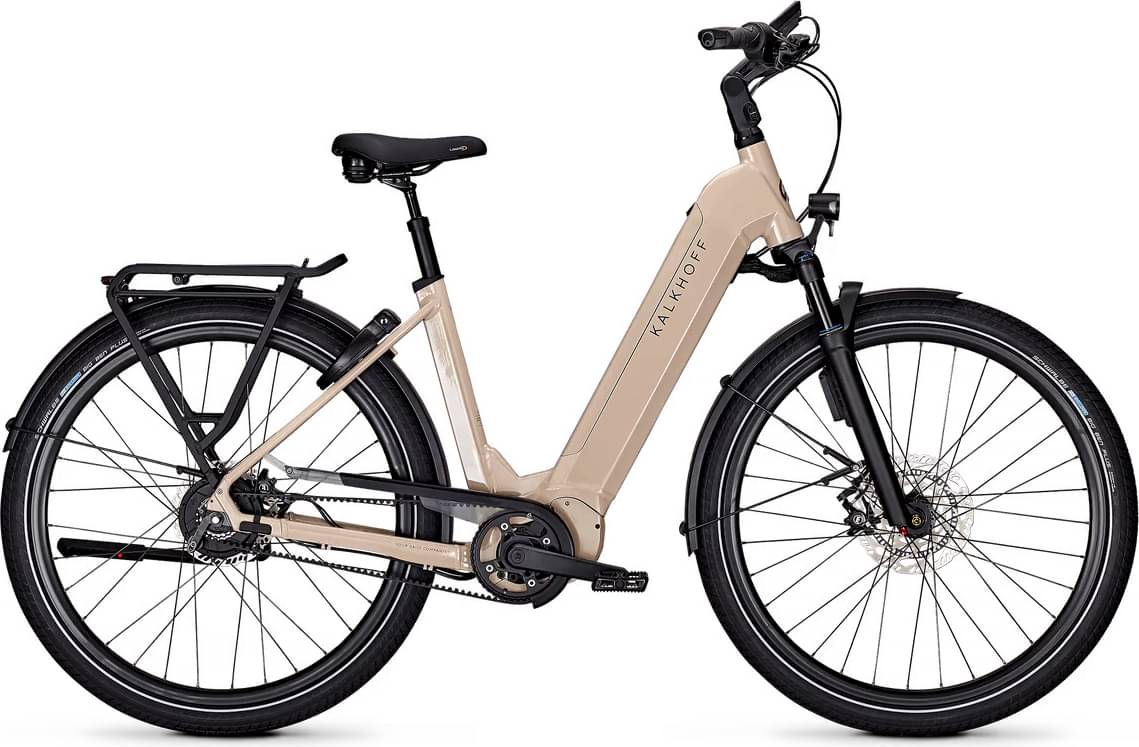

kalkhoff IMAGE 5 EXCITE+ ABS Wave 2024
2024 E-bike
Estimate price |
6,422$
Weight | 30.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 44mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh) -
Drivetrain Belt Drive -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6 CX, Aluminium
Suspension Fork
Suntour Mobie34, 100x15 mm Steckachse, 44mm rake, ABS
Drivetrain
Shift Levers
Hub
Crank
aluminium
Chain
Gates Carbondrive CDX
Wheels
Rims
Rodi Cyclone, geöst
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
Rim
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin Plus
Seatpost
Patent, gefedert
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch PowerTube Li-Ion 36 V / 17,4 Ah (625 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.689 mm | 1.686 mm | 1.679 mm |
| Stack | 660 mm | 667 mm | 679 mm | 688 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 71 ° | 71 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Wheelbase | 1136 mm | 1145 mm | 1149 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Front Travel | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
