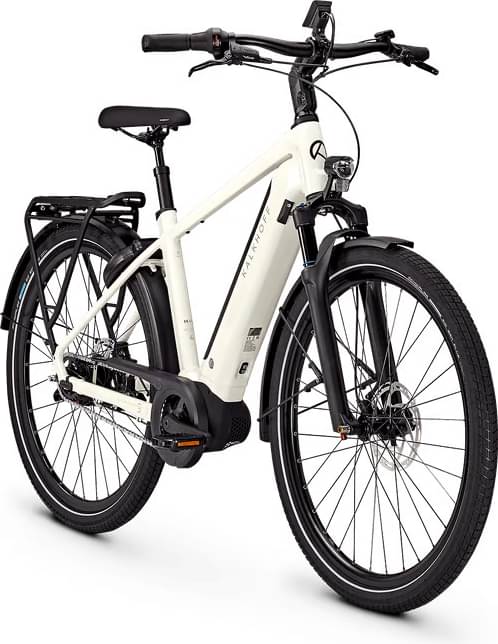

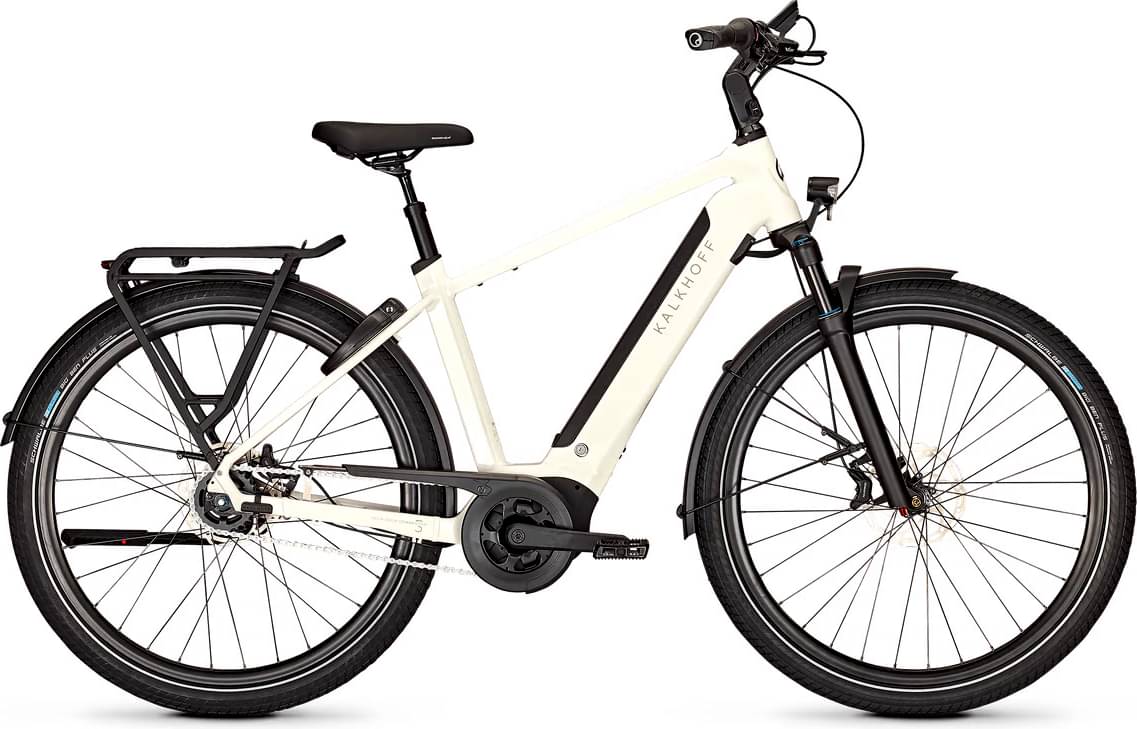

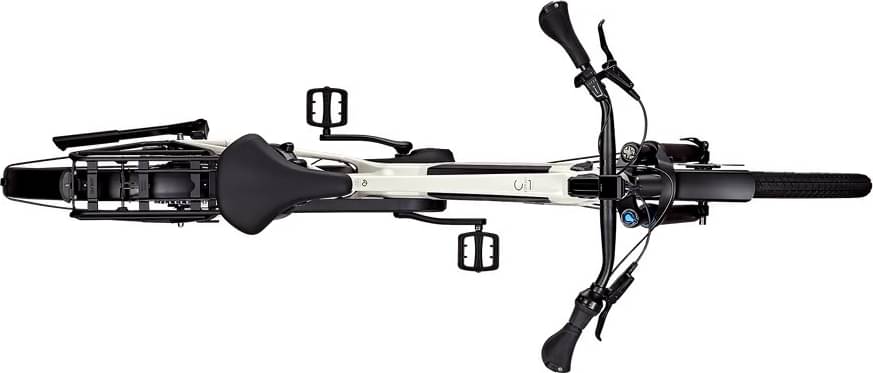

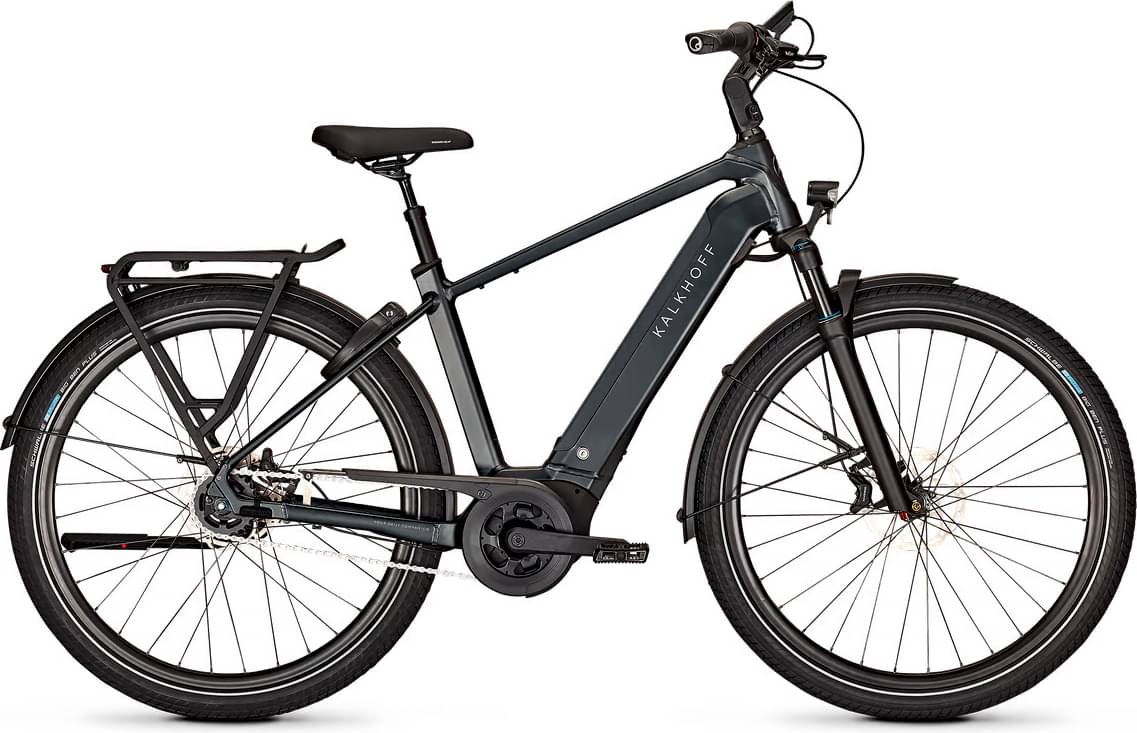

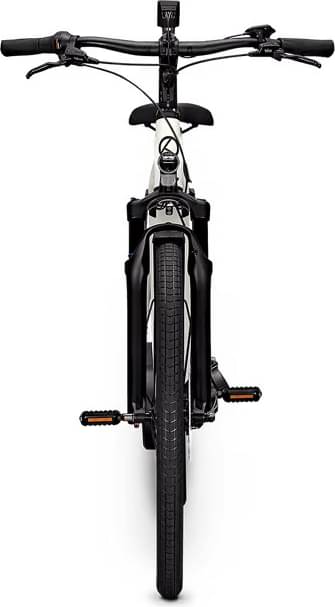

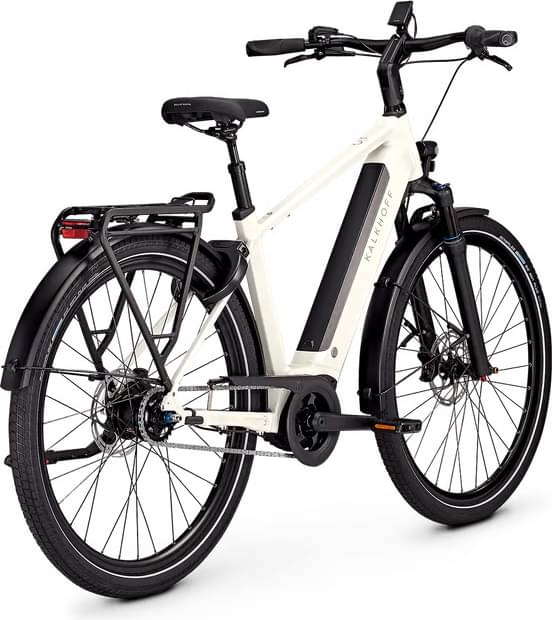

kalkhoff IMAGE 5+ MOVE Diamond 2024
2024 E-bike
Estimate price |
4,816$
Weight | 30 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 44mm -
Fork Suntour MOBIE
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Bosch PowerTube Li-Ion (625 Wh) -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour Mobie34 Air, 15 mm thru axle
Drivetrain
Rear Derailleur
5-G Shimano Nexus
Shift Levers
Hub
Crank
Aluminium
Chain
KMC Z1 EPT, Anti-Rost Beschichtung
Pedals
Comfort, mit rutschhemmender Beschichtung und Reflektor
Wheels
Rims
Rodi Cyclone, geöst
Tires
Schwalbe Big Ben Plus, 55-622
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, gefedert
Motor & Battery
Motor
Bosch Performance Line Smart System
Battery
Bosch PowerTube Li-Ion (625 Wh)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.689 mm | 1.686 mm | 1.679 mm |
| Stack | 660 mm | 669 mm | 679 mm | 688 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Wheelbase | 1136 mm | 1140 mm | 1149 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Front Travel | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
