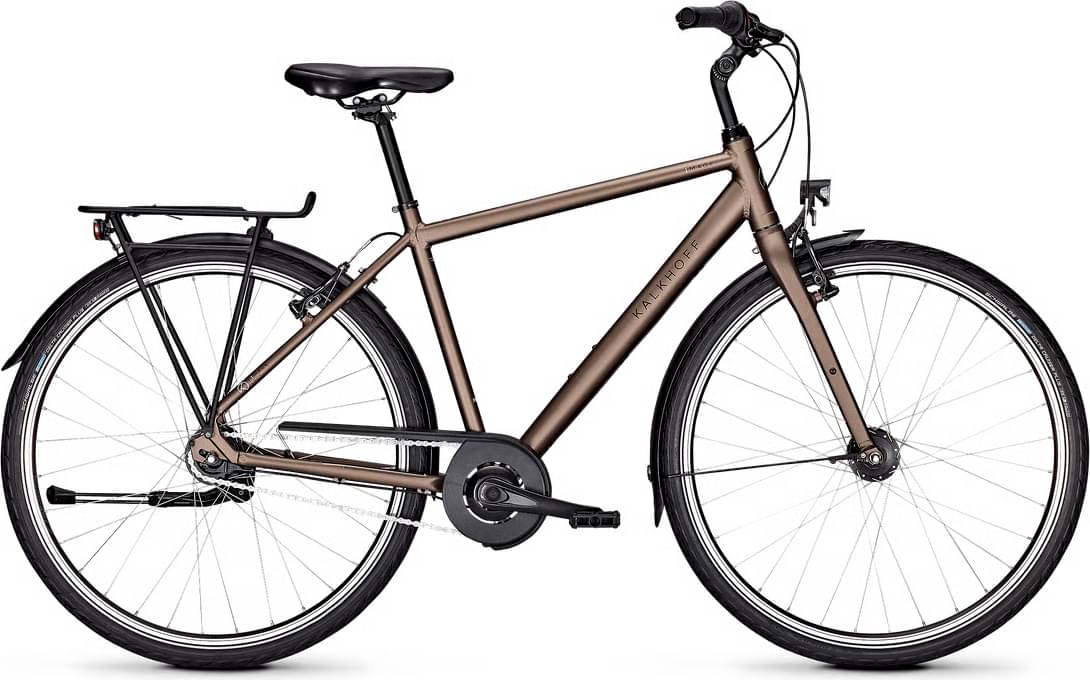

kalkhoff IMAGE LITE Diamond 2024
2024 Urban
Estimate price |
1,031$
Weight | 16.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trekking 0.5 V2, aluminium
Suspension Fork
Aluminium, rigid
Drivetrain
Shift Levers
Hub
Crank
Prowheel
Chain
KMC Z1 EPT, Anti-Rost Beschichtung
Wheels
Rims
Schürmann ZXS, geöst
Tires
Schwalbe Delta Cruiser Plus, 47-622
Brakes
Brakes
Rim
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Magix, Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | SM | XL | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.622 mm | 1.582 mm | 1.599 mm |
| Stack | 606 mm | 644 mm | 644 mm | 654 mm |
| Reach | 410 mm | 397 mm | 407 mm | 409 mm |
| Top Tube Length | 595 mm | 600 mm | 610 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 71.5 ° | 70.5 ° | 71.5 ° | 70.5 ° |
| Head Tube Length | 180 mm | 220 mm | 220 mm | 230 mm |
| Wheelbase | 1103 mm | 1113 mm | 1113 mm | 1128 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 55 mm | 60 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 650 | 650 | 650 | 650 |
