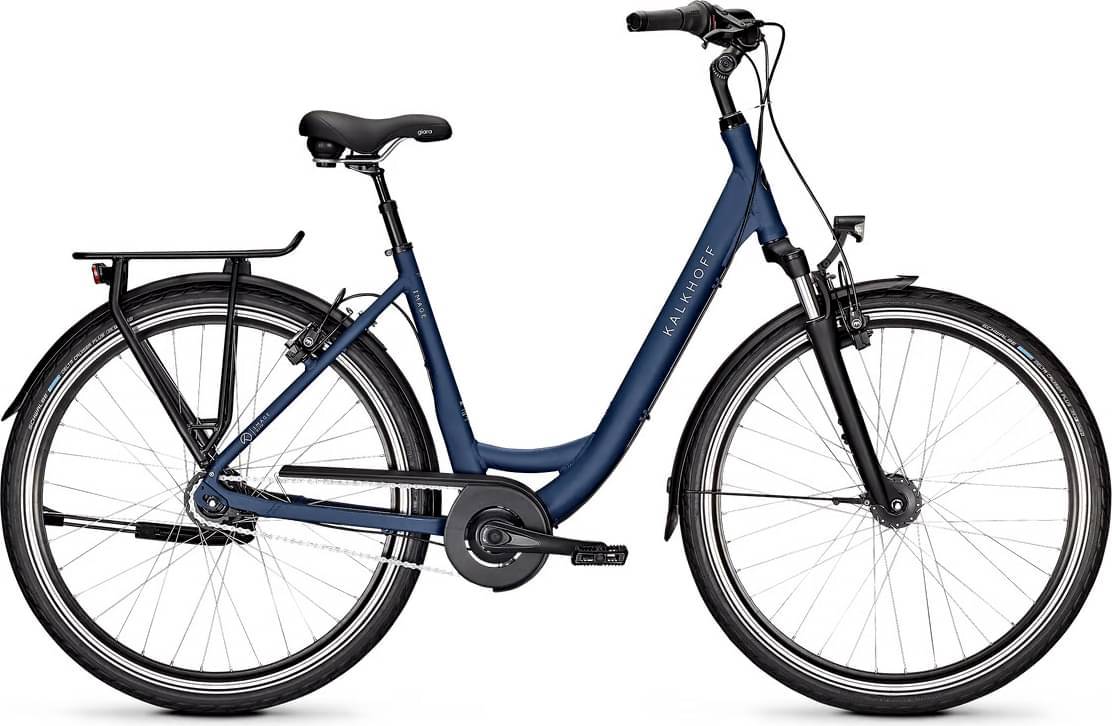

kalkhoff IMAGE XXL Wave 2024
2024 Urban
Estimate price |
1,238$
Weight | 19.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 45mm -
Fork Suntour NEX
-
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trekking 1.0 XXL, aluminium
Suspension Fork
SR Suntour NEX, adjustable
Drivetrain
Shift Levers
Hub
Crank
Prowheel
Chain
KMC Z1 EPT, Anti-Rost Beschichtung
Wheels
Rims
Rodi Airline Plus, geöst
Tires
Schwalbe Delta Cruiser Plus, 47-622
Brakes
Brakes
Rim
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Giara
Seatpost
Patent XXL, gefedert
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | SM | XL | MD | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.646 mm | 1.708 mm | 1.792 mm | 1.682 mm | 1.736 mm |
| Stack | 652 mm | 666 mm | 699 mm | 676 mm | 729 mm |
| Reach | 396 mm | 390 mm | 390 mm | 402 mm | 420 mm |
| Top Tube Length | 595 mm | 600 mm | 610 mm | 615 mm | 657 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72 ° |
| Head Tube Angle | 71.5 ° | 70.5 ° | 71.5 ° | 70.5 ° | 73 ° |
| Head Tube Length | 170 mm | 185 mm | 220 mm | 195 mm | 240 mm |
| Wheelbase | 1104 mm | 1108 mm | 1113 mm | 1123 mm | 1133 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 55 mm | 60 mm | 60 mm |
| Front Travel | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
