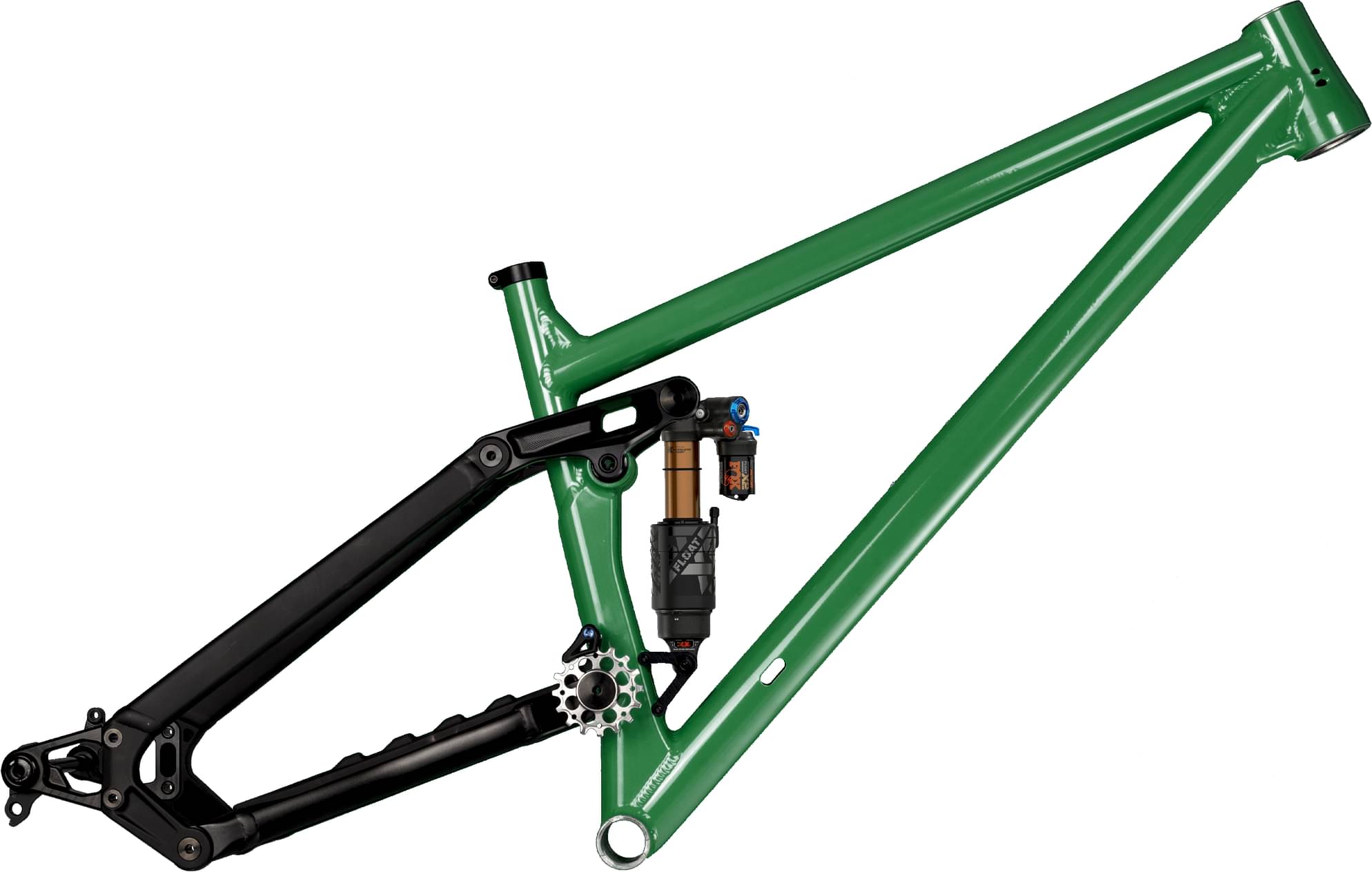

Kavenz VHP16 MX 2024

Bike details

Overview

Key information split into simple groups.

Parts list

Components

Main Frame: AL-7020, Rear End: AL-6061, Rocker: AL-7075

Trunnion 205x65 (Mounting Hardware: 22x8mm)

73mm BSA (Optional ISCG 05 Adapter and Lower Chainguide)

Rear: IS 2000 (Compatible with 160-220mm Discs)

ZS44/28.6 | ZS56/40 (for Tapered Forks)

31.6mm with Internal Seatpost Cable Routing

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM	MD	LG	XL	XXL	XXXL
Stack Reach Ratio	1.452 mm	1.389 mm	1.331 mm	1.323 mm	1.271 mm	1.223 mm
Bottom Bracket Height	343 mm	343 mm	343 mm	343 mm	343 mm	343 mm
Front Center	786 mm	806 mm	826 mm	846 mm	866 mm	886 mm
Rake	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Trail	135 mm	135 mm	135 mm	134 mm	134 mm	134 mm
Stack	639 mm	639 mm	639 mm	652 mm	652 mm	652 mm
Reach	440 mm	460 mm	480 mm	493 mm	513 mm	533 mm
Top Tube Length	578 mm	598 mm	618 mm	631 mm	651 mm	671 mm
Seat Tube Angle	75.5 °	75.5 °	75.5 °	75.5 °	75.5 °	75.5 °
Seat Tube Length	420 mm	420 mm	450 mm	450 mm	480 mm	480 mm
Head Tube Angle	64 °	64 °	64 °	64 °	64 °	64 °
Head Tube Length	110 mm	110 mm	110 mm	125 mm	125 mm	125 mm
Chainstay Length	419 mm	419 mm	429 mm	429 mm	439 mm	439 mm
Wheelbase	1203 mm	1223 mm	1253 mm	1273 mm	1303 mm	1323 mm
Bottom Bracket Drop	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Standover Height	783 mm	783 mm	783 mm	783 mm	783 mm	783 mm
Wheels	29"	29"	29"	29"	29"	29"
