Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Tektro Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Endurance Concept, Aluminium alloy / tapered HT, internal routing
Suspension Fork
KELLYS Carbon, 1.5 tapered steerer
Drivetrain
Rear Derailleur
SHIMANO Claris R2000 (direct mount)
Front Derailleur
SHIMANO Claris R2000 (braze on)
Shift Levers
SHIMANO Claris ST-R2000 Dual Control
Cassette
SHIMANO CS-HG50-8 (11-32T)
Crank
SHIMANO Claris R2000 (50x34T) - length 170 mm (S - M), 175 mm (L)
Bottom Bracket
SHIMANO BB-RS500
Chain
KMC Z8 (108 links)
Wheels
Front Hub
SHIMANO Claris 2400 (32 holes)
Rear Hub
SHIMANO Claris 2400 (32 holes)
Rims
KELLYS Spark 622x15 (32 holes / eyelets)
Spokes
stainless steel black
Tires
SCHWALBE Lugano 25-622 (700x25C) K-Guard, Silica
Brakes
Brakes
TEKTRO
Brake Levers
SHIMANO Claris ST-R2000 Dual Control
Cockpit
Stem
KLS Active Road - diam 28.6 mm / bar bore 31.8 mm / 6° / length 70 mm (S), 90 mm (M), 110 mm (L)
Handlebar
KLS Expert Road - diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
Grips
KLS bar tape
Seat
Saddle
WTB Volt
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data

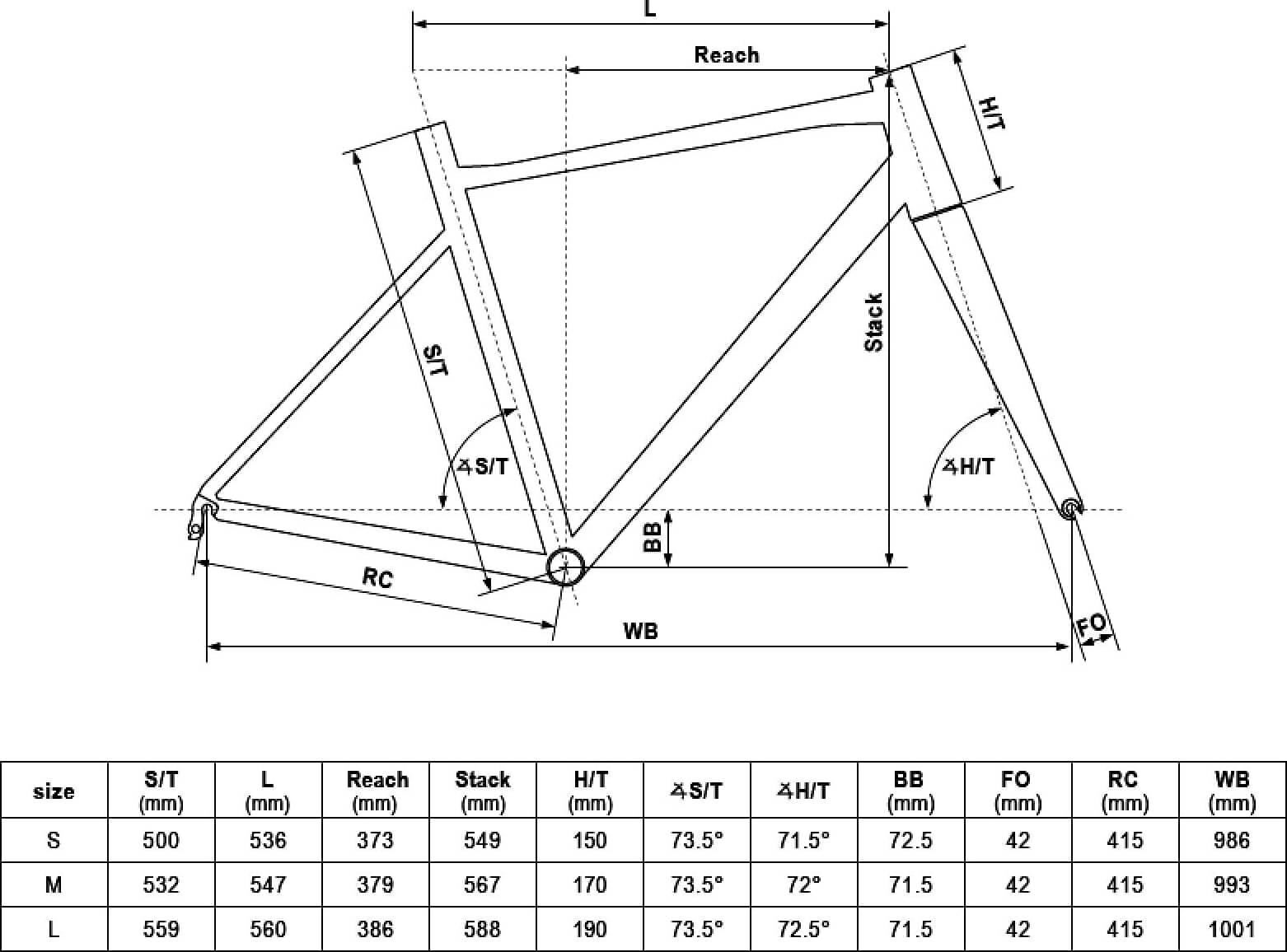

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
