Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Shimano Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy monotube 26
Suspension Fork
hi-ten unicrown (threaded steerer)
Drivetrain
Shift Levers
SHIMANO Nexus SL-3S42E Revoshift
Cassette
SHIMANO for internal hub 20T
Crank
PROWHEEL (38T) - length 170 mm
Bottom Bracket
cartridge (116 mm)
Chain
KMC Z6 (98 links)
Pedals
VP NonSlip - plastic
Wheels
Front Hub
alloy / SHIMANO Nexus 3C41 Inter-3 (36 holes)
Rear Hub
alloy / SHIMANO Nexus 3C41 Inter-3 (36 holes)
Rims
KELLYS Event 559x19 (36 holes)
Spokes
steel
Tires
MITAS Cobra 50-559 (26x1.90)
Brakes
Brakes
APSE V-brake / SHIMANO náš?apná brzda
Brake Levers
TEKTRO
Cockpit
Stem
ZOOM - diam 25.4 mm / 25° / length 80 mm
Handlebar
steel RiseBar - diam 25.4 mm / rise 160 mm / width 670 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data

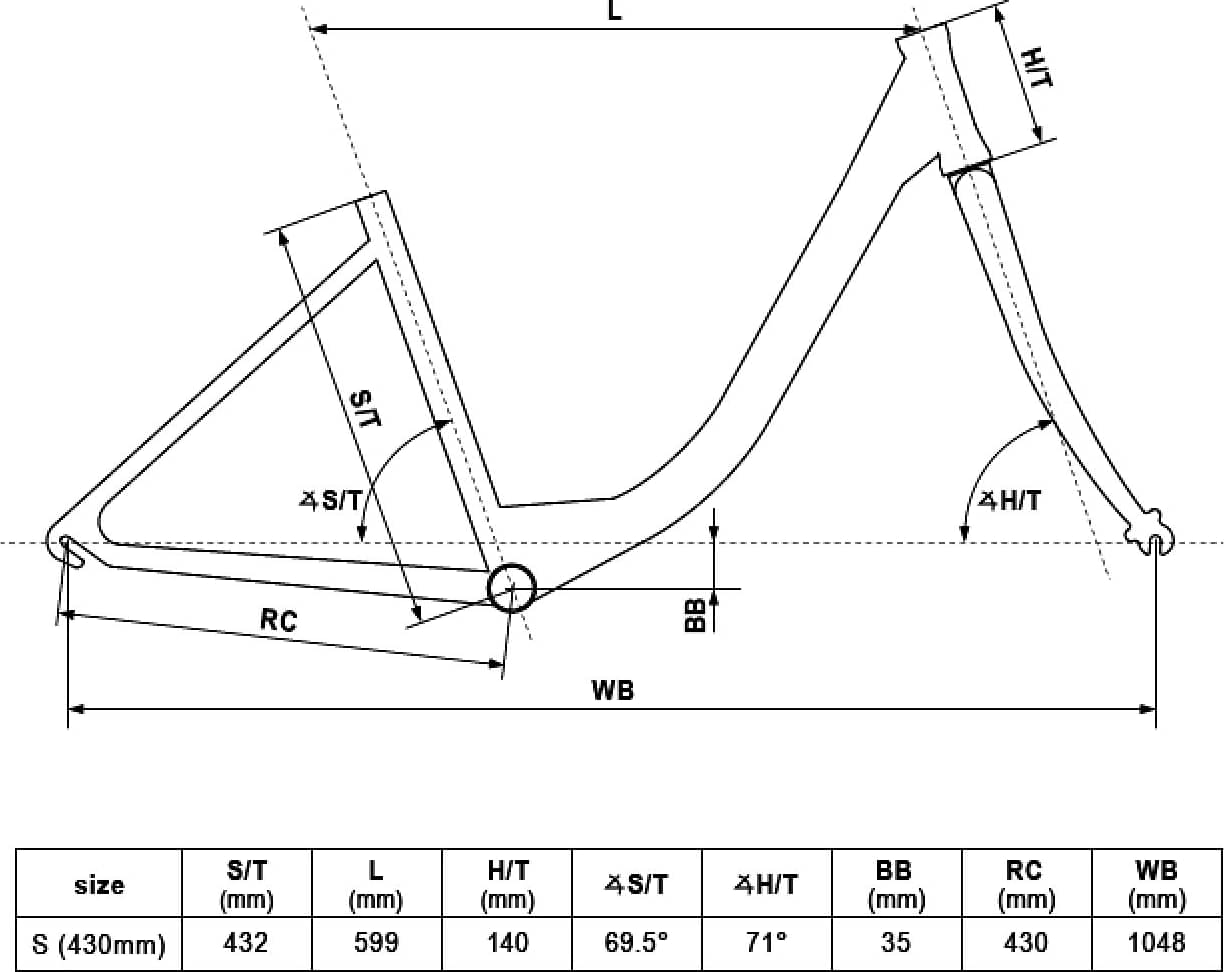

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
