Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy monotube 28
Suspension Fork
SR SUNTOUR M3010 P, 50 mm, coil spring
Drivetrain
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG31-8 (11-34T)
Crank
SHIMANO TY501 (48x38x28T) - length 170 mm
Bottom Bracket
cartridge (120 mm)
Chain
KMC Z8 (116 links)
Pedals
NonSlip - plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / KLS Drive (36 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / KLS Drive (36 holes)
Rims
KLS Draft 622x21 (36 holes / eyelets)
Spokes
steel
Tires
MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
TEKTRO V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 90 mm (S), 100 mm (M)
Handlebar
steel RiseBar - diam 25.4 mm / rise 70 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY suspension - diam 27.2 mm / length 300 mm (S), 350 mm (M
Fit data

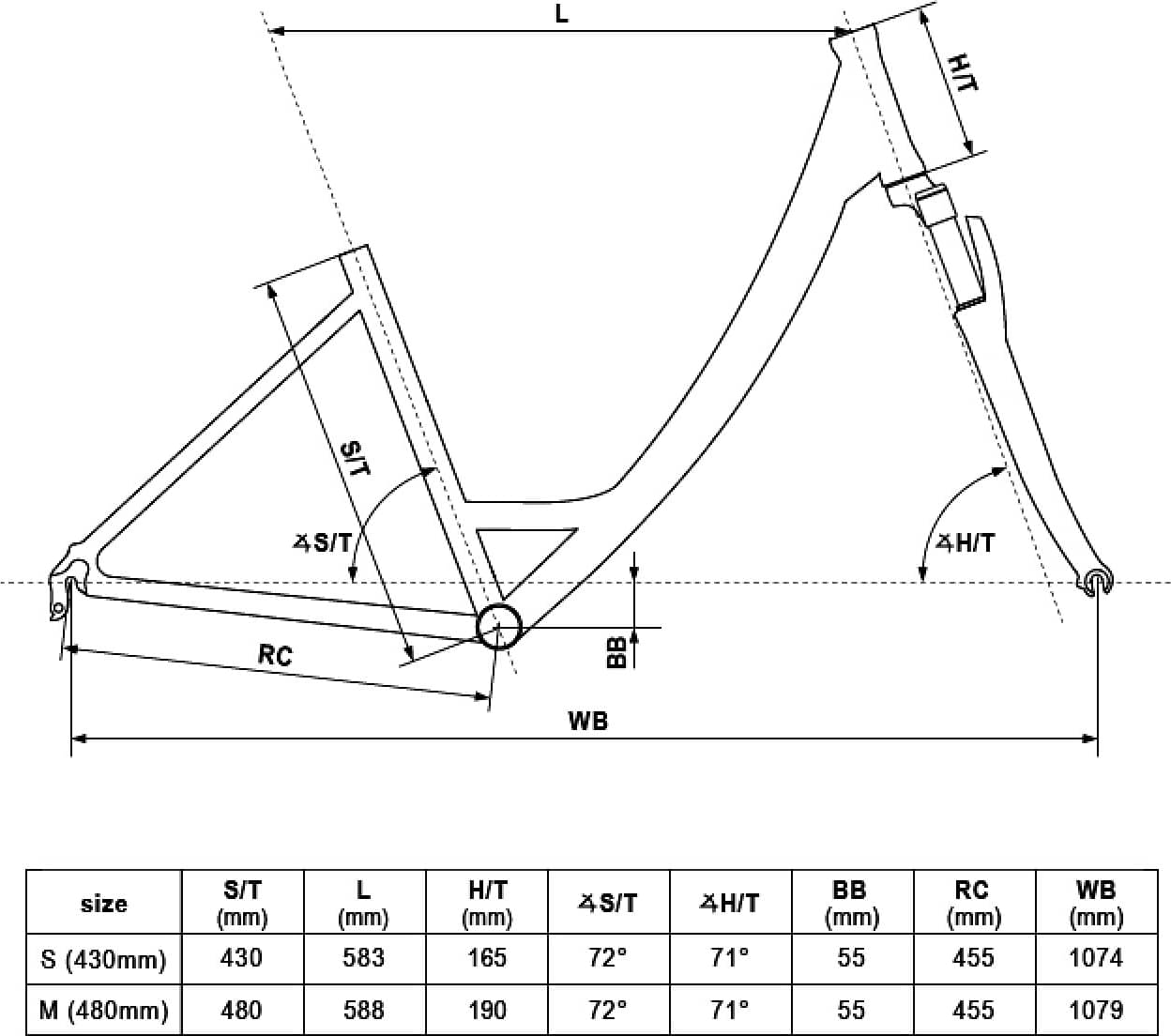

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
