Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Tektro Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy monotube 28
Suspension Fork
SR SUNTOUR CR-8V, 50 mm, coil spring (threaded steerer)
Drivetrain
Shift Levers
SHIMANO Nexus SL-7S20 Revoshift
Cassette
SHIMANO for internal hub 21T
Crank
PROWHEEL (38T) - length 170 mm
Bottom Bracket
cartridge (116 mm)
Chain
KMC Z6 (102 links)
Pedals
NonSlip - plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / SHIMANO Nexus C3000 Inter-7 (36 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / SHIMANO Nexus C3000 Inter-7 (36 holes)
Rims
KLS Draft 622x21 (36 holes / eyelets)
Spokes
steel
Tires
MICHELIN Protek BR 47-622 (700x47C) ReflectiveLine
Brakes
Brakes
TEKTRO V-brake / SHIMANO coaster brake
Brake Levers
TEKTRO
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 90 mm
Handlebar
steel RiseBar - diam 25.4 mm / rise 70 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY suspension - diam 27.2 mm / length 350 mm
Fit data

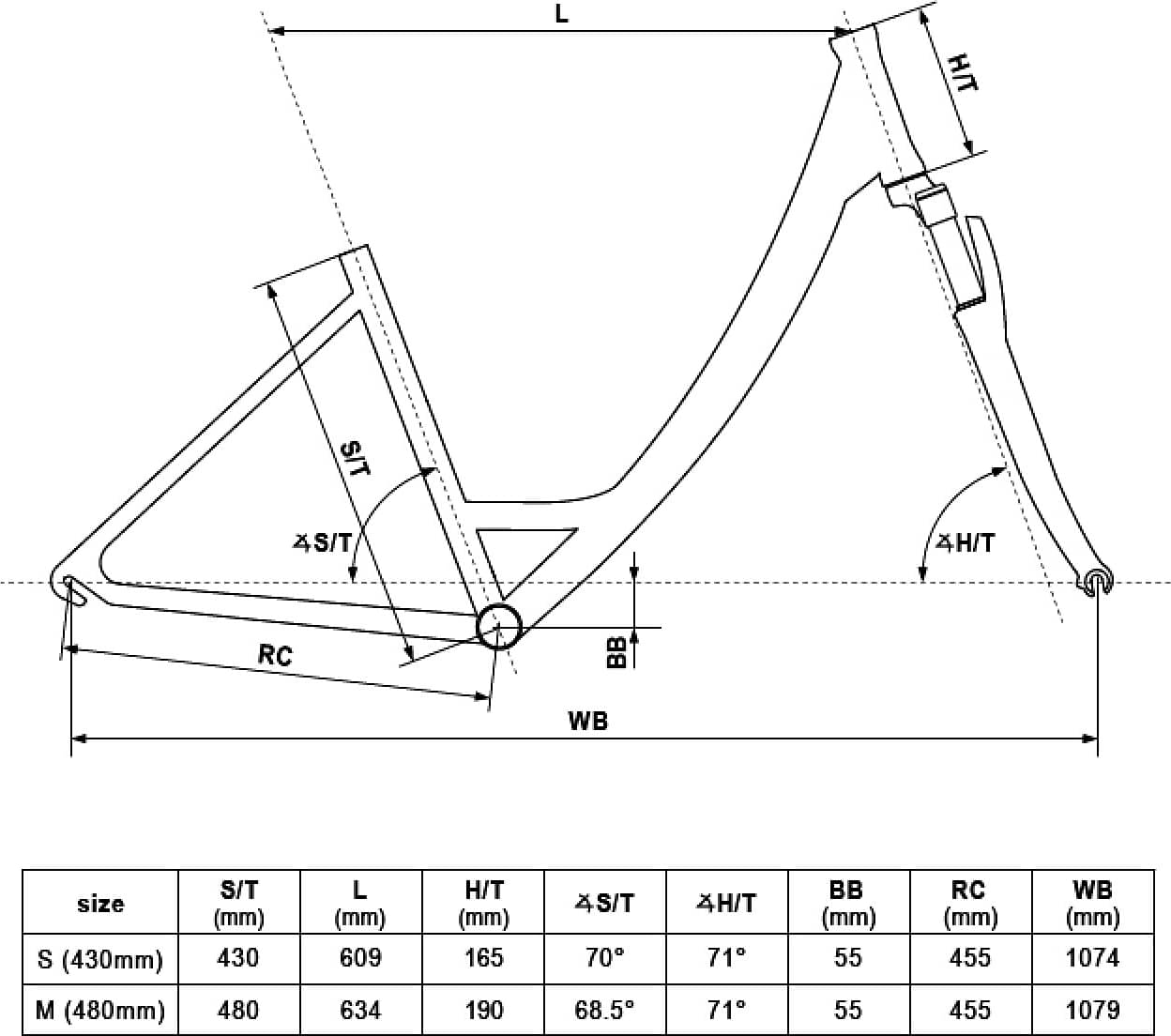

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
