Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR M3010, 50 mm, coil spring (threaded steerer)
Drivetrain
Rear Derailleur
SHIMANO Altus M310 (direct mount)
Front Derailleur
SHIMANO TY710 (34.9 mm)
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (48x38x28T) - length 175 mm
Bottom Bracket
cartridge (120 mm)
Chain
KMC Z8 (114 links)
Pedals
plastic
Wheels
Front Hub
alloy(32 holes)
Rear Hub
alloy(32 holes)
Rims
KLS Draft 622x21 (32 holes / eyelets)
Spokes
steel
Tires
INNOVA 42-622 (700x42C)
Brakes
Brakes
APSE V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 100 mm
Handlebar
steel RiseBar - diam 25.4 mm / rise 35 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
KLS CrossLine
Seatpost
KALLOY suspension - diam 30.9 mm / length 350 mm
Fit data

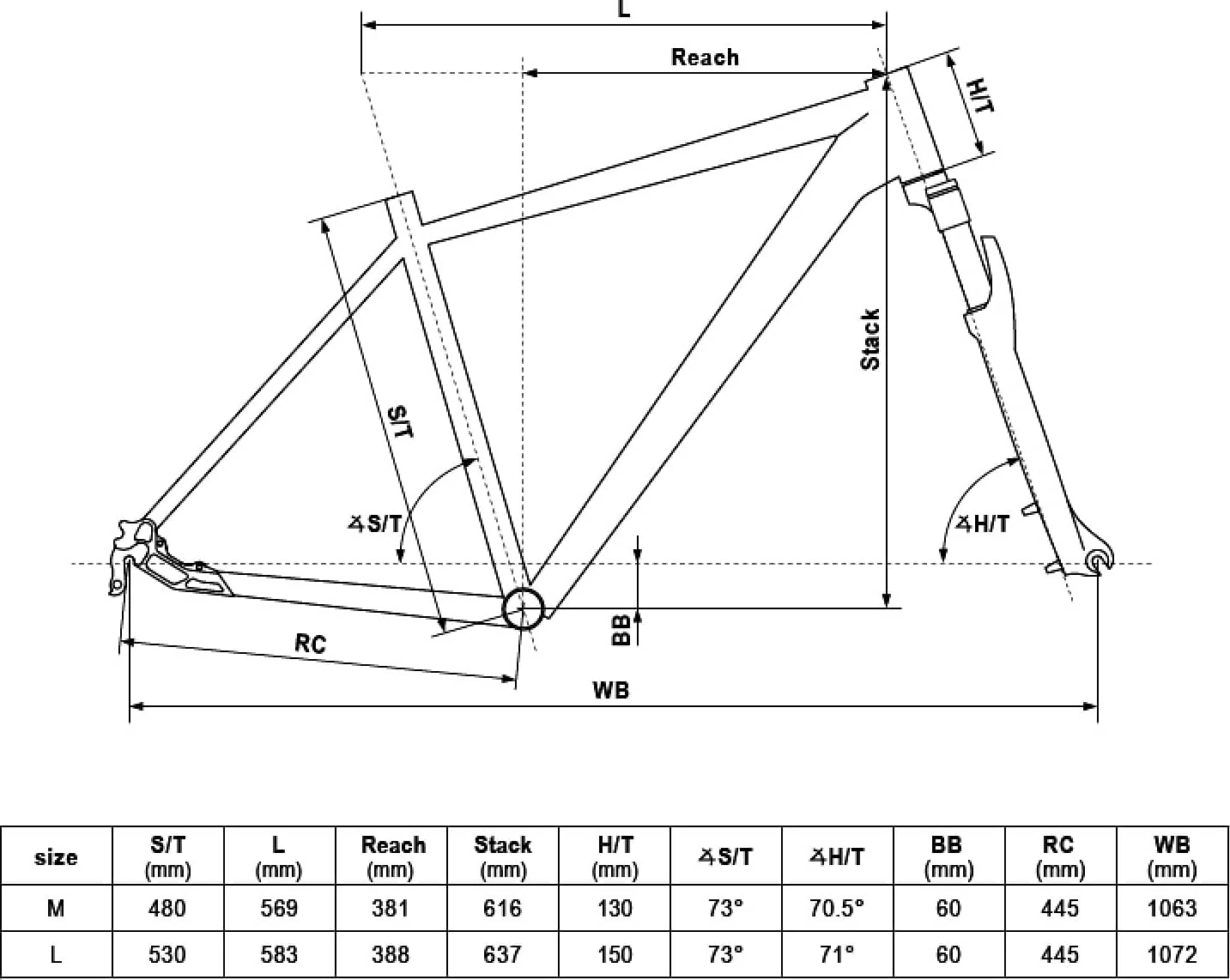

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
