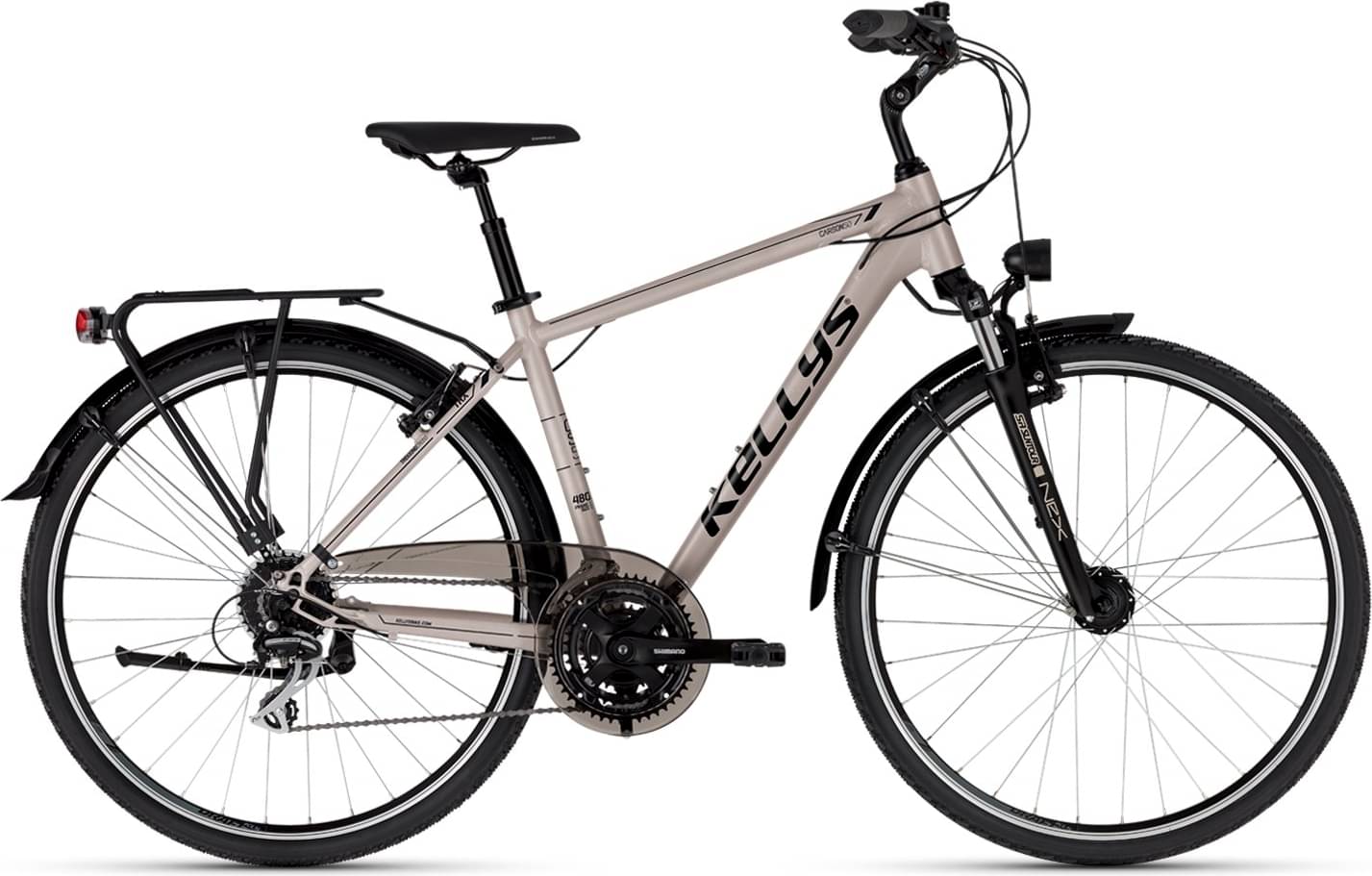

Kellys CARSON 50 DESERT BROWN 2025
2025 Urban
Estimate price |
871$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX P, 63 mm, coil spring (threaded steerer)
Drivetrain
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (48x38x28T) - length 175 mm
Bottom Bracket
cartridge (120 mm)
Chain
KMC Z8 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rims
KLS Draft 622x21 (32 holes / eyelets)
Spokes
steel
Tires
INNOVA 44-622 (700x42C)
Brakes
Brakes
TEKTRO V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 100 mm
Handlebar
steel RiseBar - diam 25.4 mm / rise 35 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Essenza Moderate
Seatpost
KALLOY suspension - diam 30.9 mm / length 350 mm
Fit data

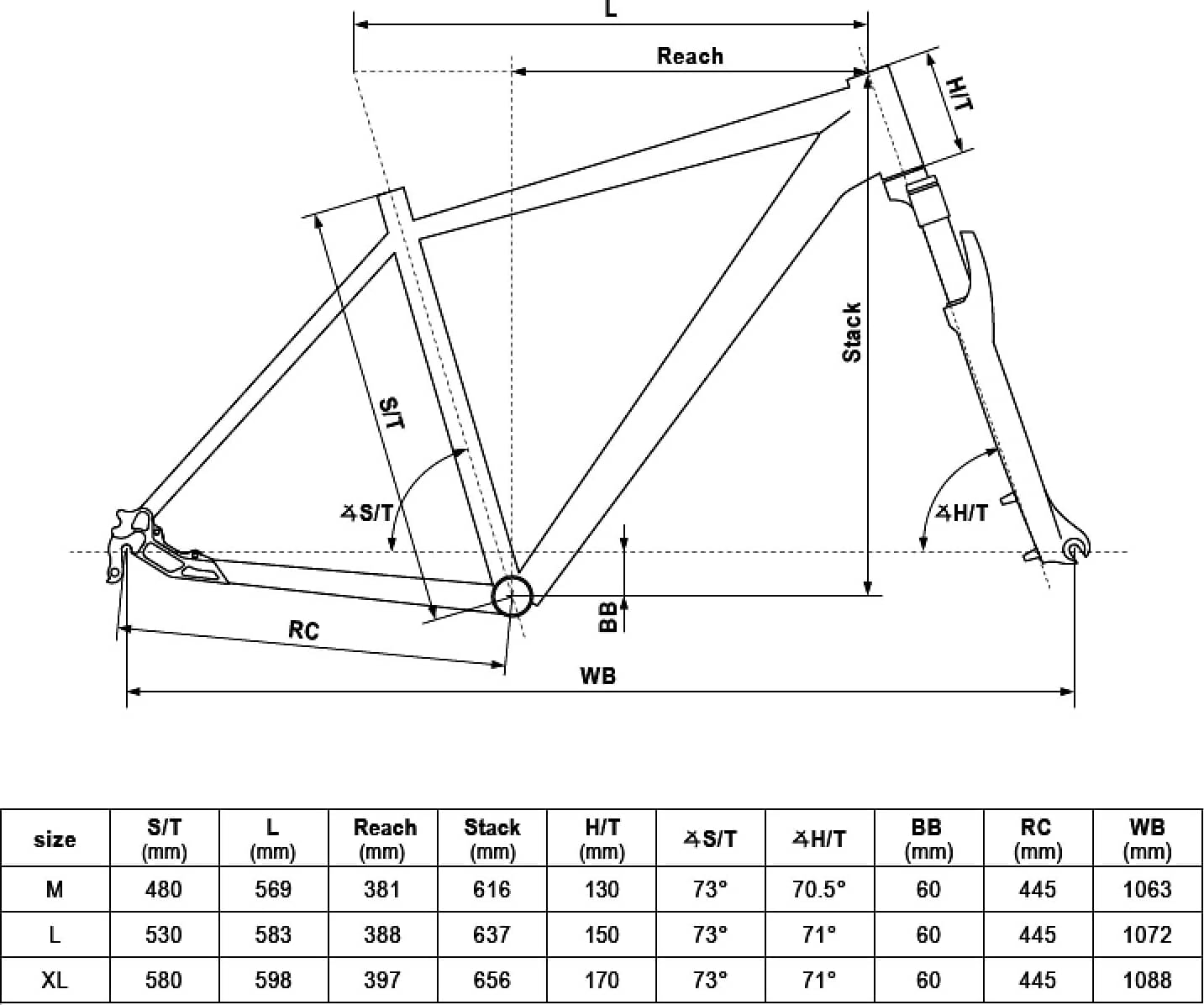

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
