Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crosslite Lady
Suspension Fork
SR SUNTOUR NEX HLO P, 63 mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO TX800 (direct mount)
Front Derailleur
SHIMANO TY710 (31.8 mm)
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (48x38x28T) - length 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (122 mm)
Chain
KMC Z8 (114 links)
Pedals
plastic
Wheels
Front Hub
alloy(32 holes)
Rear Hub
alloy(32 holes)
Rims
KLS Draft 622x21 (32 holes / eyelets)
Spokes
steel
Tires
INNOVA 44-622 (700x42C)
Brakes
Brakes
TEKTRO V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY - diam 28.6 mm / bar bore 25.4 mm / 30° / length 90 mm
Handlebar
alloy RiseBar - diam 25.4 mm / width 640 mm
Grips
KLS Token 2Density
Seat
Saddle
KLS ComfortLine
Seatpost
KALLOY - diam 27.2 mm / length 350 mm
Fit data

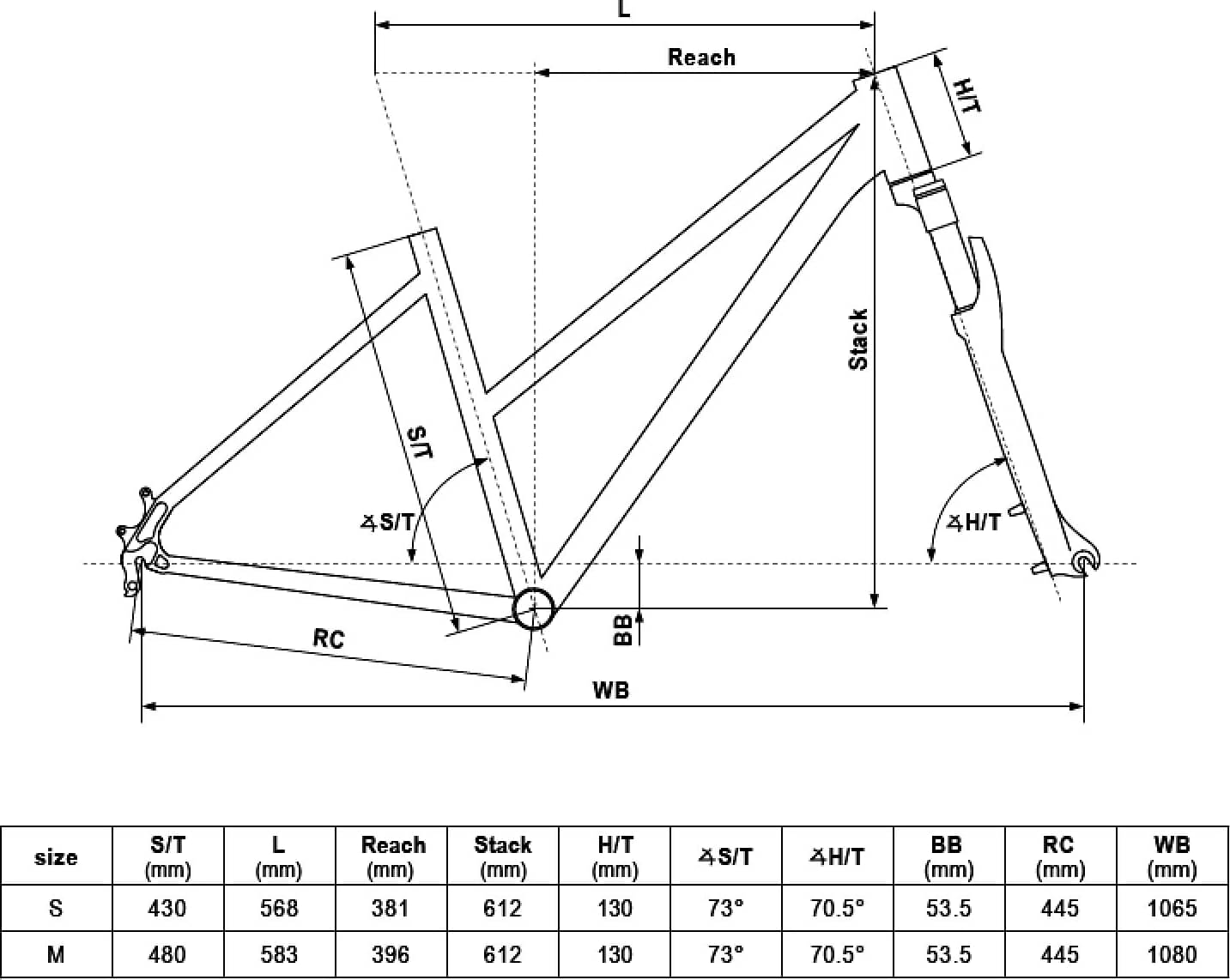

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
