Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, microSHIFT Marvo -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crosslite Lady
Suspension Fork
SR SUNTOUR NEX DS, 63 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Front Derailleur
SHIMANO TY601 (31.8 mm)
Shift Levers
microSHIFT Marvo M859 Xpress Shifter
Cassette
SHIMANO CS-HG200-9 (11-34T)
Crank
SHIMANO TY301 (48x38x28T) - length 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (122 mm)
Chain
KMC X9 (114 links)
Pedals
plastic
Wheels
Front Hub
KLS Firework Disc (32 holes)
Rear Hub
KLS Firework Disc (32 holes)
Rims
KLS Draft Disc 622x23 (32 holes)
Spokes
stainless steel
Tires
INNOVA 44-622 (700x42C)
Brakes
Brakes
Mechanical Disc
Brake Levers
APSE
Cockpit
Stem
KLS CRX 70 adjustable - diam 28.6 mm / bar bore 31.8 mm / length 95 mm
Handlebar
KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm
Grips
KLS Token 2Density
Seat
Saddle
KLS ComfortLine
Seatpost
KALLOY - diam 27.2 mm / length 350 mm
Fit data

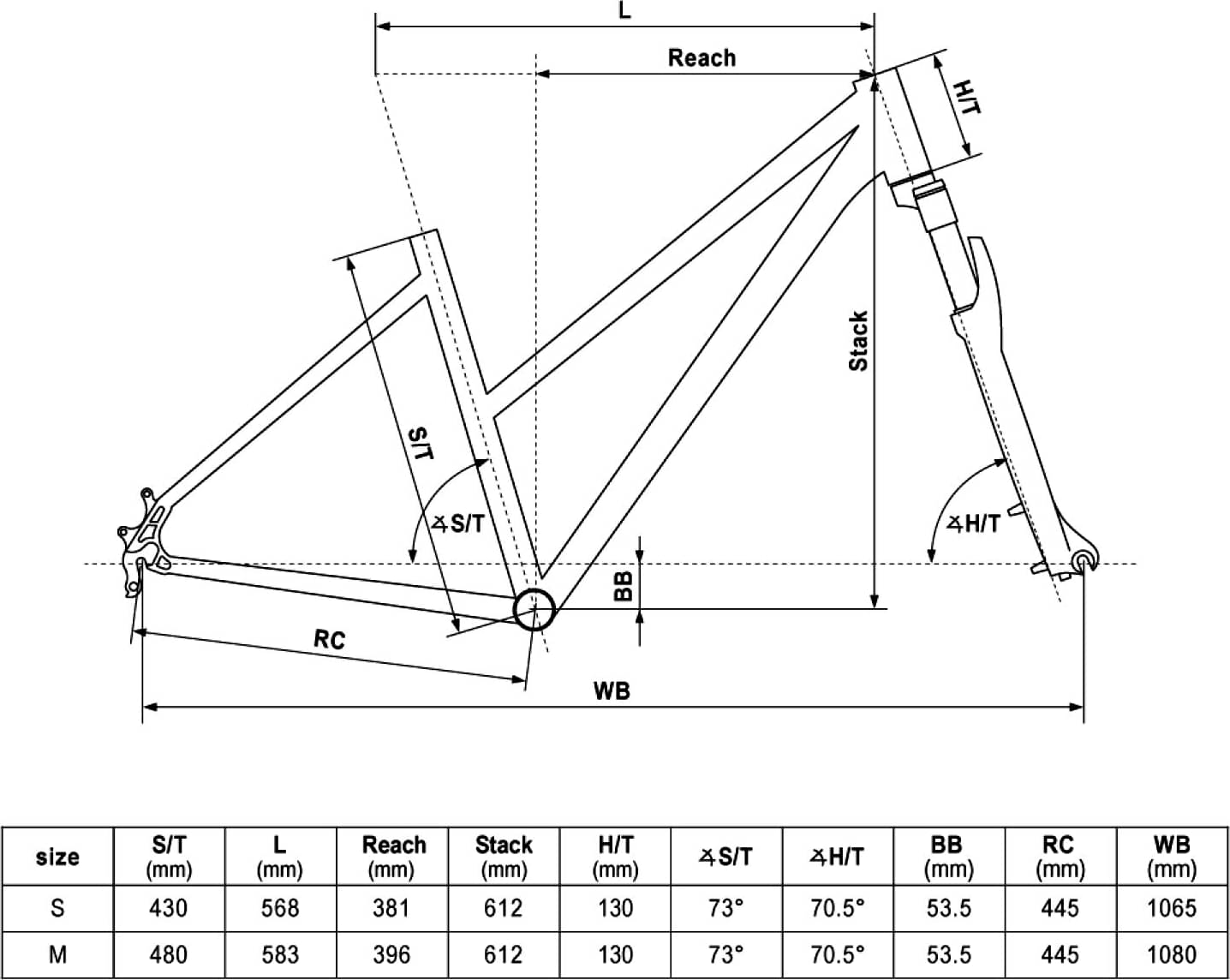

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
