Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile Lady - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR M3010, 50 mm, coil spring (threaded steerer)
Drivetrain
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (48x38x28T) - length 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (120 mm)
Chain
KMC Z8 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rims
KLS Draft 622x21 (32 holes / eyelets)
Spokes
steel
Tires
INNOVA 42-622 (700x42C)
Brakes
Brakes
APSE V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY adjustable - diam 25.4 mm / bar bore 25.4 mm / length 90 mm (S), 100 mm (M)
Handlebar
steel RiseBar - diam 25.4 mm / rise 35 mm / width 630 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
KLS ComfortLine
Seatpost
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)

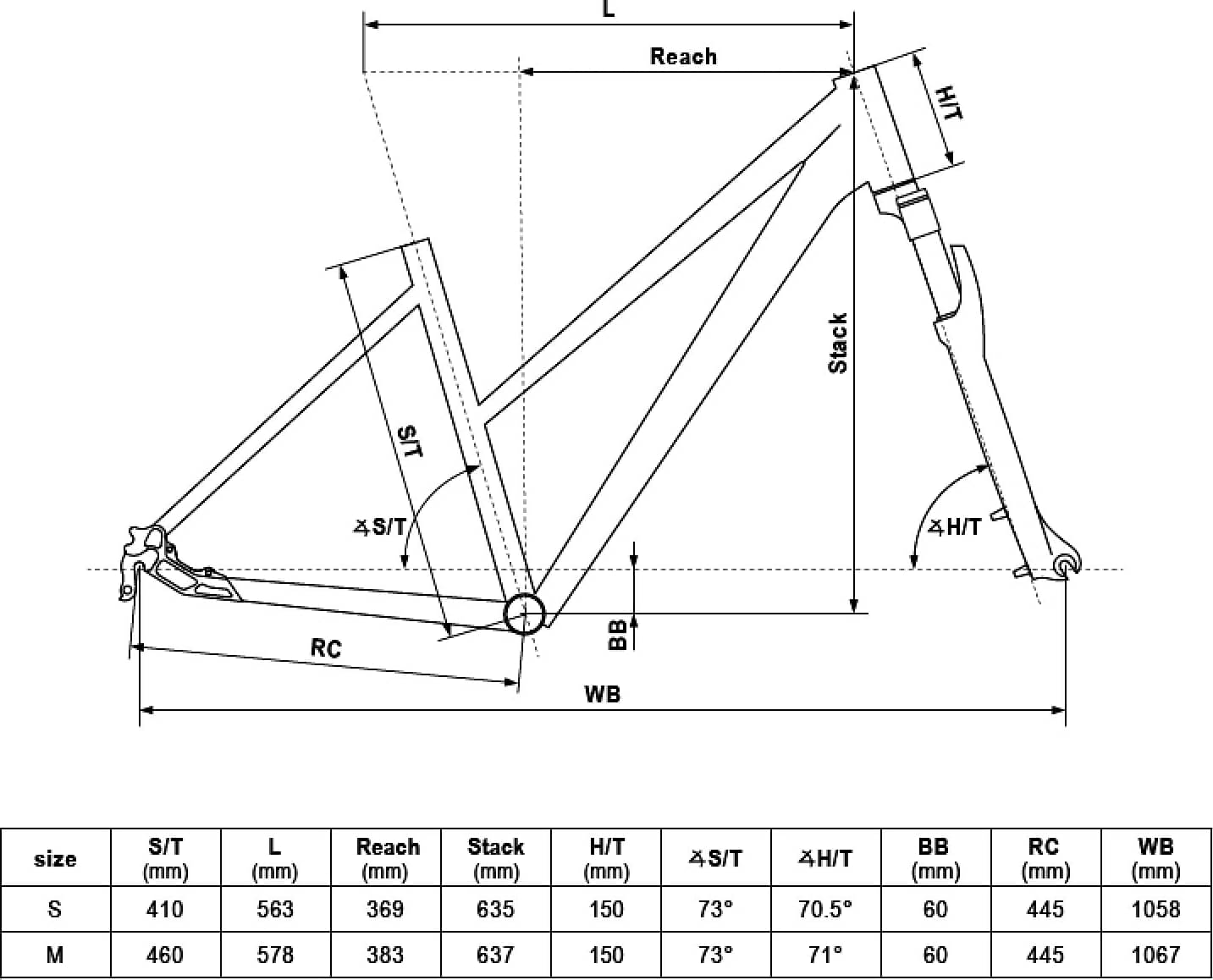

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
