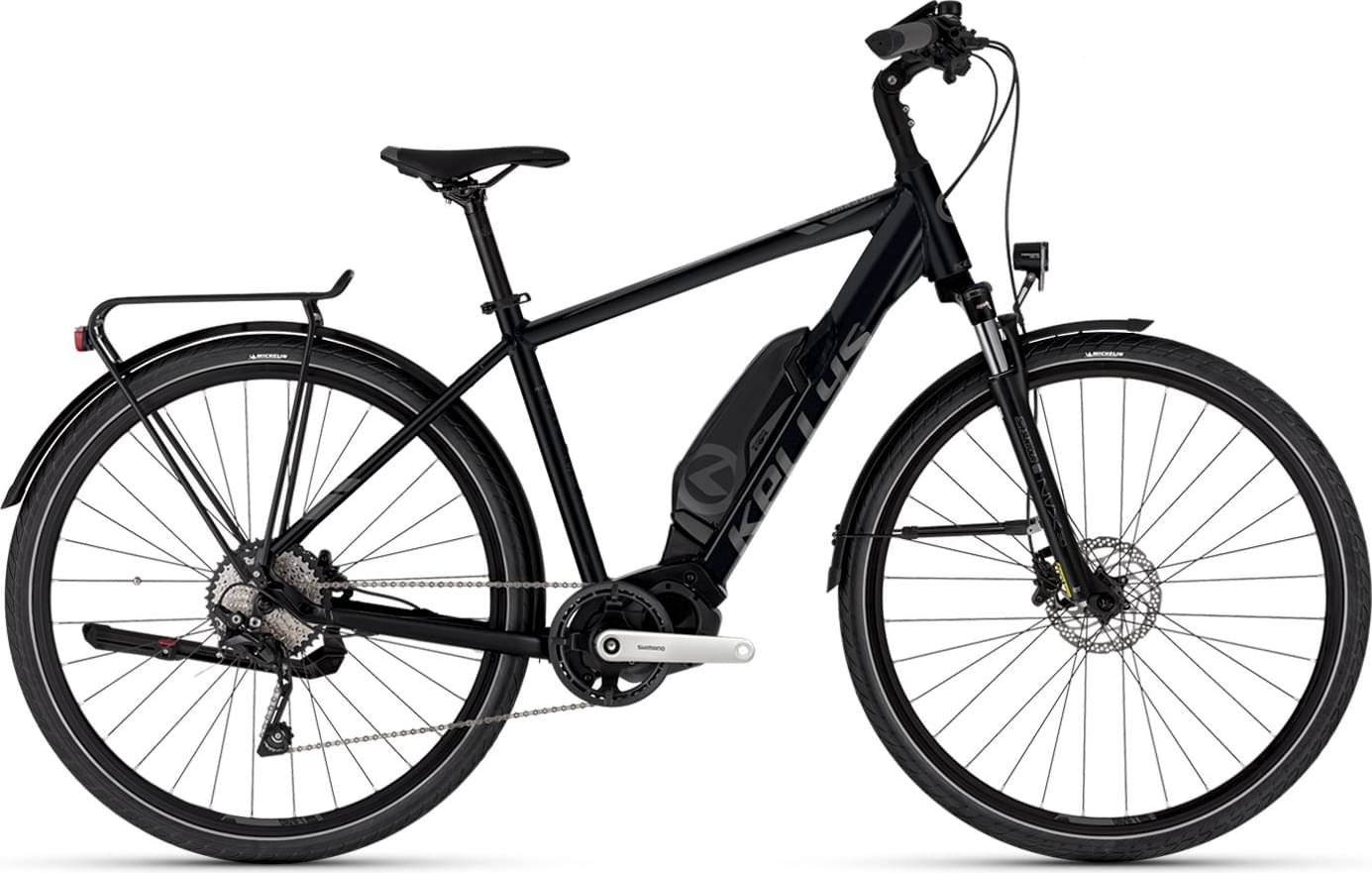

Kellys E-CARSON 10 SH 630 Wh 2025
2025 E-bike
Estimate price |
2,326$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME Tour Profile Aluminium alloy, semi-integrated battery, tapered HT, integrated kickstand mount
Suspension Fork
SR SUNTOUR NVX 30 NLO DS (29), 80 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 or SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Cues SL-U4000-9 or SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-9 (11-41T) or SHIMANO CS-HG201-9 (11-36T)
Crank
SHIMANO E5000 (38T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
IMPAC Bigpac 55-622 (28x2.15) TwinSkin or KENDA Kwick Nine (29x2.0) - ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
Handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36 V
Battery
SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah
Fit data

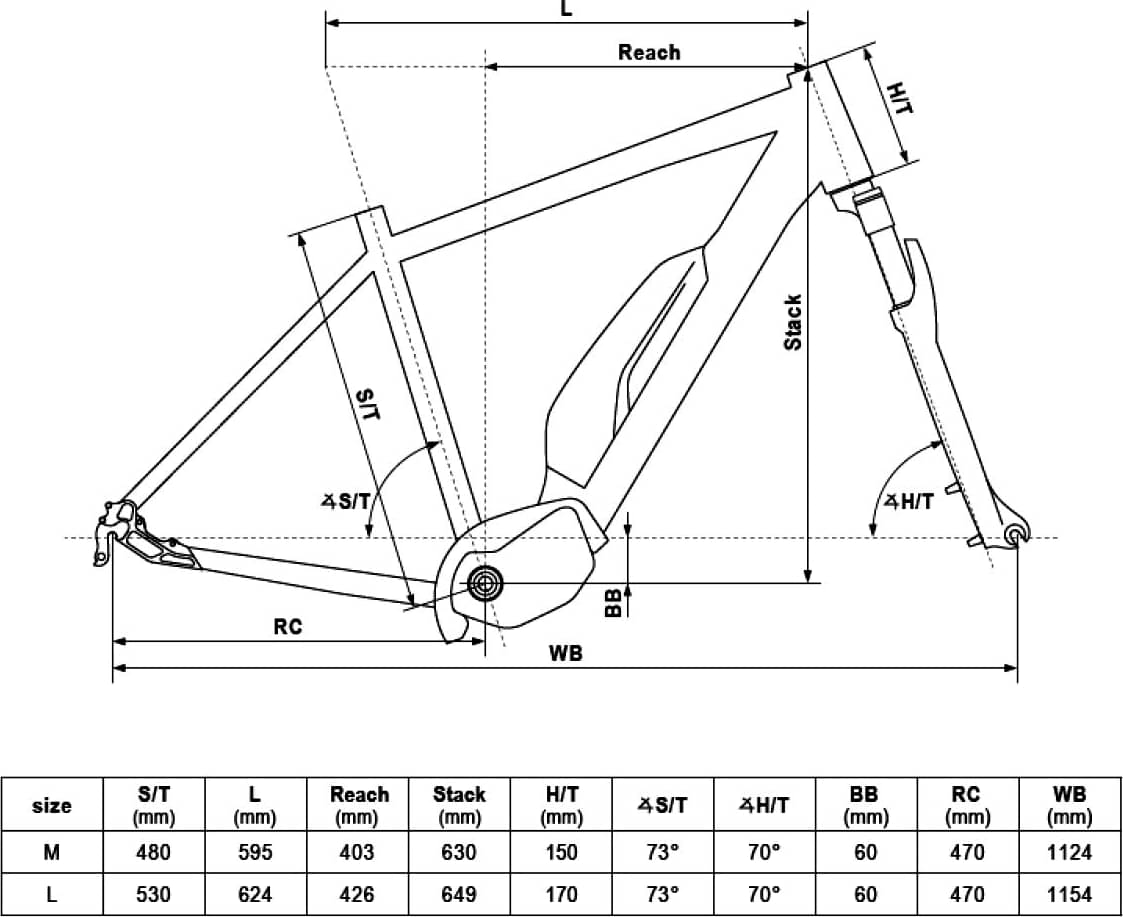

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
