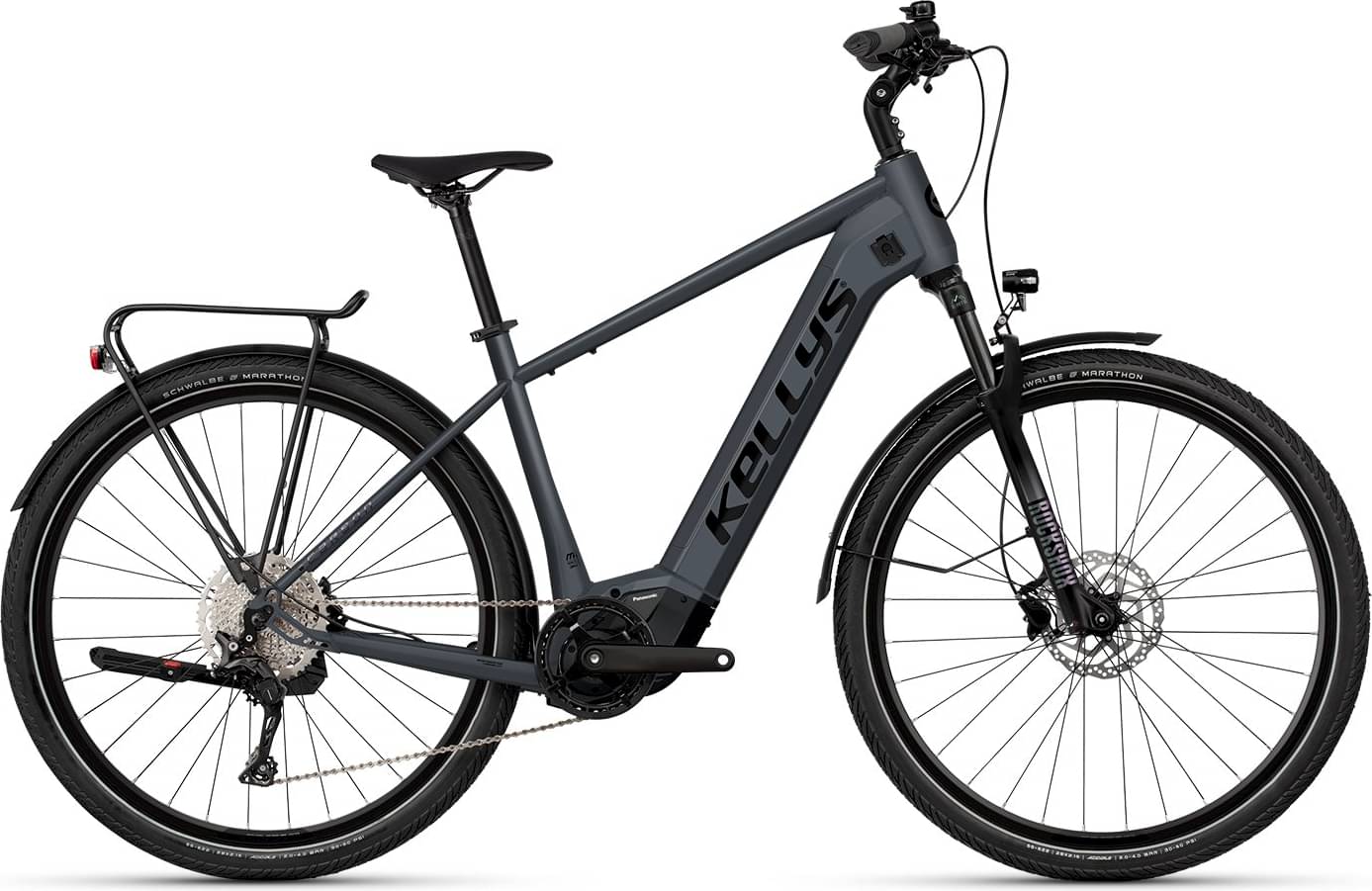

Kellys E-CARSON 70 P GRAPHITE BOREALIS 725Wh 2025
2025 E-bike
Estimate price |
4,187$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset XT -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
Suspension Fork
ROCK SHOX Recon Silver RL (29") Boost, 100 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8130 (direct mount)
Shift Levers
SHIMANO Deore XT SL-M8130-11 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG400-11 (11-45T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TC500-B / Alivio M4050 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TC500-B / Alivio M4050 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x23 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Marathon Almotion Performance 55-622 (28"x2.15) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Lookin Visual Royalgel
Seatpost
KLS Active - diam 30.9 mm / length 350 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by Kellys-BMZ
Fit data

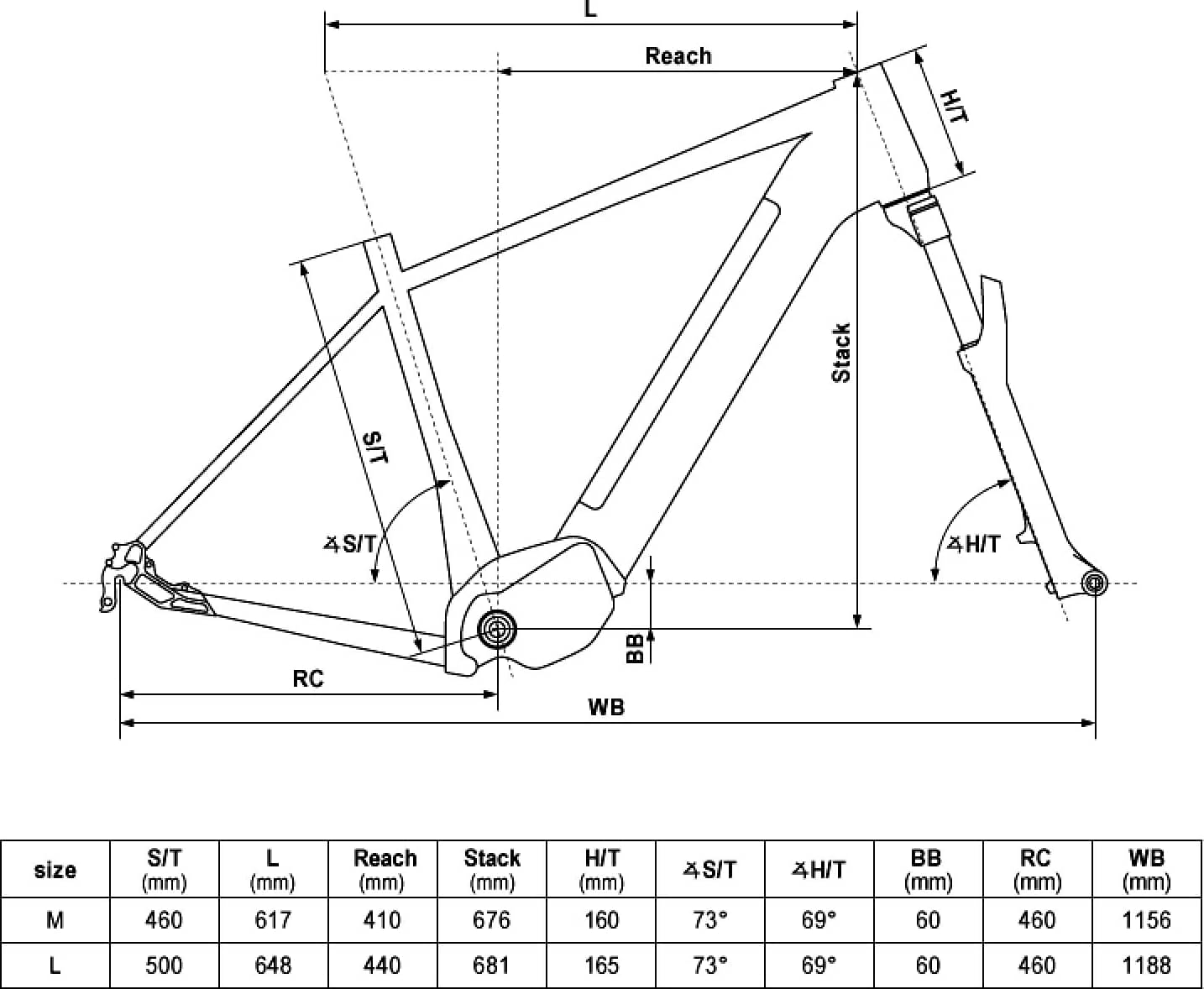

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
