Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork SunTour XCR Air
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8014, 418Wh / capacity 11.6Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS eMARC series - Junior 24 Aluminium alloy, semi-integrated battery
Suspension Fork
SR SUNTOUR XCR Air LO (24), 100mm, air / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG201-9 (11-36T)
Crank
SHIMANO E5010 (38T) - length 165mm
Bottom Bracket
cartridge (118mm)
Chain
KMC X9 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505-8 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505-8 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 507x21 (32 holes)
Spokes
steel black
Tires
IMPAC Ridgepac 54-507 (24x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
PROMAX - diam 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 600mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Junior
Seatpost
KLS Active - diam 30.9mm / length 300mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V
Battery
SHIMANO BT-E8014, 418Wh / capacity 11.6Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 315mm |
|---|---|
| Wheels | 24" |
About this model

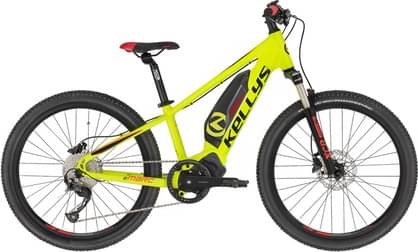

eMARC 24″ 418Wh belongs to the Kellys E Emarc model. Kellys launched 4 e-bikes of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Mountain e-bikes
If you want to purchase a solid Mountain e-bike, it is important to know that the average cost is 1448$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Mountain e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The eMARC 24″ 418Wh comes factory-installed with the SunTour XCR Air fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the eMARC 24″ 418Wh e-bike is equipped with the 24″ aluminum model. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys eMARC 24″ 418Wh is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
