Kellys eMARC SH 24″ 418 Wh 2025
2025 E-bike
Estimate price |
2,326$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR Air
-
Groupset Altus -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8014, 418 Wh / capacity 11.6 Ah -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS eMARC series - Junior 24 Aluminium alloy, semi-integrated battery
Suspension Fork
SR SUNTOUR XCR-Air LO DS (24), 80 mm, air / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG201-9 (11-36T)
Crank
SHIMANO E5010 / SM-CRE50 (38T) - length 165 mm
Chain
KMC X9 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 507x21 (32 holes)
Spokes
steel black
Tires
IMPAC Ridgepac 54-507 (24x2.10) or INNOVA 54-507 (24x1.95)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 31.8 mm / length 40mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 600 mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS DriveLine Junior
Seatpost
KLS Active - diam 30.9 mm / length 300 mm (S - M)
Motor & Battery
Motor
SHIMANO STEPS E5000, 36 V
Battery
SHIMANO BT-E8014, 418 Wh / capacity 11.6 Ah
Fit data

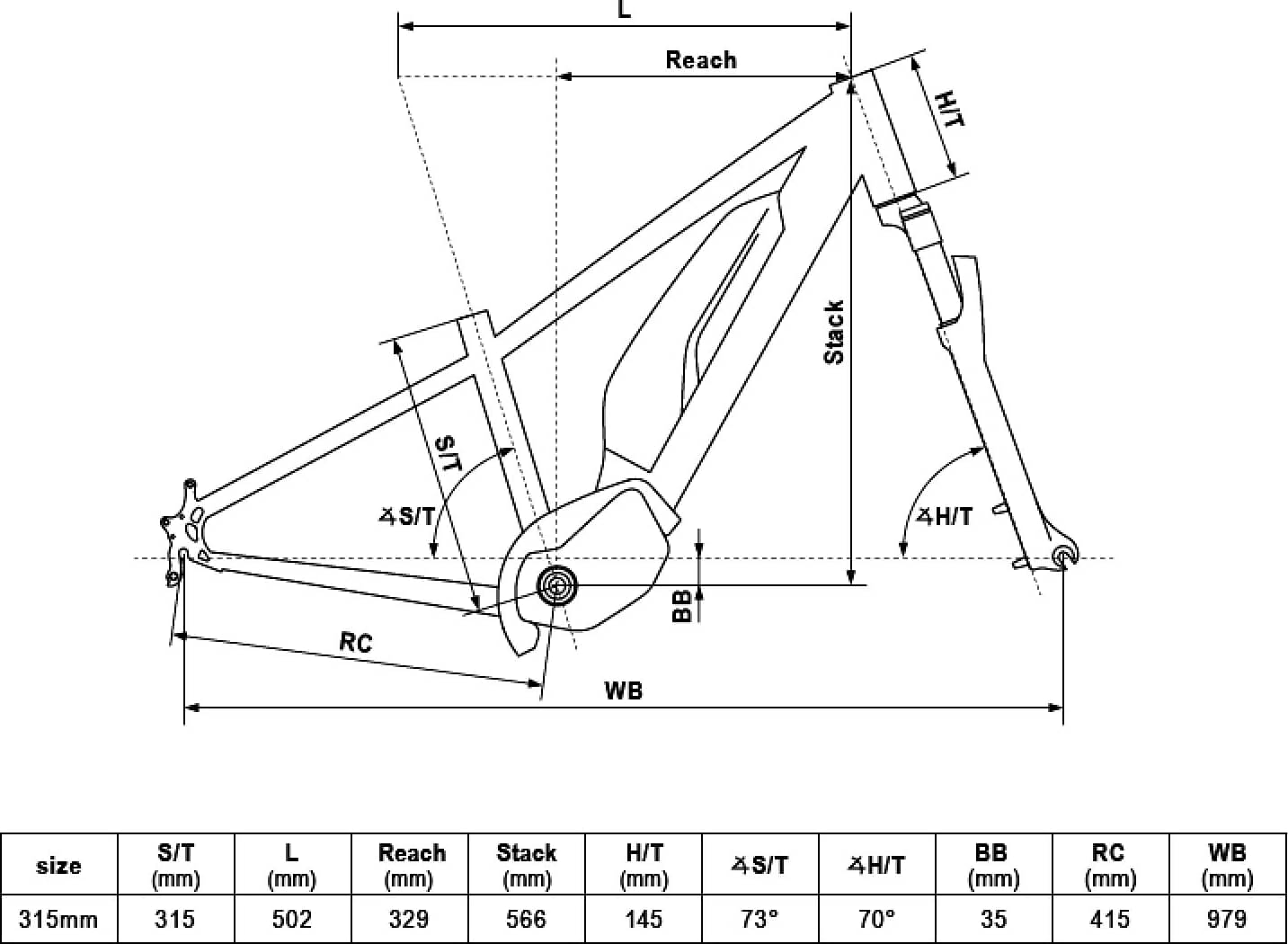

Geometry
Numbers for sizing and ride feel.
| Size | 315 mm |
|---|---|
| Wheels | 24" |
