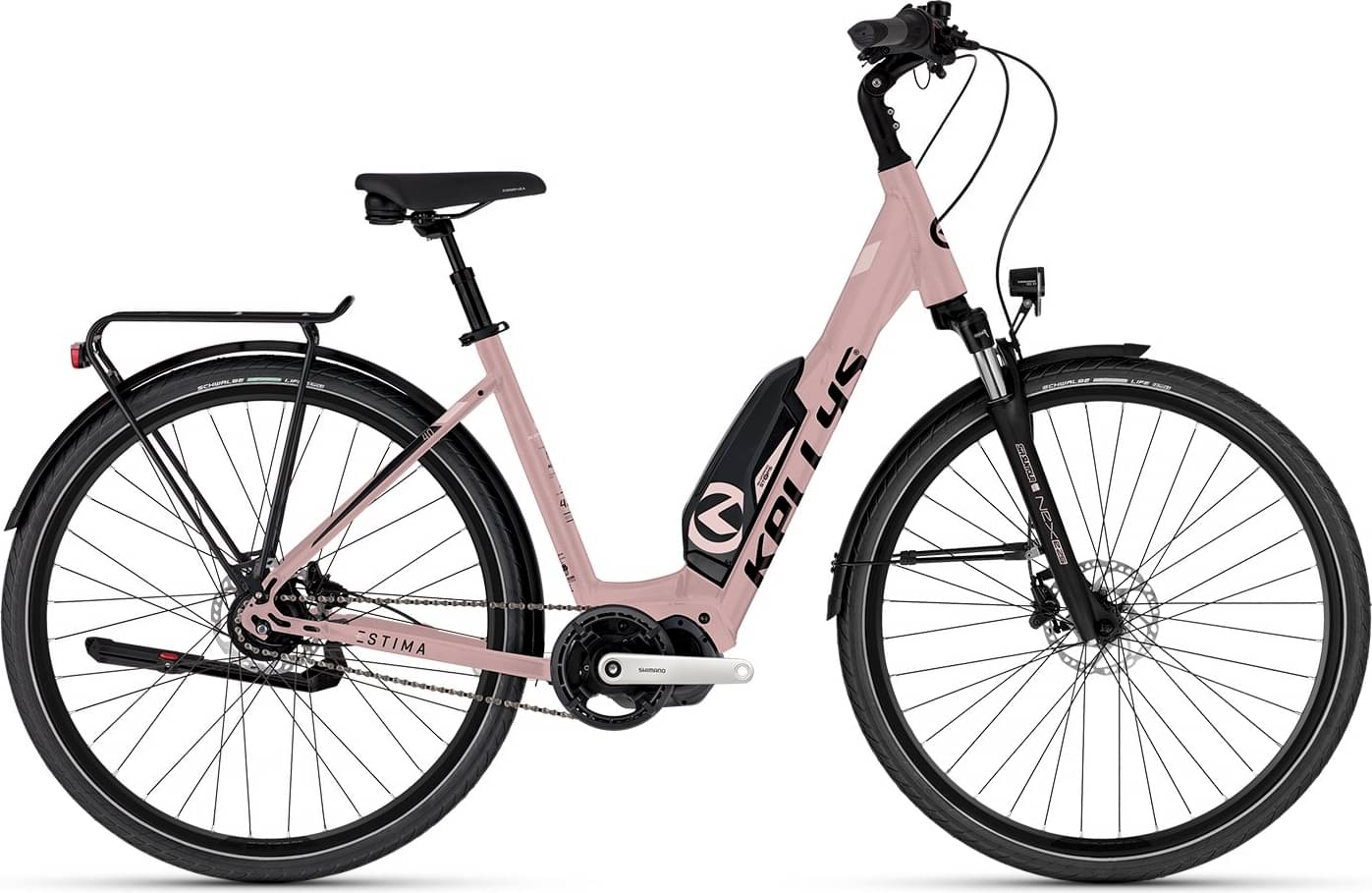

Kellys ESTIMA 40 SH 630 Wh 2025
2025 E-bike
Estimate price |
2,675$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Shimano 50Nm hub-drive -
Battery SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah -
Drivetrain Internally Geared Hub -
Brakes Shimano Coaster
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX-E25 NLO DS, 63 mm, coil spring
Drivetrain
Shift Levers
SHIMANO Nexus SL-C7000-5 Revoshift
Cassette
18T for internal hub
Crank
SHIMANO E5000 (38T) - length 170 mm
Chain
KMC Z1 (102 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 / SHIMANO Nexus C7002-5CD 5-speed Internal Geared Hub, Coaster / Disc brake (32 holes)
Rear Hub
SHIMANO TX505 / SHIMANO Nexus C7002-5CD 5-speed Internal Geared Hub, Coaster / Disc brake (32 holes)
Rims
KLS Draft 23 Disc 622x23 (32 holes)
Spokes
stainless steel black
Tires
KENDA Kwick 45x622 (700x45C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm (S), 105 mm (M)
Handlebar
KALLOY RiseBar - diam 31.8 mm / width 640 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
Motor & Battery
Motor
SHIMANO E5100, 50 Nm, 36 V
Battery
SHIMANO BT-E8016, 630 Wh / capacity 17.5 Ah
Fit data

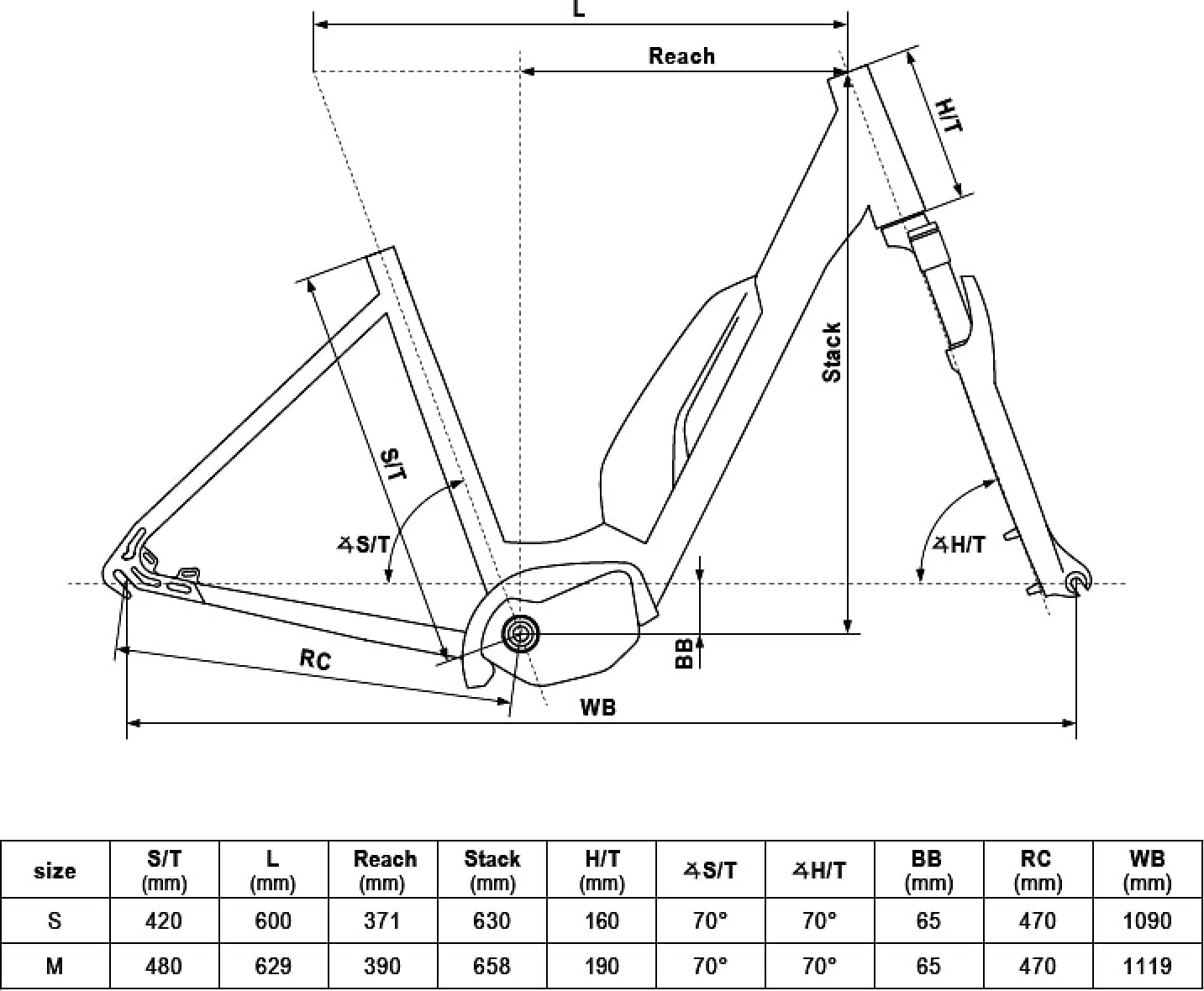

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
