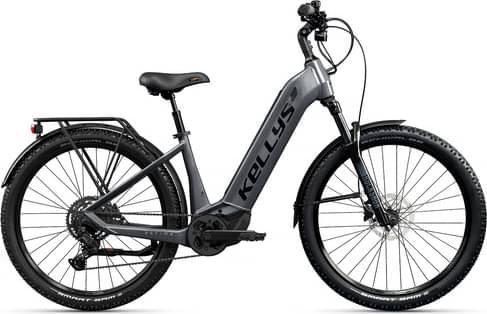

Kellys ESTIMA X40 P 725Wh 2024
2024 E-bike
Estimate price |
4,303$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork RockShox 35 Silver -
Groupset CUES -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS ESTIMA X-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
Suspension Fork
ROCK SHOX 35 Silver TK (27.5") Boost, 100 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues SL-U4000-9 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-9 (11-46T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Valor 3 Disc 584x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Smart Sam Active 60-584 (27.5"x2.35) K-Guard, ReflectiveLine
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY suspension - diam 30.9 mm / length 300 mm (S), 350 mm (M)
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
Fit data

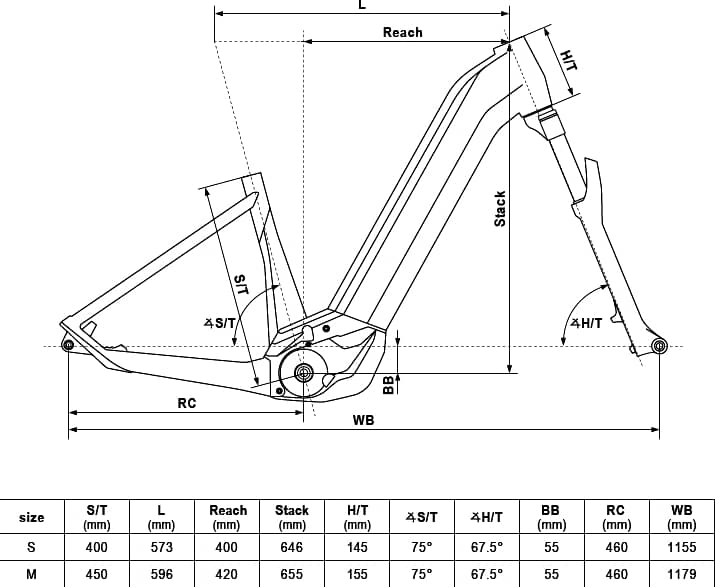

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 650 | 650 |
