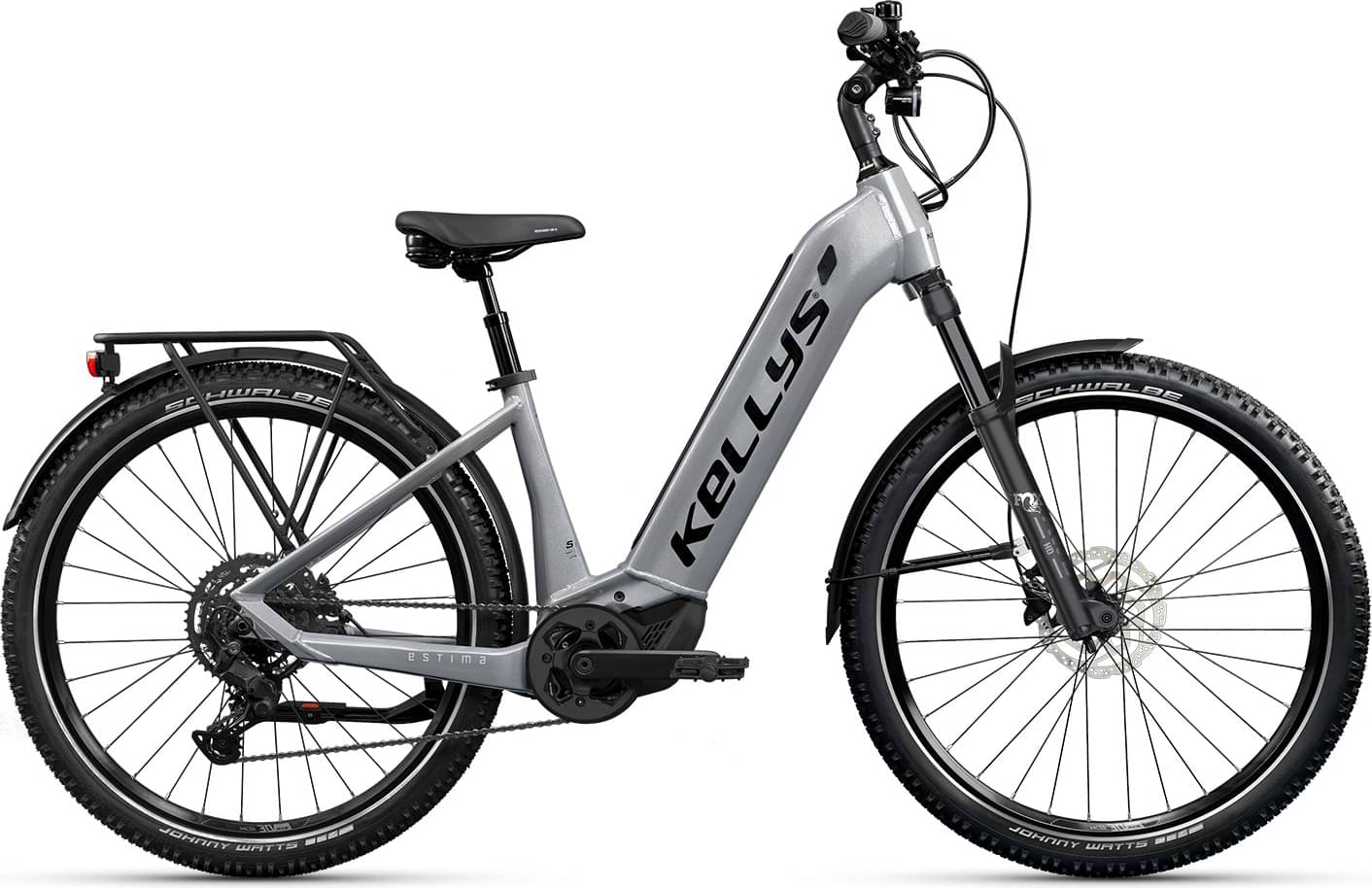

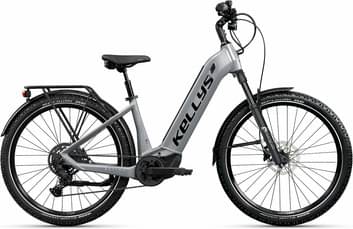

Kellys ESTIMA X70 P 820 Wh 2025
2025 E-bike
Estimate price |
4,420$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Panasonic 95Nm mid-drive -
Battery KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by KELLYS-BMZ -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS ESTIMA series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT
Suspension Fork
FOX AWL (27.5") Boost, 120 mm, EVOL air / RAIL damper / 15QR thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
Shift Levers
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO Linkglide CS-LG600-11 (11-50T)
Crank
MIRANDA Delta (36T) - length 170 mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc 584x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Johnny Watts Performance 65-584 (27.5"x2.60) RaceGuard, ADDIX, ReflectiveLine
Brakes
Brakes
SHIMANO MT420 Hydraulic Disc
Brake Levers
SHIMANO BL-M4100
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 85 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Essenza Relaxed
Seatpost
KS Rage-iS Remote Telescopic - diam 30.9 mm / length 388 mm, travel 125 mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 95 Nm, 36 V
Battery
KELLYS Re-Charge K1 Li-ion internal removable 820 Wh / capacity 23 Ah, co-developed by KELLYS-BMZ
Fit data

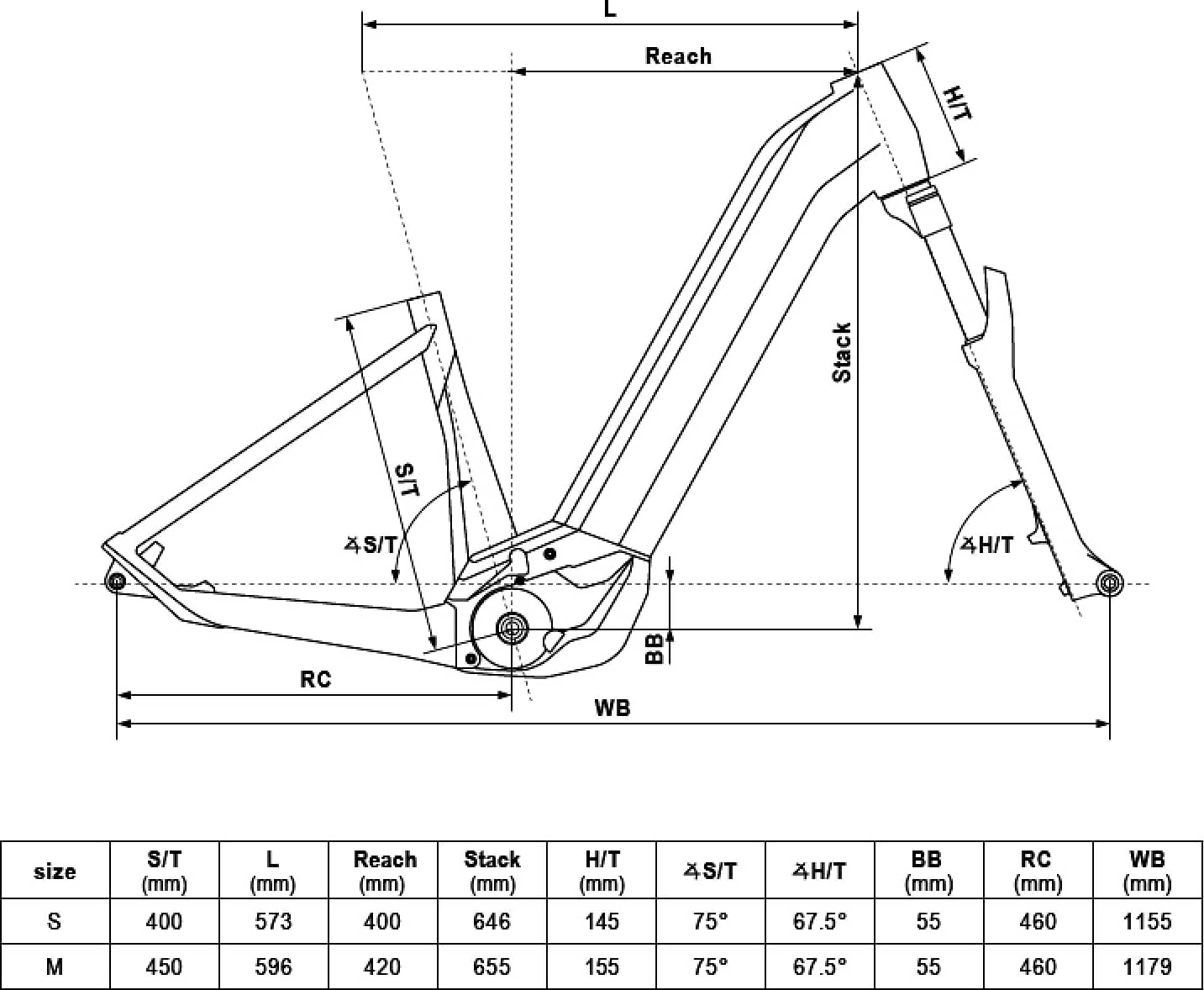

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 27" | 27" |
