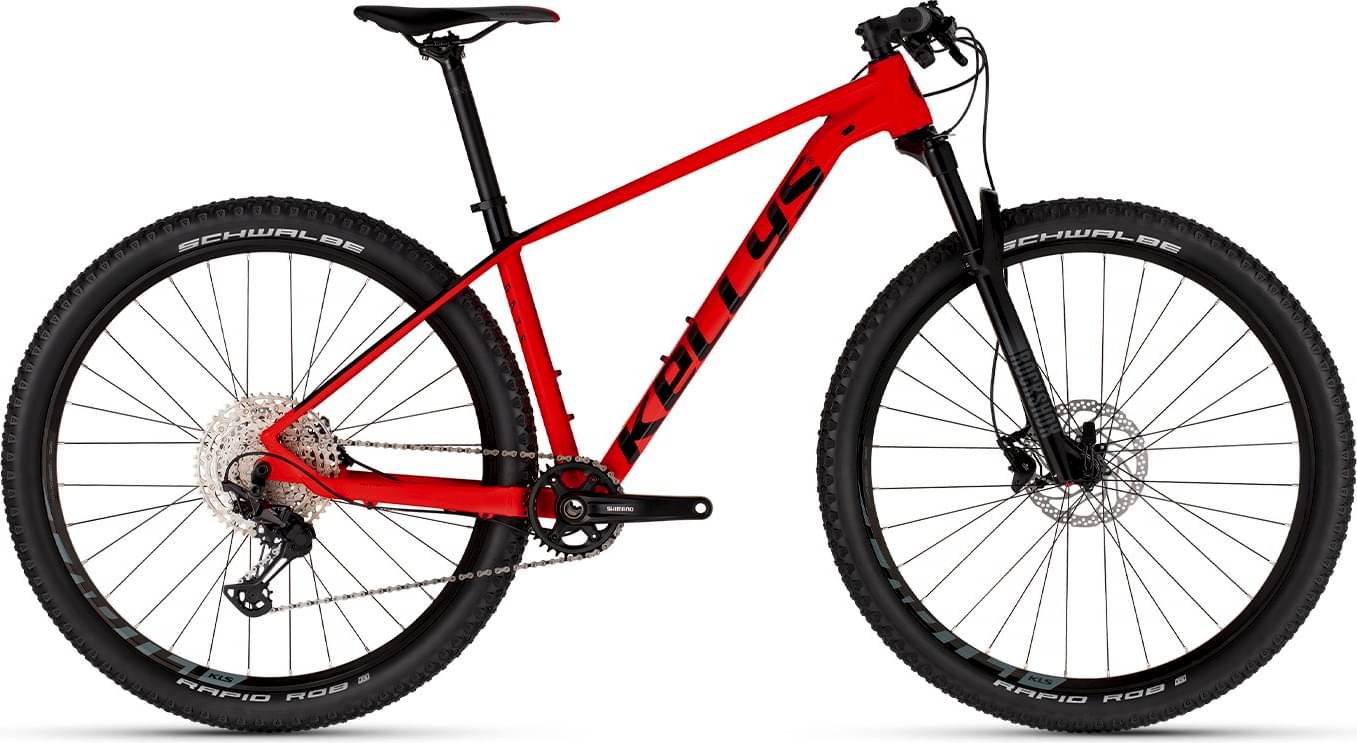

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Recon Silver RL (29) Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO Deore MT510-1 (34T) - length 170 (S), 175 mm (M - L)
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B / MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Rapid Rob 57-622 (29x2.25) K-Guard
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / lenght 80 mm (S - M), 100 mm (L)
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Avenger
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data

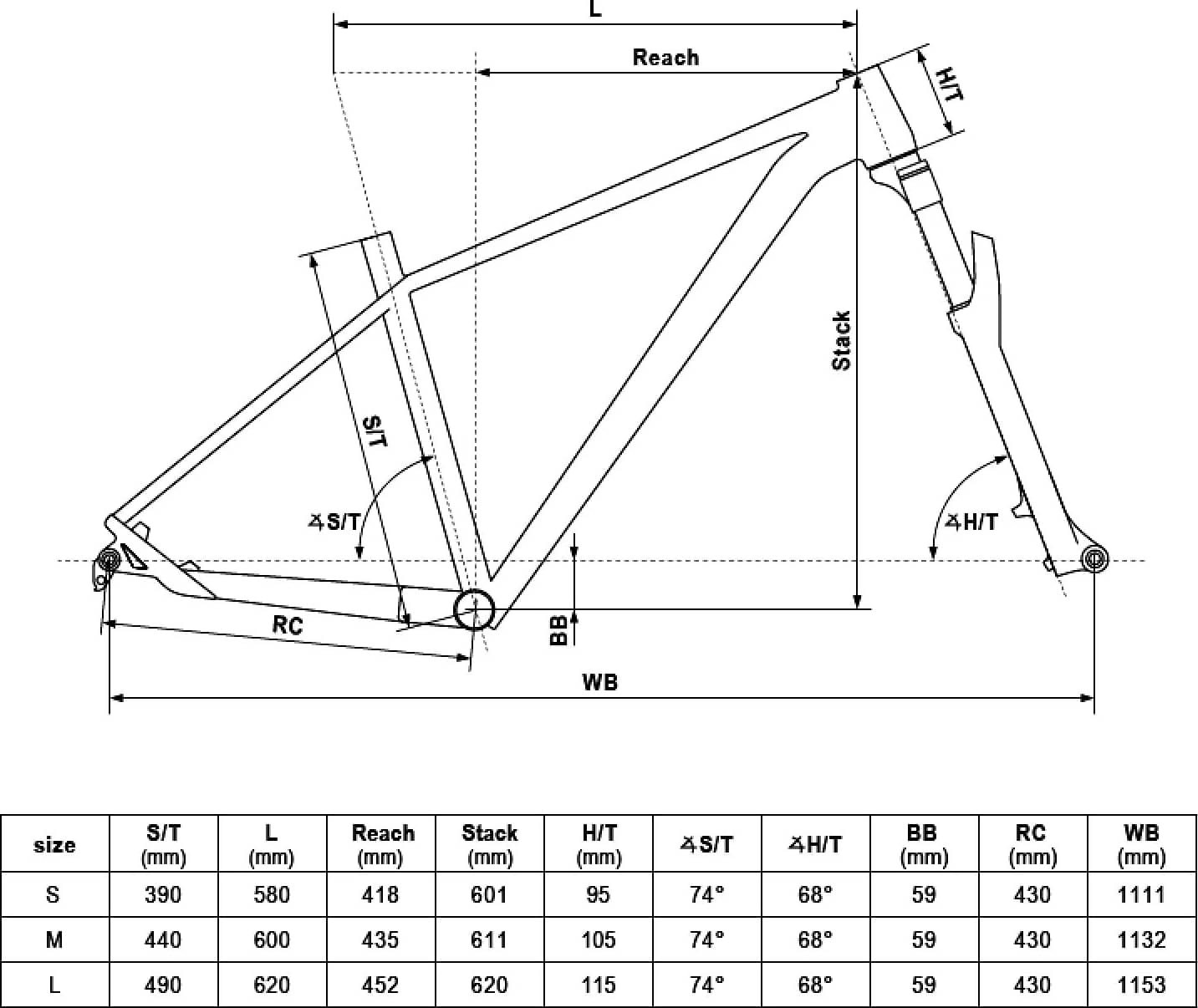

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
