Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 100 mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15 mm thru axle
Drivetrain

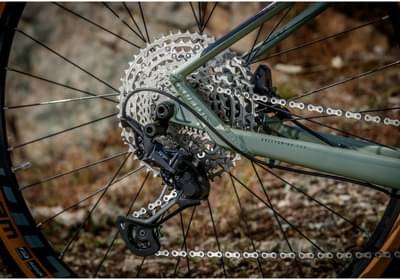

Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 175 mm
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
SAPIM - stainless steel black
Tires
SCHWALBE Smart Sam Performance 57-622 (29x2.25) ADDIX
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100

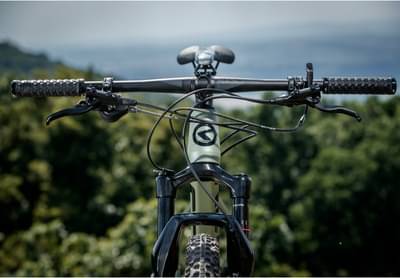

Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 100 mm (L)
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi´zi:k Taiga S-alloy rails
Seatpost
KS e20-i Remote Telescopic - diam 30.9 mm / length 418 mm, travel 125 mm
Fit data

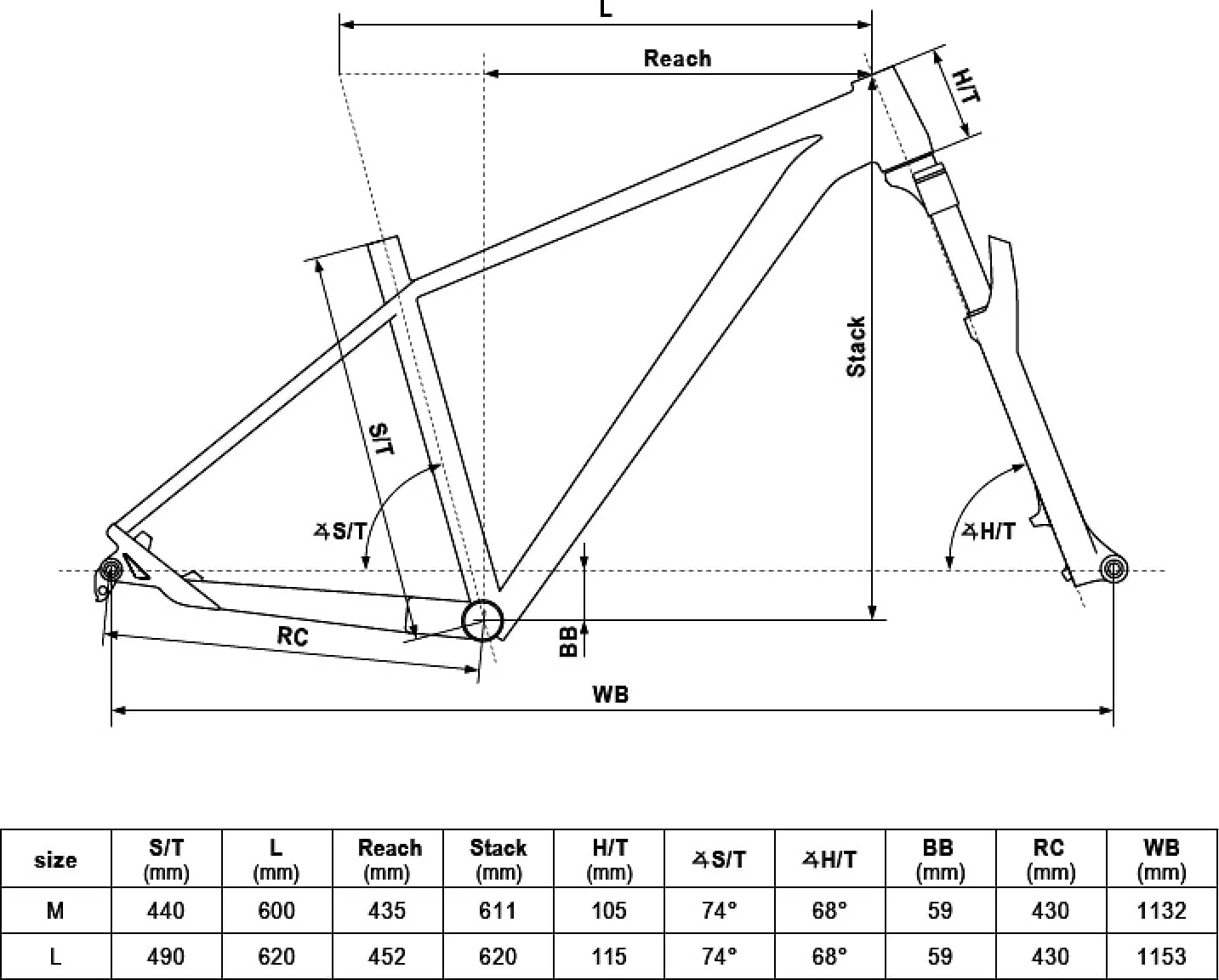

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
