Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox SID
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29", tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Sid 2P (29") Boost, 120 mm, DebonAir+ / Rush RL damper / OneLoc Remote Lockout / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170 mm (S), 175 mm (M - XL)
Bottom Bracket
SHIMANO SM-BB52
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO Deore TC-500-MS-B Disc Center Lock (28 holes)
Rear Hub
SHIMANO Deore TC-500-MS-B Disc Center Lock (28 holes)
Rims
KLS Segador 25 SL Disc 622x25 (28 holes)
Spokes
SAPIM - stainless steel black
Tires
SCHWALBE Smart Sam Performance 57-622 (29"x2.25) ADDIX, Bronze Sidewall
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 5° / length 60 mm
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 740 mm
Grips
KLS Poison OneLockon
Seat
Saddle
KLS Avenger II
Seatpost
KS e20-i Remote Telescopic - diam 30.9 mm / length 418 mm, travel 125 mm
Fit data

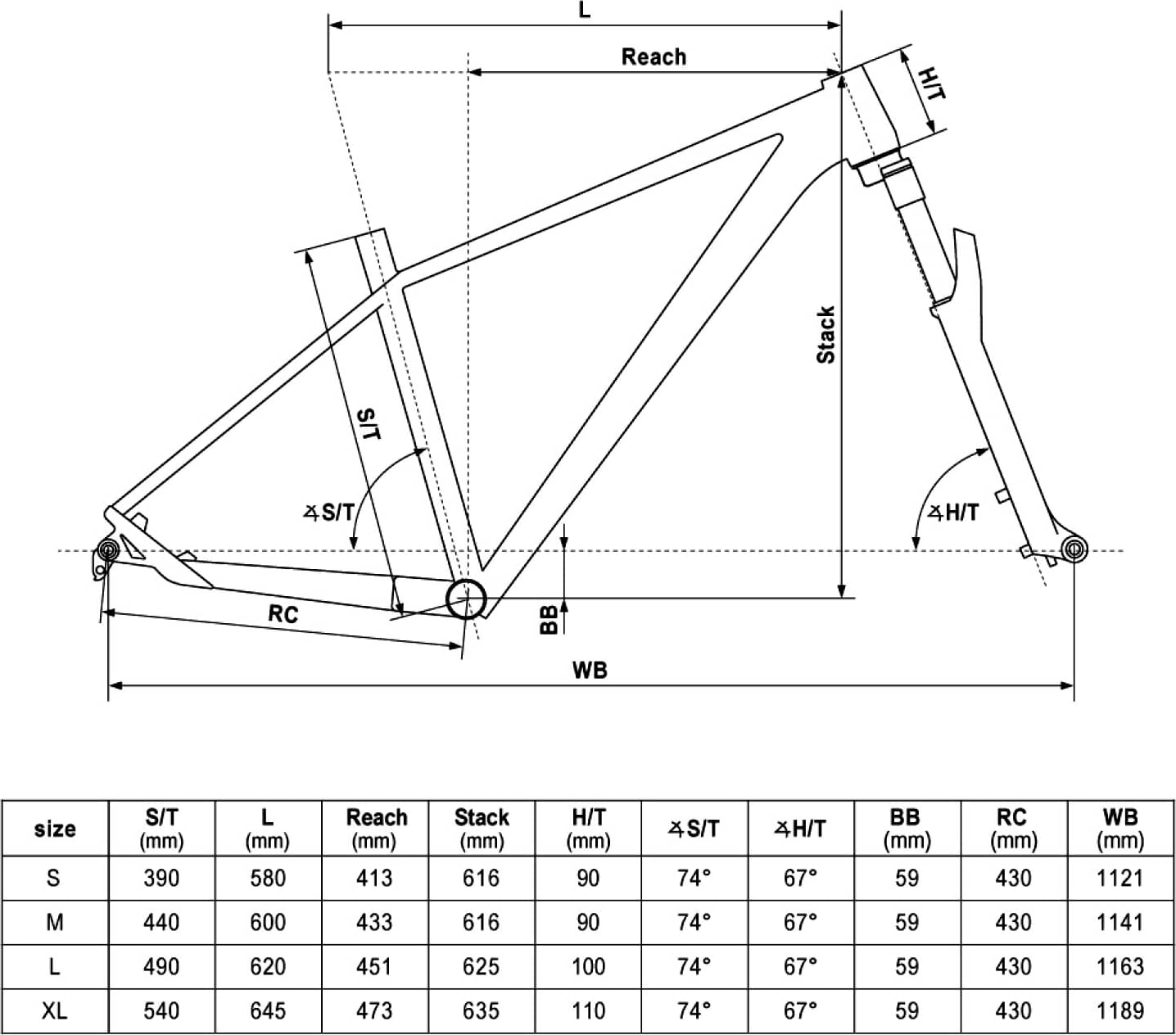

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
