Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Recon Silver RL (29) Boost, 140 mm, Solo Air / Motion Control / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore M6100 (direct mount)
Shift Levers
SHIMANO Deore M6100-R Rapidfire Plus
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO Deore MT510-1 (32T) - length 175 mm
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X12 (114 links)
Pedals
KLS Flat - plastic platform
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Wild AM Competition Line 60-622 (29"x2.35) Tubeless Ready or KENDA Amrak 61-622 (29"x2.40)
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 25 mm / šírka 760 mm
Grips
KLS Poison
Seat
Saddle
KLS Avenger
Seatpost
KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm
Fit data

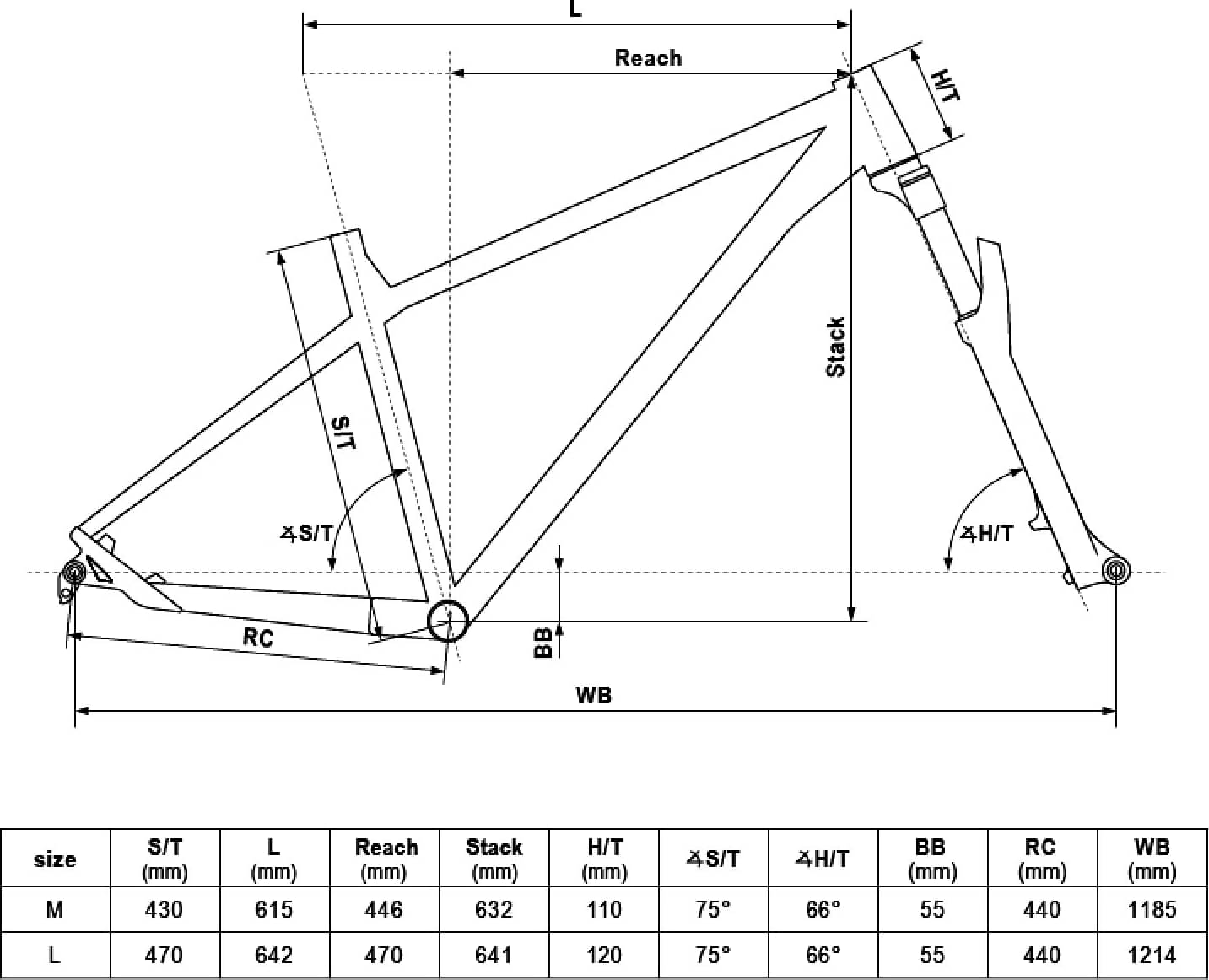

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
