Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Marzocchi Bomber Z2
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano SLX Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic Trail 29, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
MARZOCCHI Bomber Z2 (29) Boost, 140 mm, Float / Rail / 15QR thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO SLX M7100-1 Hollowtech II (32T) - length 175 mm
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X12 (114 links)
Pedals
KLS Flat - plastic platform
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding
Brakes
Brakes
SHIMANO SLX M7100 Hydraulic Disc
Brake Levers
SHIMANO SLX BL-M7100
Cockpit
Stem
RACE FACE Aeffect R 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 50 mm
Handlebar
RACE FACE Ride 35 RiseBar - diam 35 mm / rise 20 mm / width 760 mm
Grips
KLS Poison
Seat
Saddle
fi´zi:k Taiga S-alloy rails
Seatpost
KS Rage-i Remote Telescopic - diam 30.9 mm / length 442 mm, travel 150 mm
Fit data

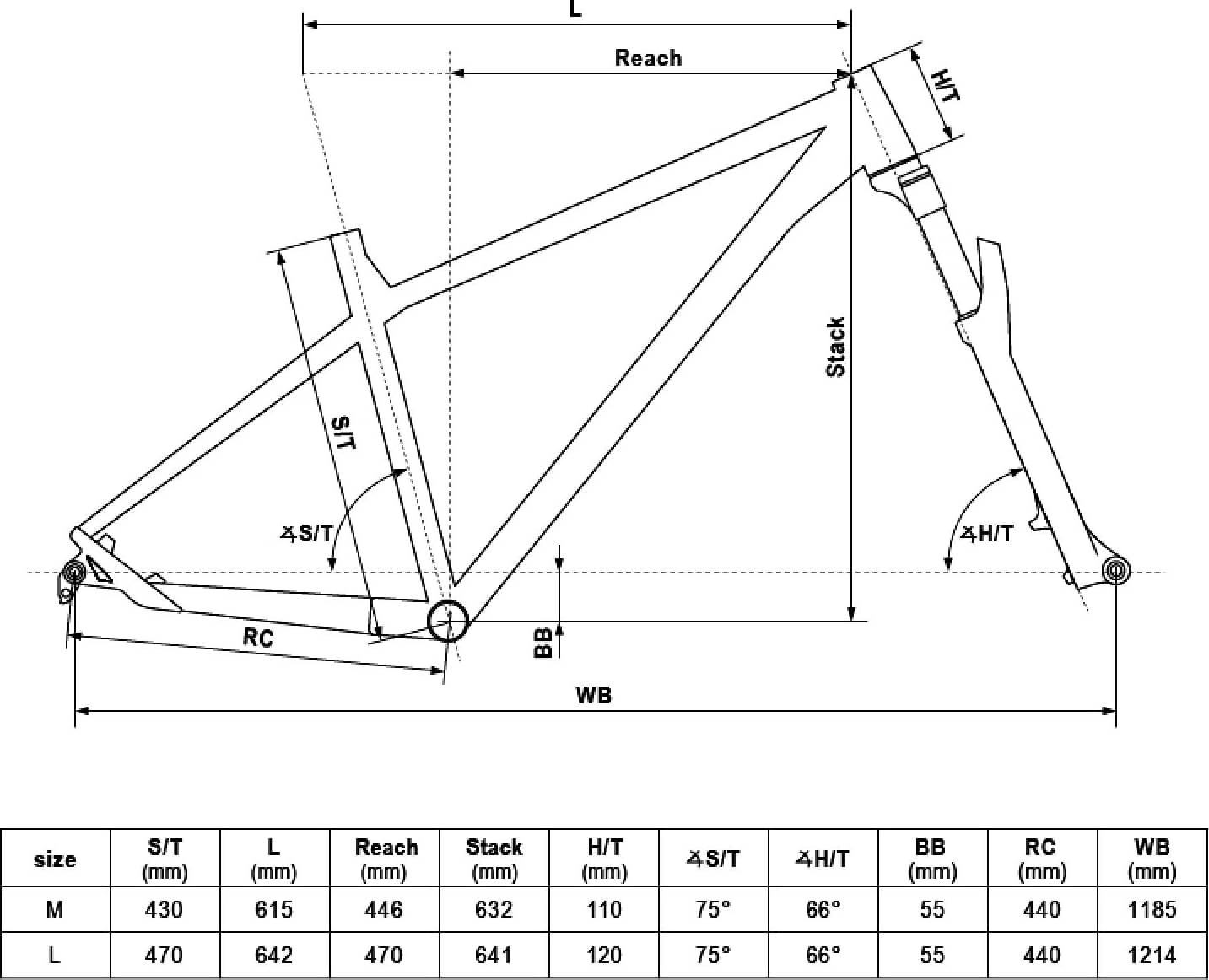

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
