Bike details
Overview
Key information split into simple groups.

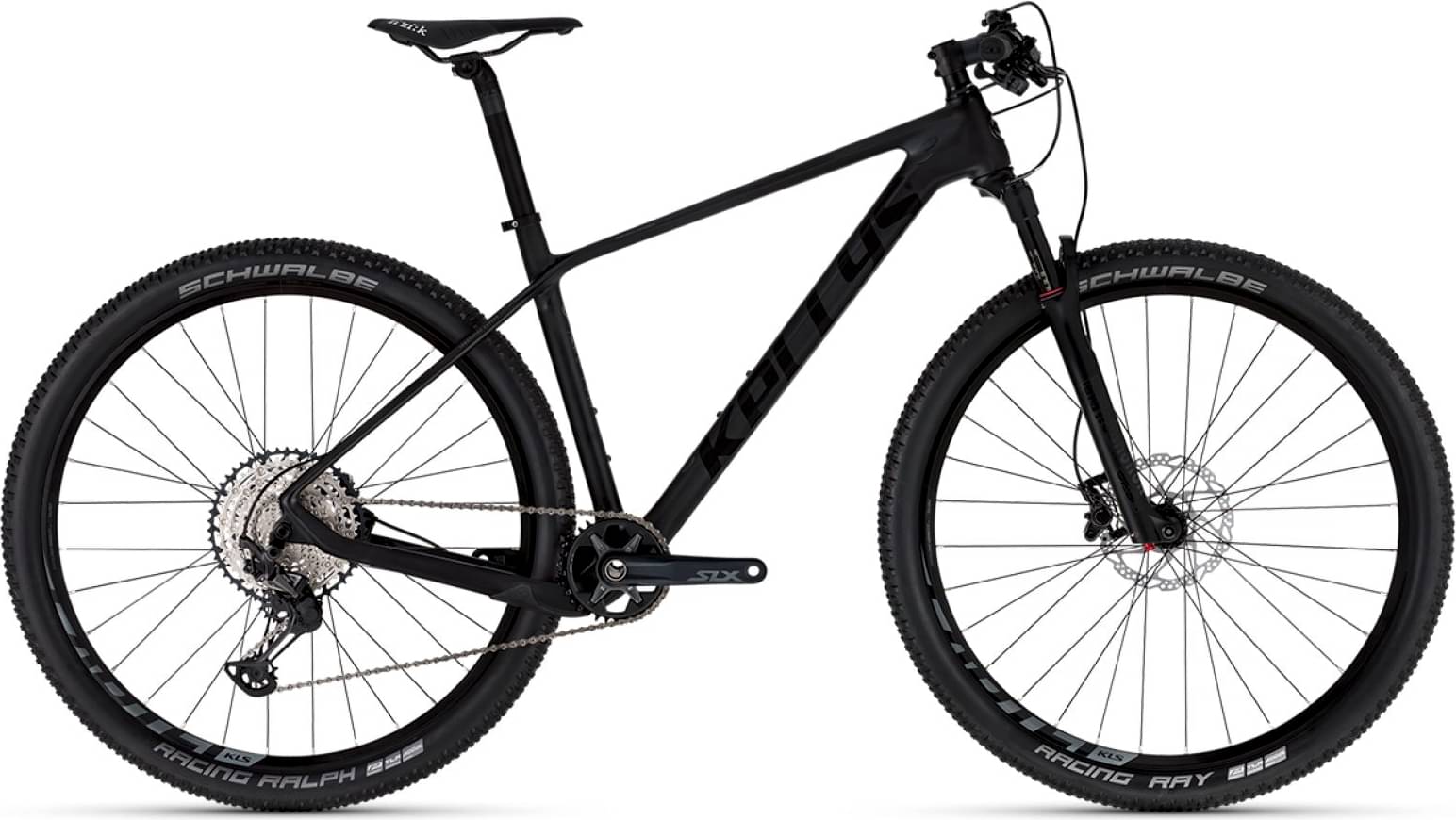

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS iCAD Carbon Pro 29", tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Reba RL (29") Boost, 100 mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Stealth 15 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-R Rapidfire Plus
Cassette
SHIMANO CS-M7100-12 (10-51T)
Crank
SHIMANO SLX M7100-1 Hollowtech II (34T) - length 175 mm
Bottom Bracket
SHIMANO Press-Fit BB-MT500-PA
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
SAPIM - stainless steel black
Tires
Front: SCHWALBE Racing Ray Performance 57-622 (29"x2.25) folding, Rear: SCHWALBE Racing Ralph Performance 57-622 (29"x2.25) folding
Brakes
Brakes
SHIMANO Deore M6000 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M6000
Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 80 mm (M), 100 mm (L)
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 720 mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi´zi:k Antares R7 S-alloy rails
Seatpost
KLS Advanced - diam 30.9 mm / length 400 mm
Fit data

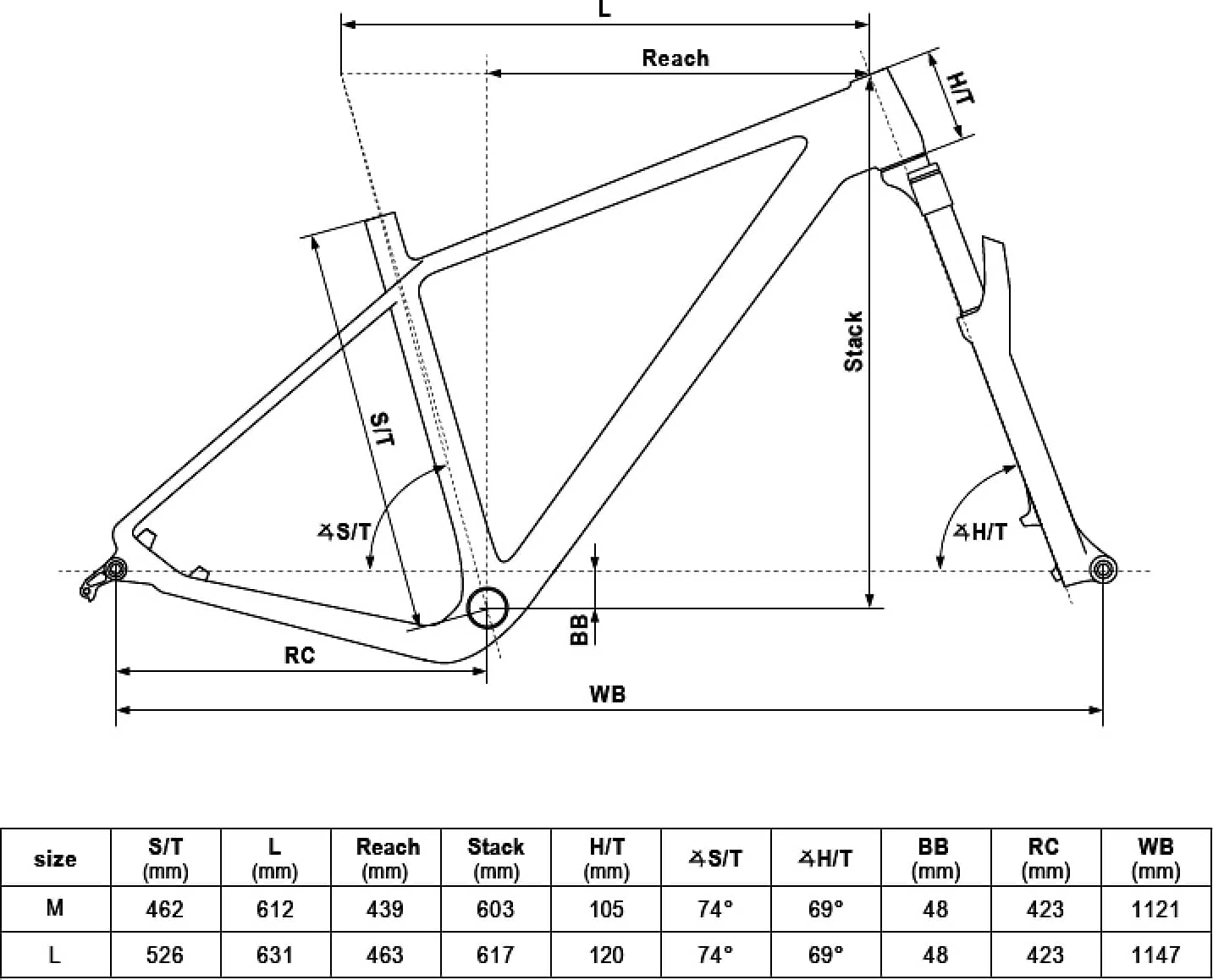

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
