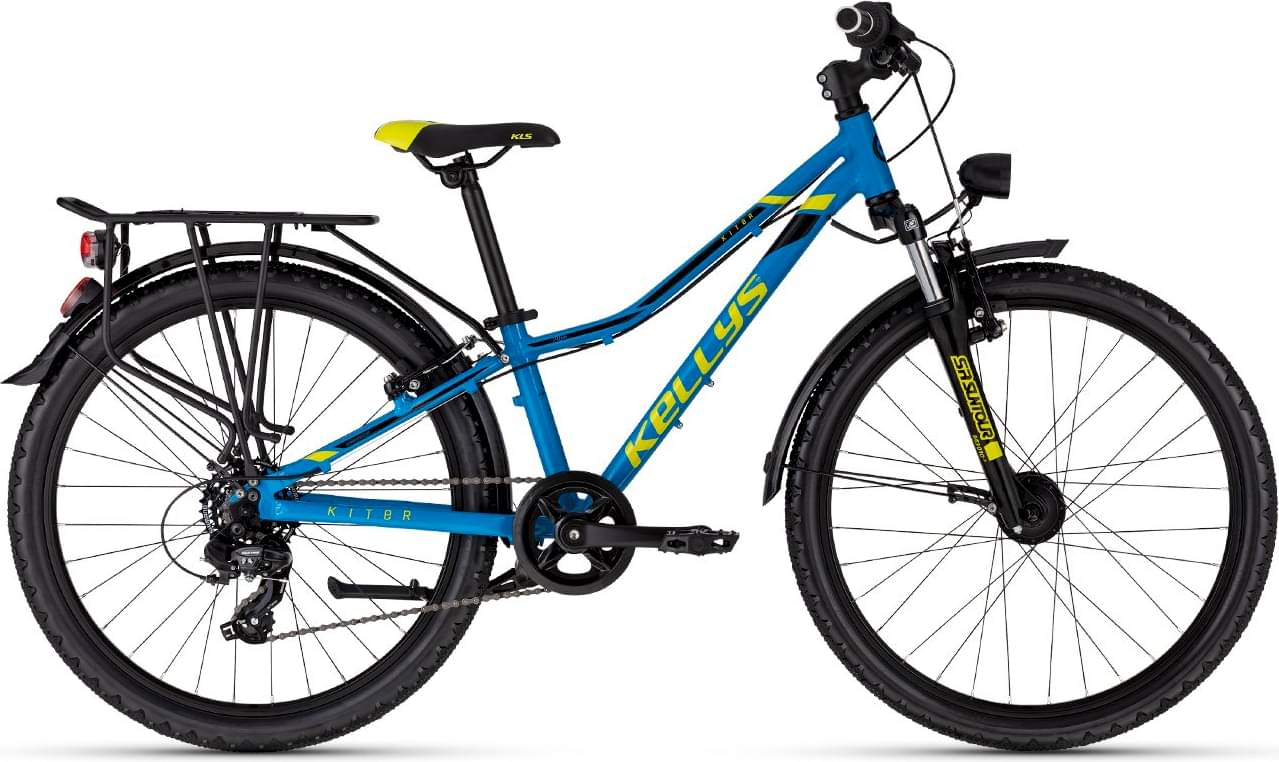

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy Junior 24" ATB
Suspension Fork
SR SUNTOUR M3010 P (24"), 50 mm, coil spring
Drivetrain
Shift Levers
SHIMANO SL-RS35-7 Revoshift
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
PROWHEEL (32T) - length 152 mm
Bottom Bracket
cartridge (126 mm)
Chain
KMC Z7 (102 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rims
KLS Wasper 507x19 (32 holes)
Spokes
steel black
Tires
MITAS Winner 50-507 (24"x1.95)
Brakes
Brakes
TEKTRO V-brake
Brake Levers
APSE
Cockpit
Stem
KALLOY - diam 28.6 mm / length 60 mm
Handlebar
steel RiseBar - diam 25.4 mm / width 580 mm
Grips
kraton 2Density
Seat
Saddle
KLS DriveLine Junior
Seatpost
KALLOY - diam 27.2 mm / length 300 mm

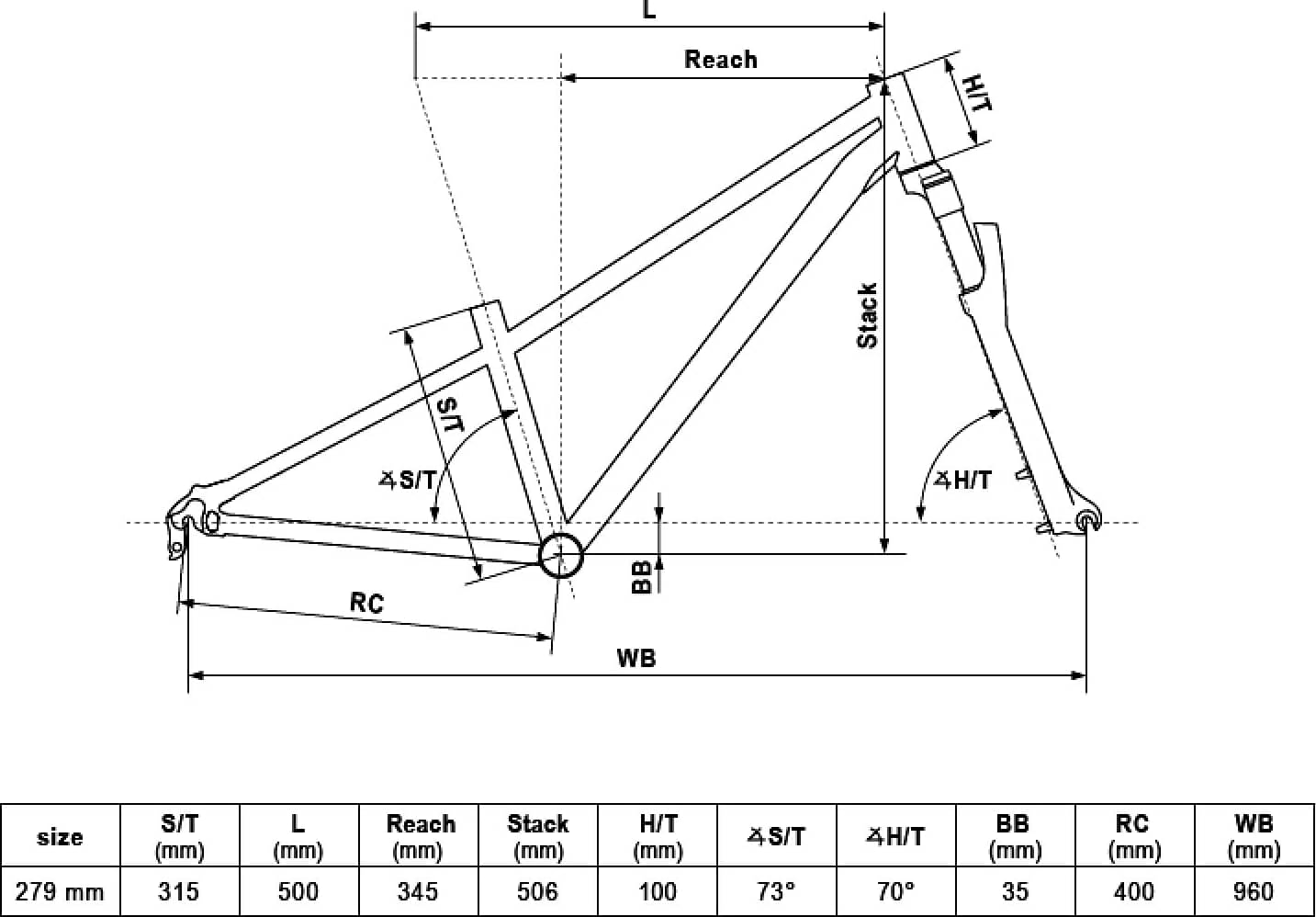

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 279 mm |
|---|---|
| Wheels | 24" |
