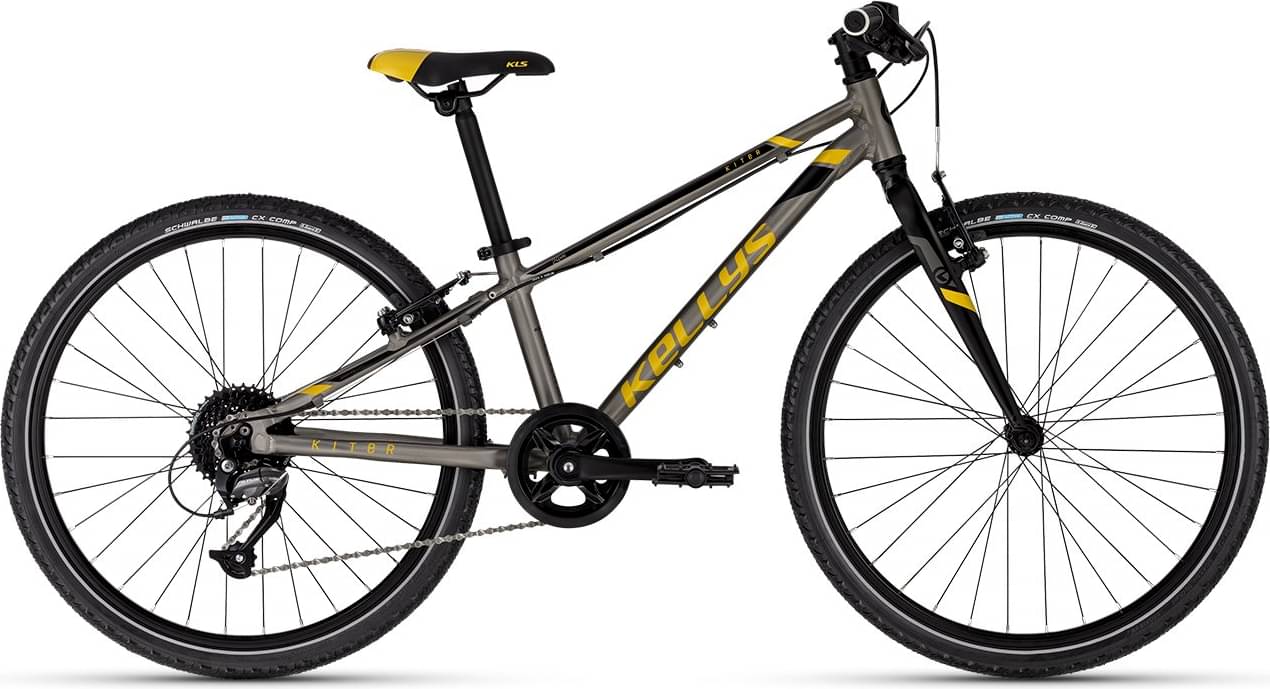

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy Junior 24"
Suspension Fork
Aluminium alloy
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues SL-U4000-9 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-9 (11-48T)
Crank
PROWHEEL (32T) - length 152 mm
Bottom Bracket
cartridge (126 mm)
Chain
SHIMANO Linkglide CN-LG500 (118 links)
Pedals
plastic
Wheels
Front Hub
alloy / SHIMANO TX500-8 (32 holes)
Rear Hub
alloy / SHIMANO TX500-8 (32 holes)
Rims
KLS Wasper 507x19 (32 holes)
Spokes
steel black
Tires
SCHWALBE CX Comp 47-507 (24"x1.75) K-Guard
Brakes
Brakes
TEKTRO V-brake
Brake Levers
APSE
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 600 mm
Grips
kraton 2Density
Seat
Saddle
KLS DriveLine Junior
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 280 mm |
|---|---|
| Wheels | 24" |
