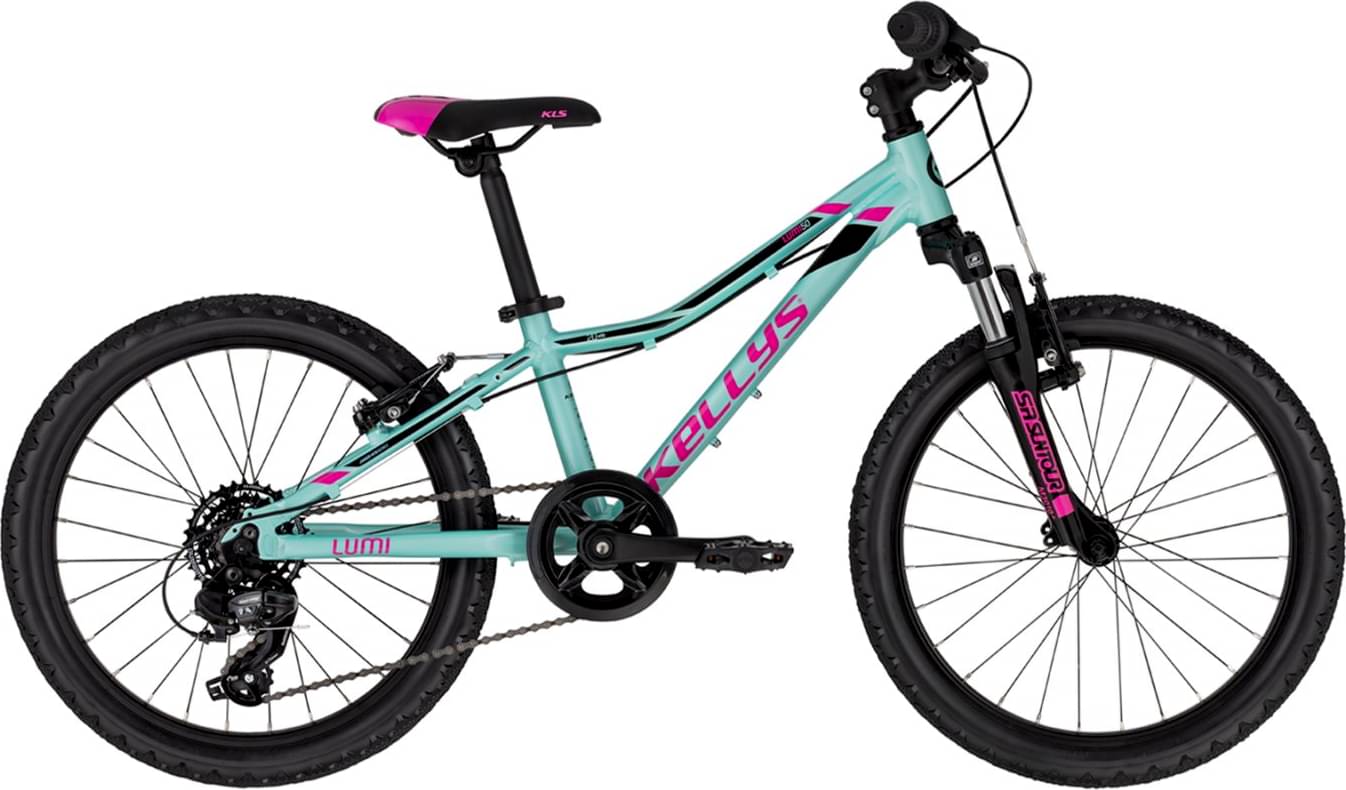

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 40mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 1 × 7 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy MTB 20
Suspension Fork
SR SUNTOUR M3010 (20), 40 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO TY300 (direct mount)
Shift Levers
SHIMANO SL-RS35-7 Revoshift
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
PROWHEEL (32T) - length 140 mm
Bottom Bracket
cartridge (126 mm)
Chain
KMC Z7 (96 links)
Pedals
plastic
Wheels
Front Hub
alloy (28 holes)
Rear Hub
alloy (28 holes)
Rims
KLS 406x21 (28 holes)
Spokes
steel black
Tires
MITAS Winner 50-406 (20x1.90)
Brakes
Brakes
TEKTRO V-brake
Brake Levers
APSE
Cockpit
Stem
KALLOY - diam 28.6 mm / length 60 mm
Handlebar
steel RiseBar - diam 25.4 mm / width 550 mm
Grips
kraton
Seat
Saddle
KLS DriveLine Junior
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 255 mm |
|---|---|
| Wheels | 20" |
