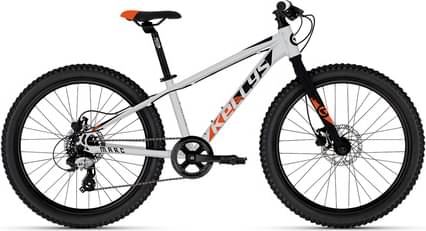

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC Junior 24" plus - Race Ready Concept
Suspension Fork
Aluminium alloy (cr-mo steerer, post mount disc brake)
Drivetrain
Rear Derailleur
SHIMANO TX800 (direct mount)
Shift Levers
SHIMANO SL-M315-7R Rapidfire Plus
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
PROWHEEL (36) - length 152 mm
Bottom Bracket
cartridge (126 mm)
Chain
KMC Z7 (102 links)
Pedals
plastic
Wheels
Front Hub
KT Disc (32 holes)
Rear Hub
KT Disc (32 holes)
Rims
KLS Brave Disc 507x23 (32 holes)
Spokes
steel black
Tires
INNOVA 58-507 (24"x2.35)
Brakes
Brakes
TEKTRO hydraulic disc
Brake Levers
TEKTRO
Cockpit
Stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
integrated - diam 31.8 mm / rise 6° / width 580 mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Junior
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data

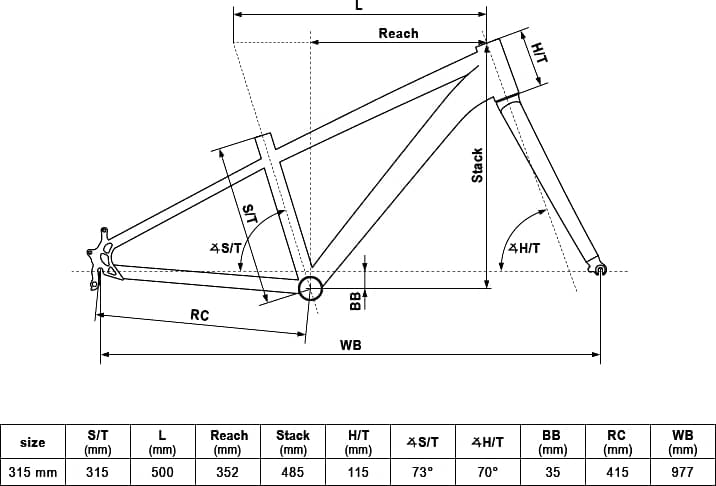

Geometry
Numbers for sizing and ride feel.
| Size | 315 mm |
|---|---|
| Wheels | 24" |
