Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC Junior 24" - Race Ready Concept
Suspension Fork
SR SUNTOUR XCT-JR DS (24"), 50 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Altus M310 (direct mount)
Shift Levers
SHIMANO SL-M315-8R Rapidfire Plus
Cassette
SUNRACE M55-8 (11-34T)
Crank
PROWHEEL (32T) - length 152 mm
Bottom Bracket
cartridge (126 mm)
Chain
KMC Z8 (102 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 507x21 (32 holes)
Spokes
steel black
Tires
RUBENA Winner 50-507 (24"x1.95)
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
integrated - diam 31.8 mm / rise 6° / width 580 mm
Grips
KLS Advancer 2Density
Seat
Saddle
SELLE ROYAL Ben
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data

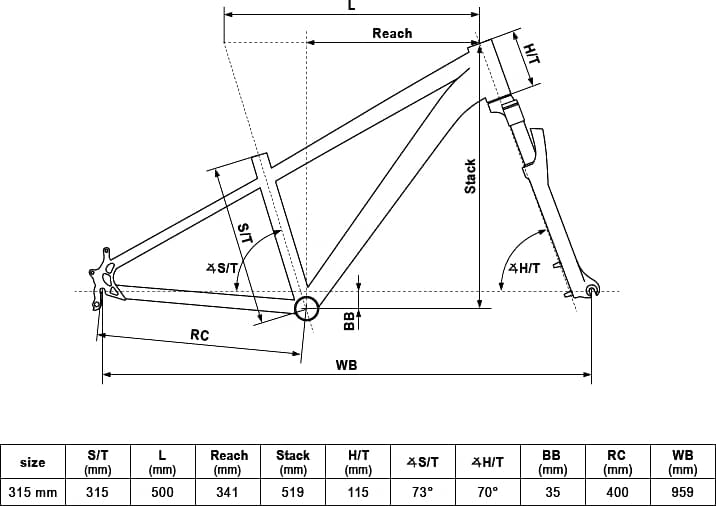

Geometry
Numbers for sizing and ride feel.
| Size | 315 mm |
|---|---|
| Wheels | 24" |
