Bike details
Overview
Key information split into simple groups.

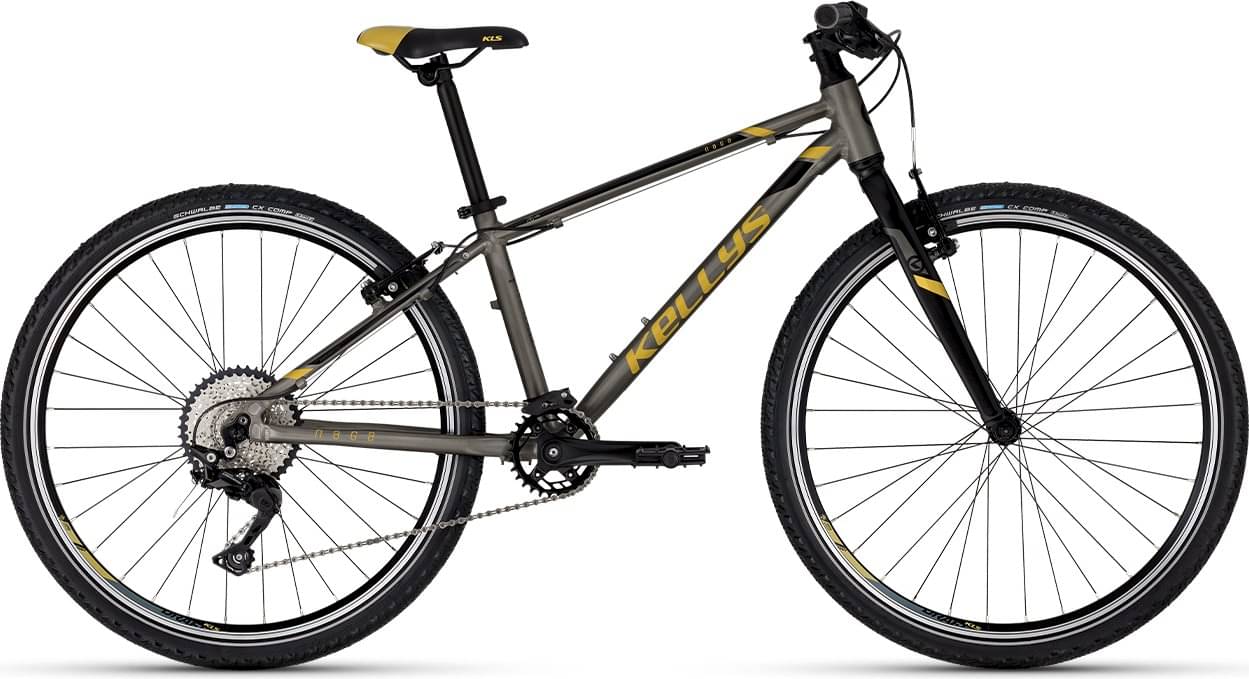

Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Aluminium alloy Junior 26"
Suspension Fork
Aluminium alloy (cr-mo steerer)
Drivetrain
Rear Derailleur
SHIMANO Cues U6000 (direct mount)
Front Derailleur
chain guide
Shift Levers
SHIMANO Cues SL-U6000-10 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-10 (11-48T)
Crank
PROWHEEL (30T) - length 155 mm
Bottom Bracket
cartridge (122.5 mm)
Chain
SHIMANO Linkglide CN-LG500 (114 links)
Pedals
plastic
Wheels
Front Hub
alloy / SHIMANO T3000 (32 holes)
Rear Hub
alloy / SHIMANO T3000 (32 holes)
Rims
KLS Draft 559x21 (32 holes)
Spokes
steel black
Tires
SCHWALBE CX Comp 50-559 (26"x2.0) K-Guard
Brakes
Brakes
TEKTRO V-brake
Brake Levers
APSE
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 600 mm
Grips
kraton 2Density
Seat
Saddle
KLS DriveLine Junior
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 343 mm |
|---|---|
| Wheels | 26" |
