Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tourney -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Superlight double butted Aluminium alloy Junior 24"
Suspension Fork
Aluminium alloy (alloy steerer)
Drivetrain
Rear Derailleur
SHIMANO TY300 (direct mount)
Front Derailleur
chain guide
Shift Levers
SHIMANO SL-RV200-7R Revoshift
Cassette
SHIMANO CS-HG200-7 (12-32T)
Crank
PROWHEEL (30T) - length 152 mm
Bottom Bracket
cartridge (126 mm)
Chain
KMC Z7 (96 links)
Pedals
plastic
Wheels
Front Hub
alloy (24 holes)
Rear Hub
alloy (24 holes)
Rims
KLS 507x19 (24 holes)
Spokes
steel black
Tires
SCHWALBE Little Joe Performance 47-507 (24"x1.95) ADDIX, folding
Brakes
Brakes

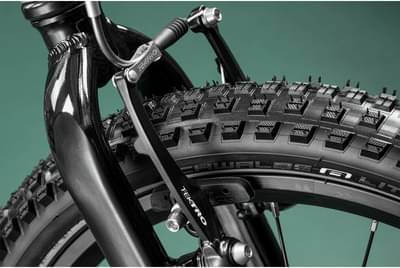

TEKTRO V-brake
Brake Levers
APSE
Cockpit
Stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
integrated - diam 31.8 mm / rise 6° / width 580 mm
Grips
kraton 2Density
Seat
Saddle
SELLE ROYAL Explora Junior
Seatpost
alloy - diam 27.2 mm / length 300 mm
Fit data

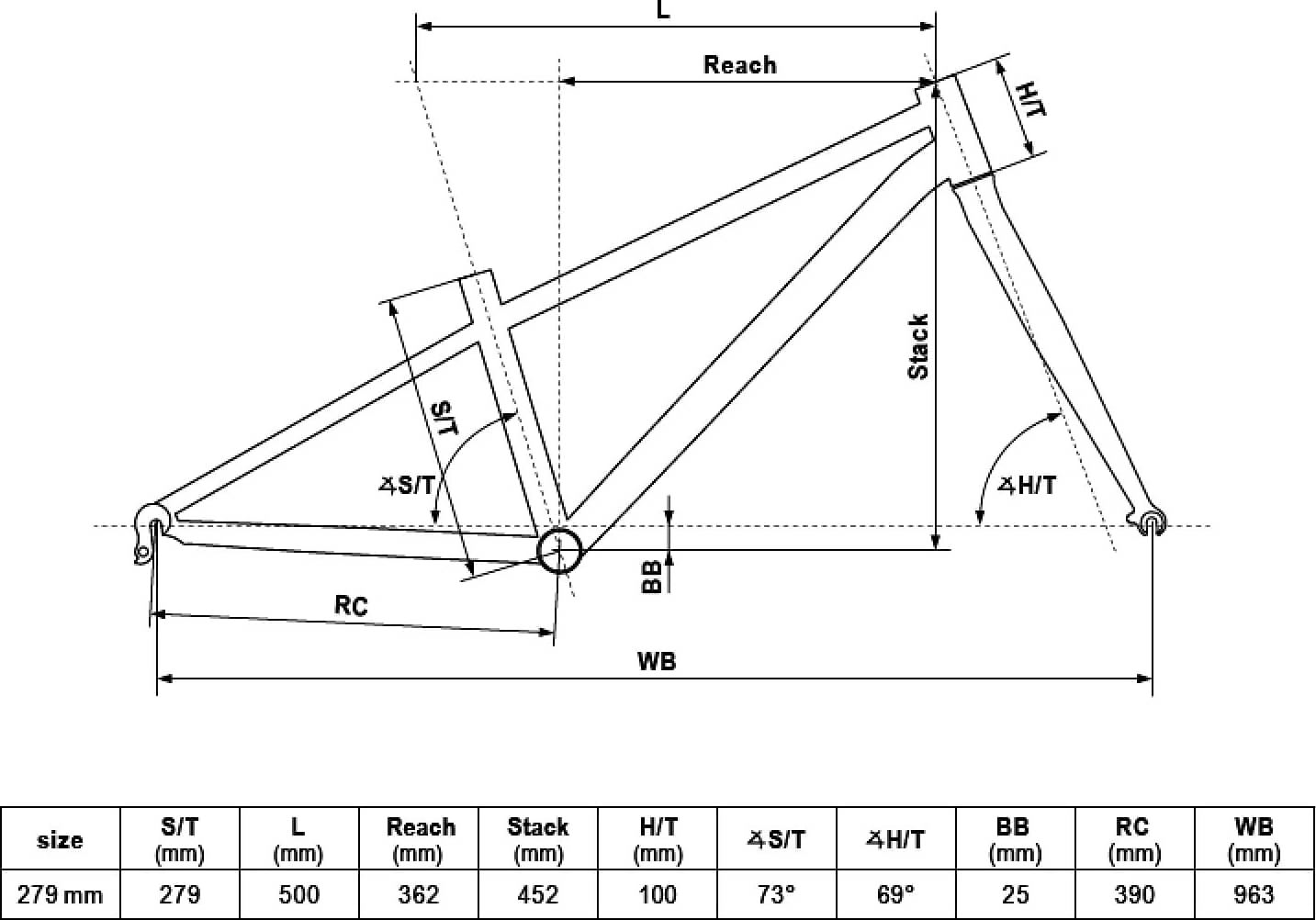

Geometry
Numbers for sizing and ride feel.
| Size | 279 mm |
|---|---|
| Wheels | 24" |
