Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Tektro Rim
Parts list
Components
Main components, grouped by system.
Bike components

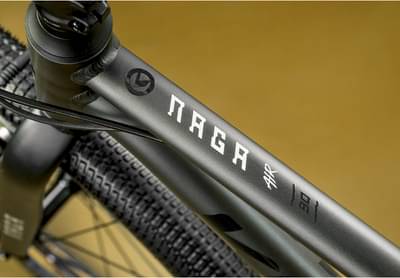

Frame
Frame
KELLYS Superlight double butted Aluminium alloy Junior 26"
Suspension Fork
Aluminium alloy (alloy steerer)
Drivetrain
Rear Derailleur
SHIMANO Cues U6000 (direct mount)
Front Derailleur
chain guide Mr.control
Shift Levers
SHIMANO Cues SL-U6000-10R Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-10 (11-48T)
Crank
PROWHEEL (30T) - length 155 mm
Bottom Bracket
cartridge (119 mm)
Chain
SHIMANO Linkglide CN-LG500 (108 links)
Pedals
plastic
Wheels
Front Hub
alloy (24 holes)
Rear Hub
alloy (24 holes)
Rims
KLS Draft 559x21 (24 holes)
Spokes
steel black
Tires
SCHWALBE Little Joe Performance 50-559 (26"x2.0) ADDIX, folding
Brakes

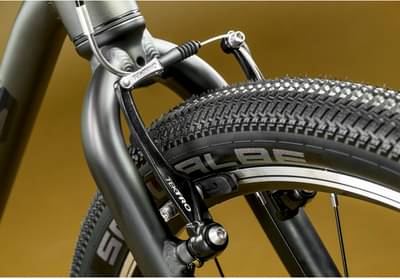

Brakes
TEKTRO V-brake

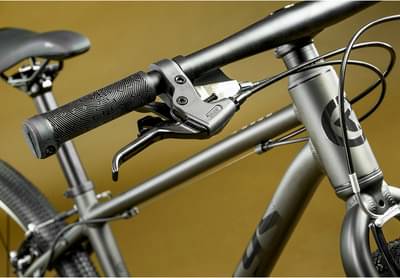

Brake Levers
APSE
Cockpit
Stem
integrated BarStem - diam 28.6 mm / bar bore 31.8 mm / length 40 mm
Handlebar
integrated - diam 31.8 mm / rise 6° / width 600 mm
Grips
kraton 2Density
Seat
Saddle
SELLE ROYAL Vivo Mini, Magnesium rails
Seatpost
KALLOY - diam 27.2 mm / length 300 mm
Fit data

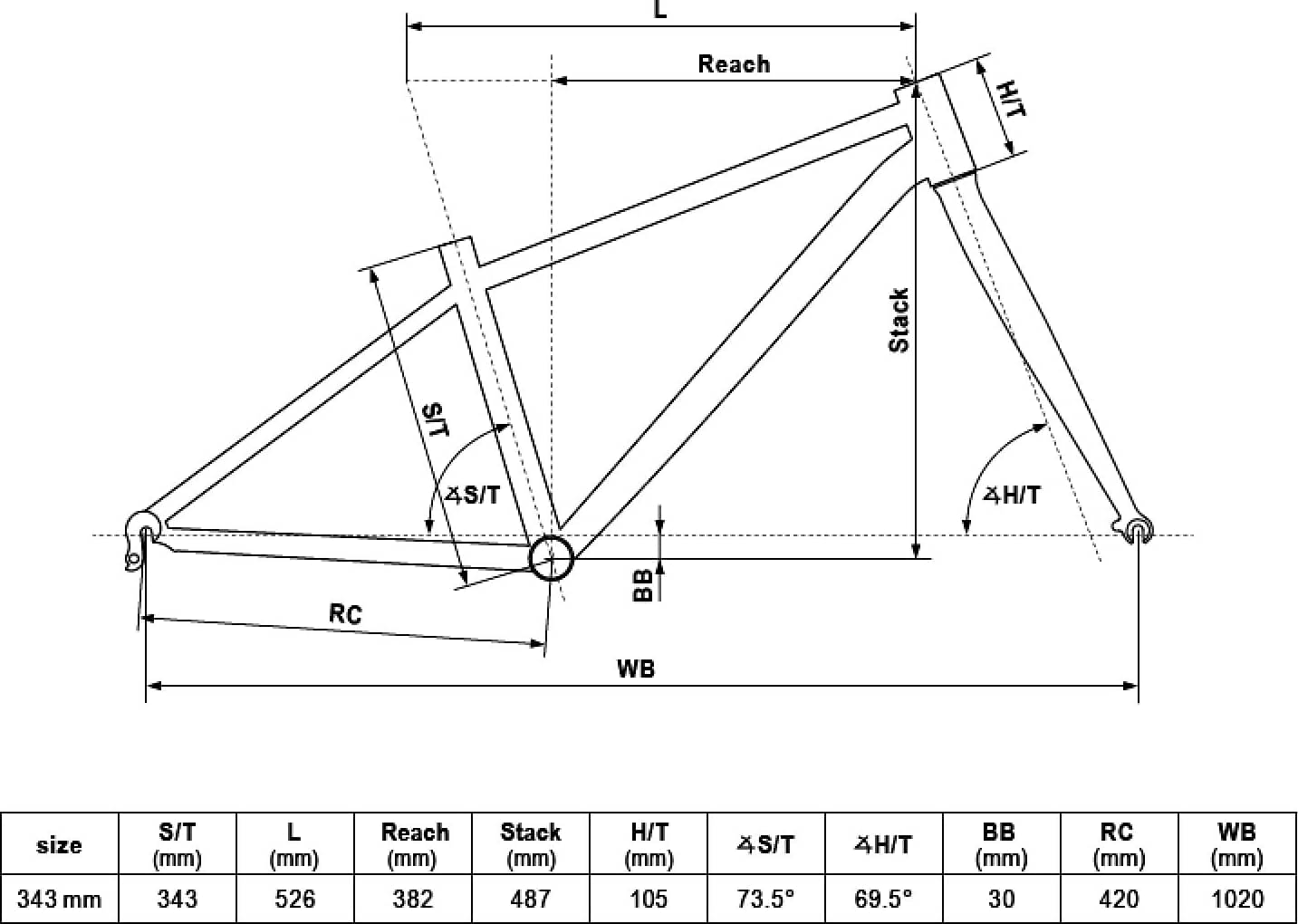

Geometry
Numbers for sizing and ride feel.
| Size | 343 mm |
|---|---|
| Wheels | 26" |
