Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 200mm -
Travel Rear 205mm -
Fork RockShox BoXXer Ultimate
-
Groupset Saint -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Gravity DH / Think Link® suspension system, 205 mm rear travel, tapered HT, internal routing, ISCG 05, mullet 29" / 27.5" wheelset, 12x150 mm thru axle
Suspension Fork

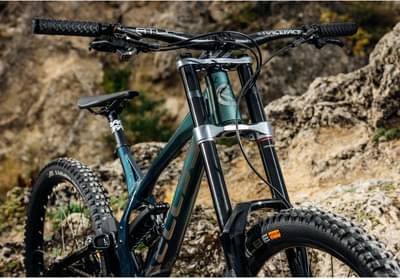

ROCK SHOX BoXXer Ultimate (29") Boost, 200 mm, DebonAir / Charger 2 RC2 / Maxle Stealth 20 mm thru axle
Rear Shock

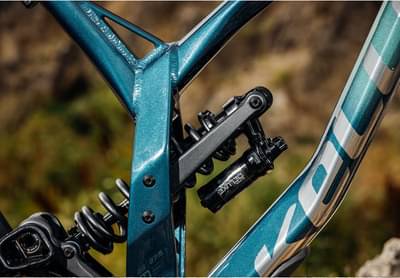

ROCK SHOX Super Deluxe Coil Ultimate DH RC2 / Open-Threshold (250x75 mm)
Drivetrain
Rear Derailleur
SHIMANO Saint M820 (direct mount)
Front Derailleur
chain guide MOZARTT HXR, ISCG 05
Shift Levers
SHIMANO Saint SL-M820 Rapidfire Plus
Cassette
SHIMANO CS-HG500-10 (11-25T)
Crank
SHIMANO Saint M825 Hollowtech II (34T) - length 165 mm
Bottom Bracket
SHIMANO Press-Fit BB71-41A
Chain
KMC X10 EL (104 links)
Pedals
plastic
Wheels
Front Hub
NOVATEC DH Disc (20x110 mm / 12x150 mm / 32 holes)
Rear Hub
NOVATEC DH Disc (20x110 mm / 12x150 mm / 32 holes)
Rims
MAVIC EX 1028 Disc (622x28 front / 584x28 rear / 32 holes)
Spokes
stainless steel black
Tires
Front: SCHWALBE Magic Mary 60-622 (29"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding, Rear: SCHWALBE Magic Mary 60-584 (27.5"x2.35) SnakeSkin, Tubeless Easy, ADDIX Soft, folding
Brakes
Brakes
SHIMANO Deore XT M8120 hydraulic disc
Brake Levers
SHIMANO Deore XT BL-M8100
Cockpit
Stem
RACE FACE Atlas 35 DM - direct mount / bar bore 35 mm / lenght 50
Handlebar
RACE FACE Atlas 35 RiseBar - diam 35 mm / rise 20 mm / width 820 mm
Grips
KLS Poison
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
RACE FACE Chester - diam 30.9 mm / length 325 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
