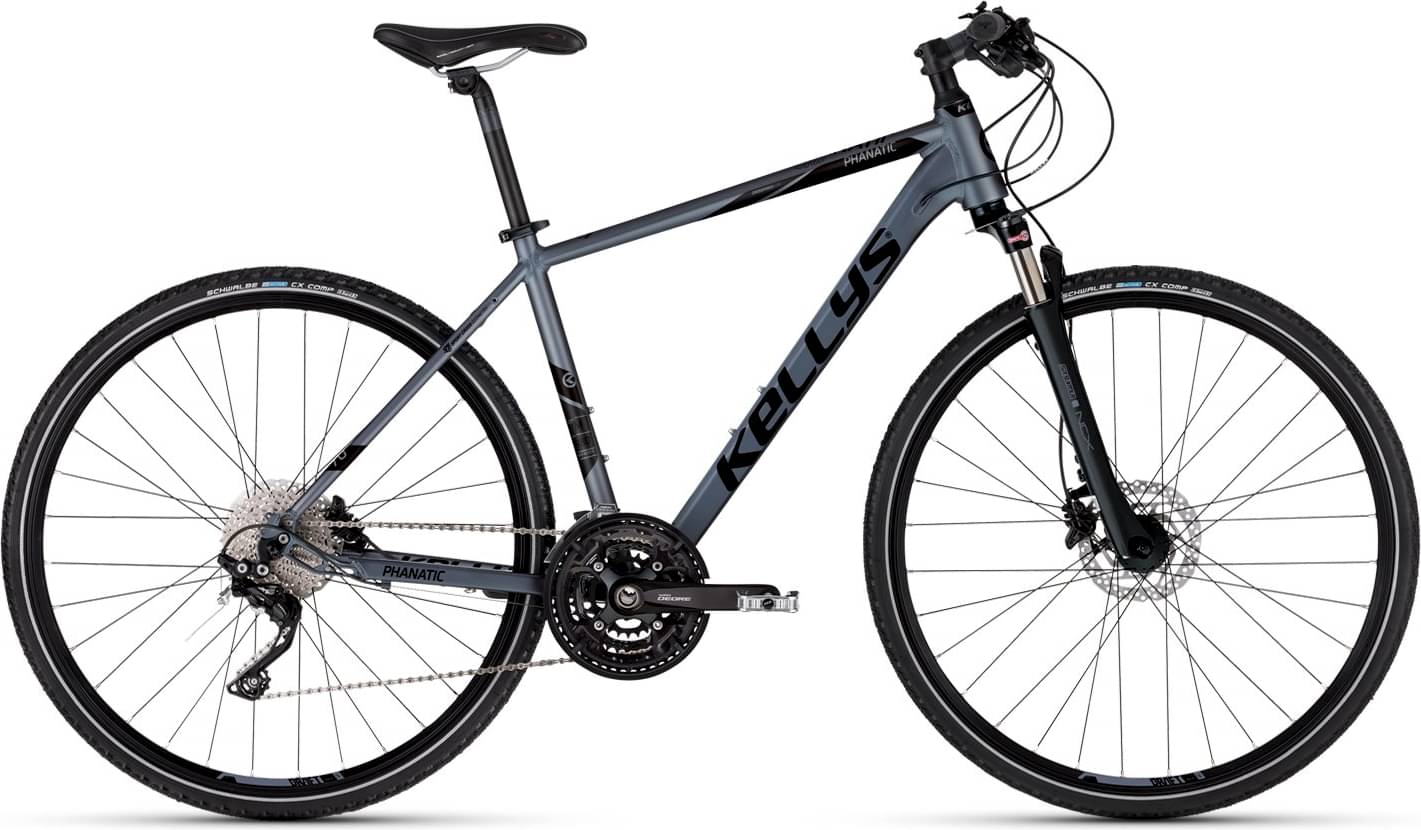

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NCX-D Air RL DS, 63 mm, air / Remote Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Deore XT M781 (direct mount)
Front Derailleur
SHIMANO Deore T6000 (31.8 mm)
Shift Levers
SHIMANO Deore SL-M6000 Rapidfire Plus
Cassette
SHIMANO CS-HG50-10 (11-36T)
Crank
SHIMANO Deore T6010 Hollowtech II (48x36x26T) - length 175 mm
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X10 EL (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO M475 Disc (32 holes)
Rear Hub
SHIMANO M475 Disc (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
MICHELIN Protek Cross 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT500 Hydraulic Disc
Brake Levers
SHIMANO BL-MT501
Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 640 mm (M), 660 mm (L)
Grips
KLS Token 2Density
Seat
Saddle
SELLE ROYAL Lookin Sport Visual Royalgel
Seatpost
KLS Advanced - diam 27.2 mm / length 350 mm
Fit data

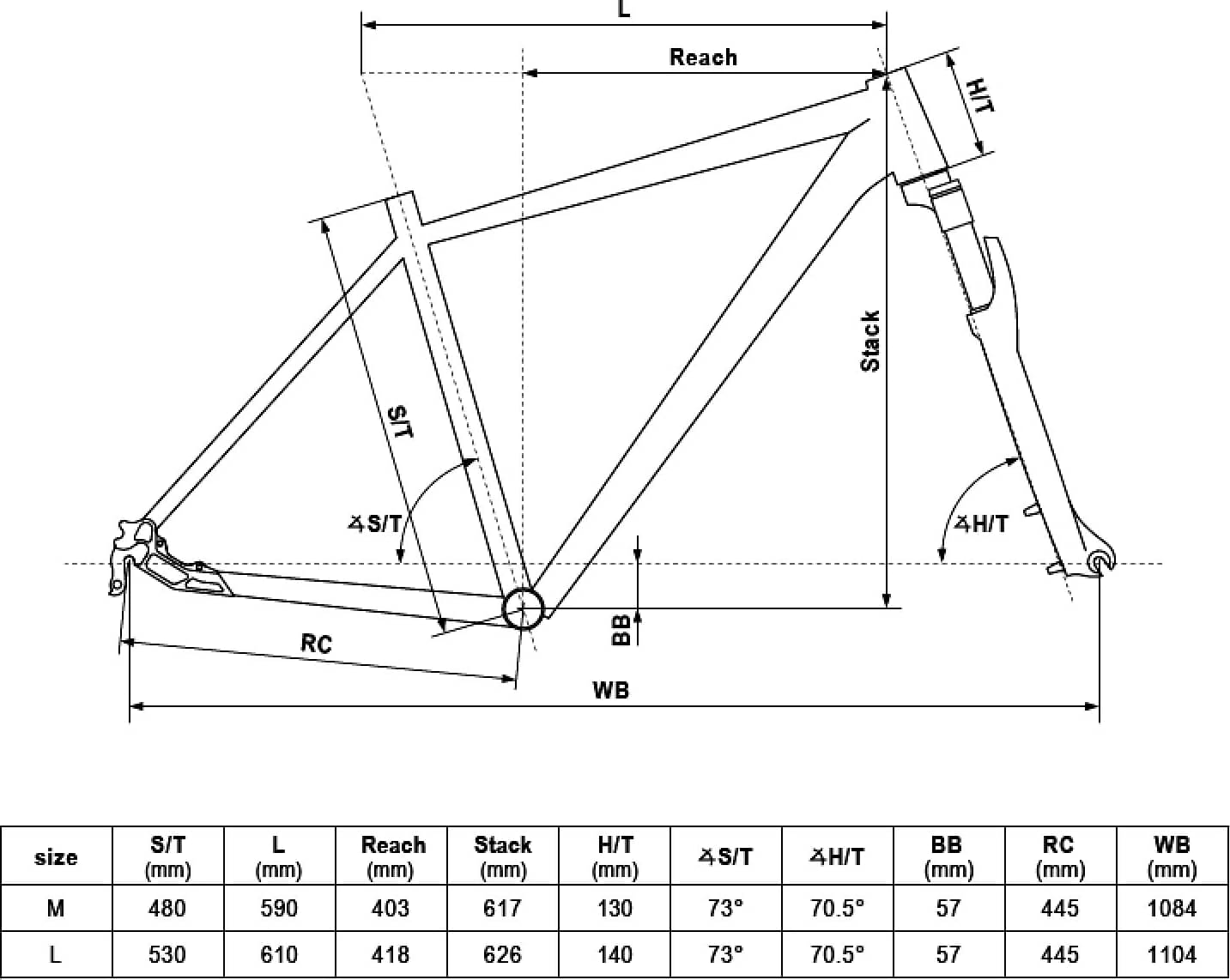

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
