Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NCX-D Air RL DS, 63 mm, air / Remote Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Cues U6020-11 (direct mount)
Front Derailleur
SHIMANO Cues U8010-L (34.9 mm)
Shift Levers
SHIMANO Cues SL-U6000-11R Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG400-11 (11-45T)
Crank
SHIMANO Cues U6010-2 Hollowtech II (46x32T) - length 170 mm (S), 175 mm (M - L)
Bottom Bracket
SHIMANO BB-MT501
Chain
SHIMANO Linkglide CN-LG500 (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
SCHWALBE CX Comp 40-622 (700x38C) K-Guard or KENDA Kwick 700 45-622 (700x45C) / ReflectiveLine
Brakes
Brakes
SHIMANO MT500 hydraulic disc
Brake Levers
SHIMANO BL-MT501
Cockpit
Stem
KLS Advanced - diam 28.6 mm / bar bore 31.8 mm / 7° / length 90 mm
Handlebar
KLS Advanced FlatBar - diam 31.8 mm / width 640 mm (S - M), 660 mm (L)
Grips
KLS Token 2Density
Seat
Saddle
KLS
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data

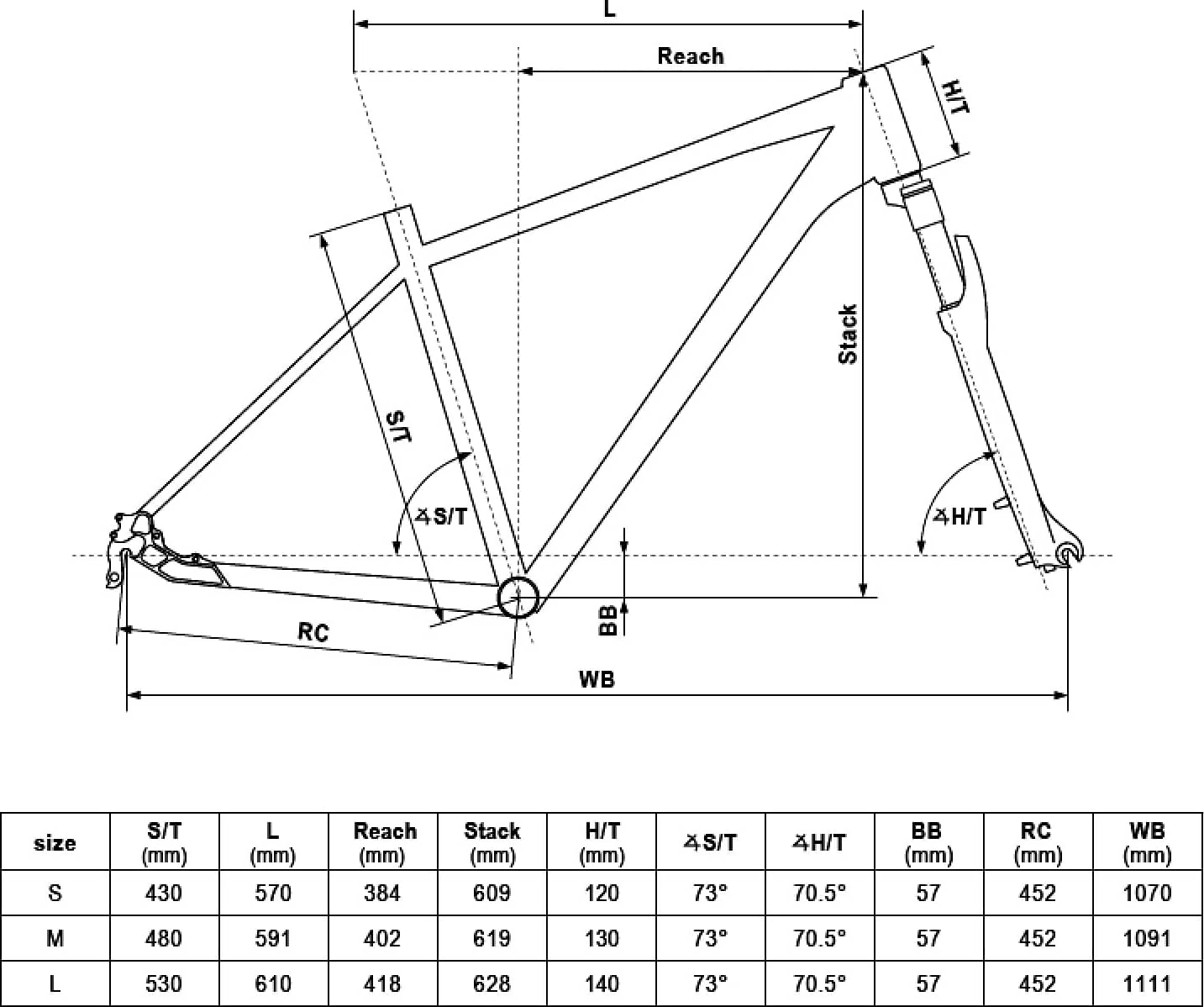

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
