Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lady Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX HLO, 63 mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Acera M3000 (direct mount)
Front Derailleur
SHIMANO TY710 (31.8 mm)
Shift Levers
SHIMANO ST-EF505-9 EZ-fire Plus
Cassette
SHIMANO CS-HG200-9 alebo DTS-9 (11-34T)
Crank
SR SUNTOUR XCM (48x36x26T) - length 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (113 mm)
Chain
KMC X9 (114 links)
Pedals
alloy
Wheels
Front Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
INNOVA 44-622 (700x42C)
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO ST-EF505-9 EZ-fire Plus
Cockpit
Stem
KLS CRX 70 adjustable - diam 28.6 mm / bar bore 31.8 mm / length 95 mm
Handlebar
KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm
Grips
KLS Token 2Density
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 27.2 mm / length 350 mm

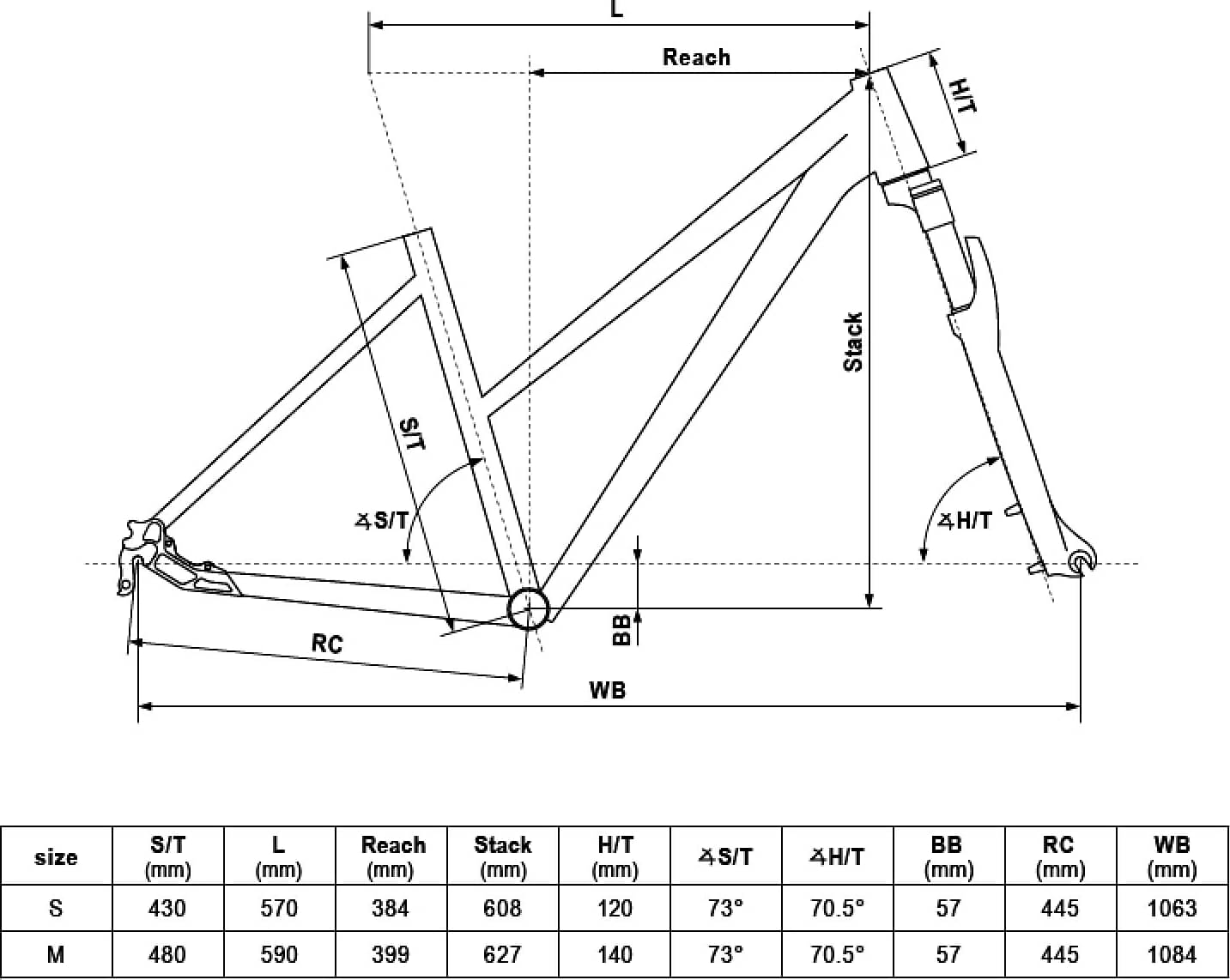

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
