Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lady Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NVX30 NLO DS, 80 mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Alivio M4000 (direct mount)
Front Derailleur
SHIMANO Acera T3000 (31.8 mm)
Shift Levers
SHIMANO Alivio SL-M4000 Rapidfire Plus
Cassette
SHIMANO CS-HG300-9 (11-34T)
Crank
SHIMANO Acera T3010 (48x36x26T) - length 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (124.5 mm)
Chain
KMC X9 (114 links)
Pedals
alloy
Wheels
Front Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
MICHELIN Protek Cross 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc or KLS 1600 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200 or KLS 1600
Cockpit
Stem
KLS CRX 70 adjustable - diam 28.6 mm / bar bore 31.8 mm / length 95 mm
Handlebar
KLS CRX 70 RiseBar - diam 31.8 mm / rise 25 mm / width 640 mm
Grips
KLS Token 2Density
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 27.2 mm / length 350 mm
Fit data

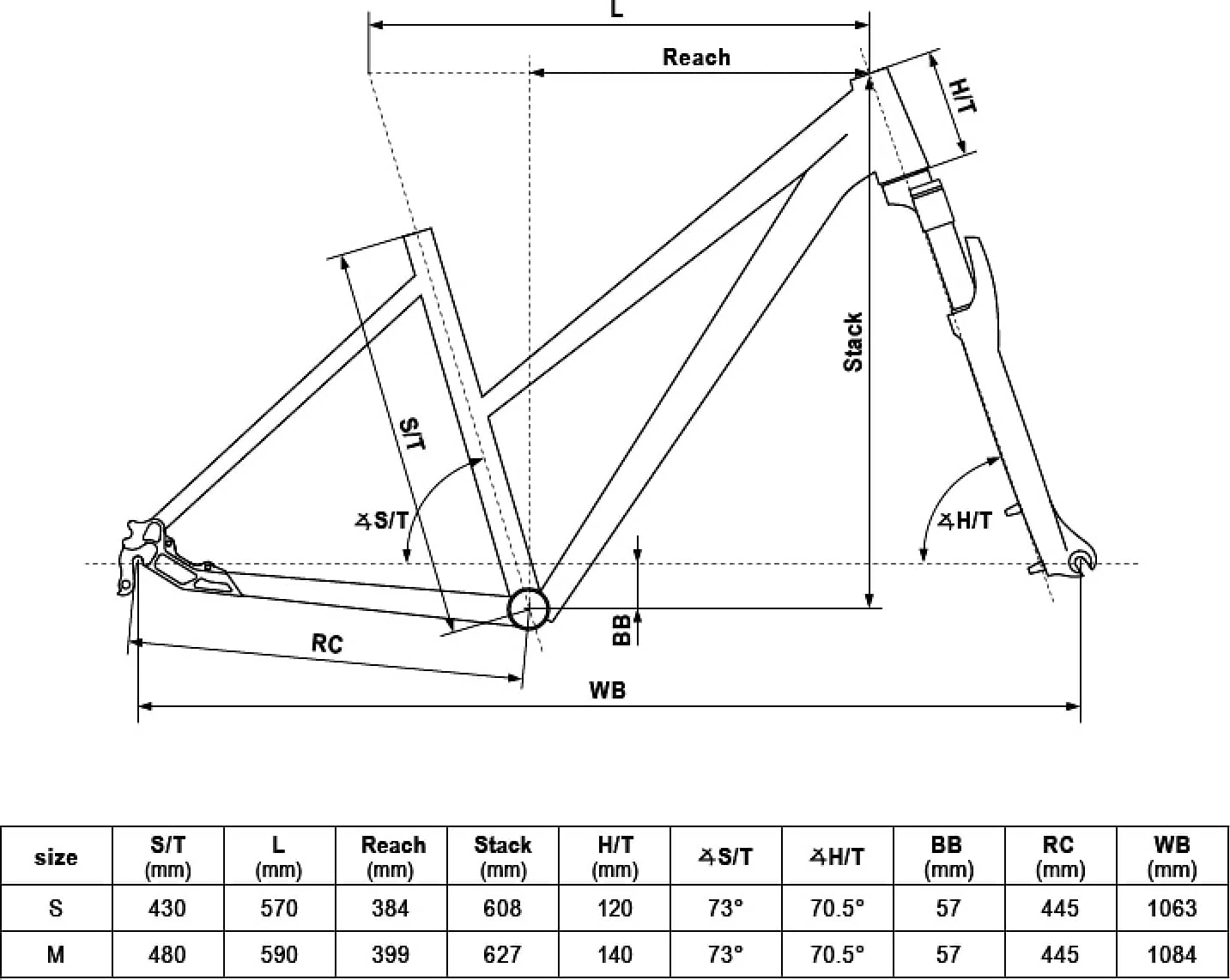

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
