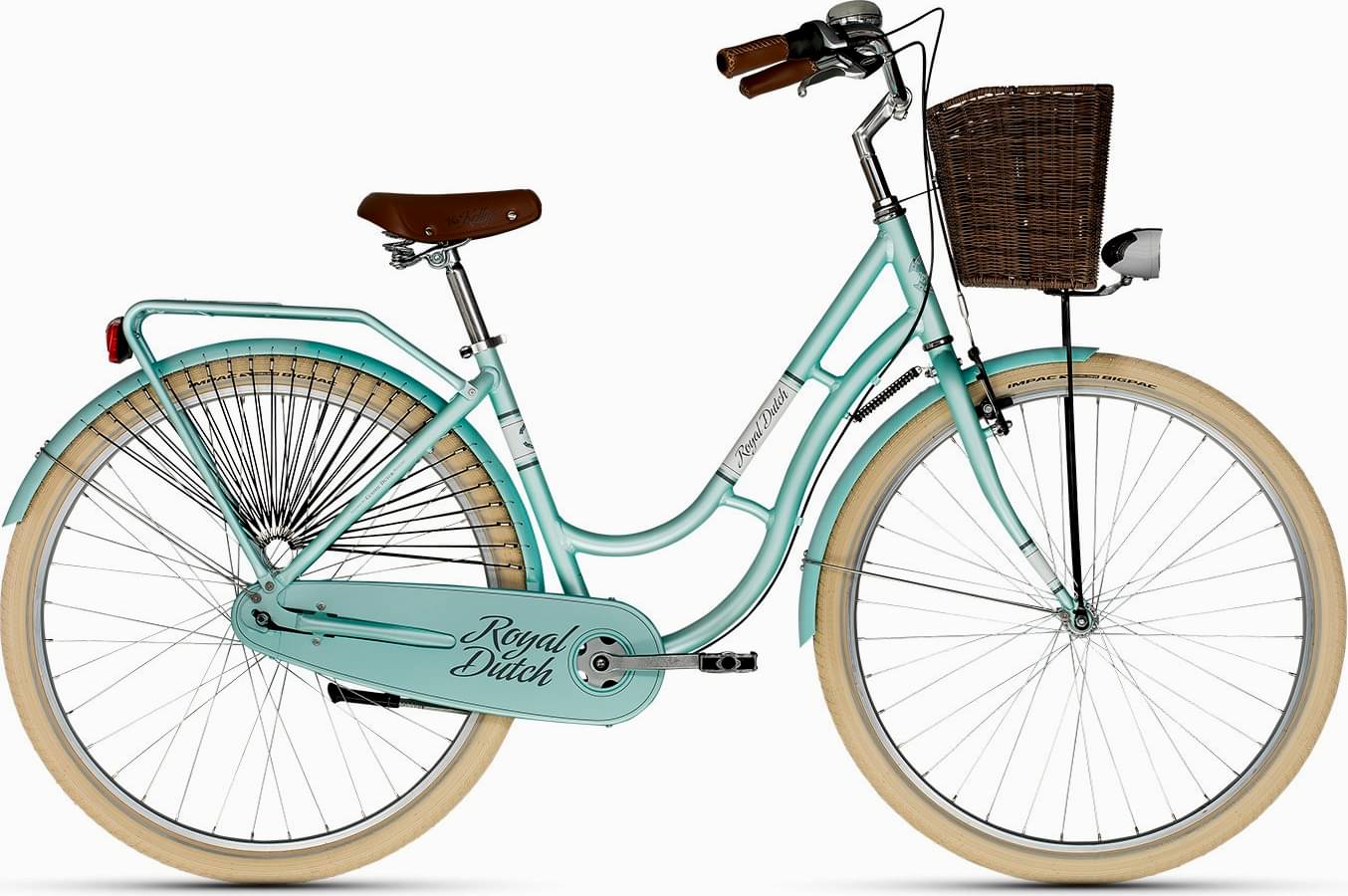

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Shimano Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
van KELLYS Dutch - Aluminium alloy 28
Suspension Fork
unicrown steel (threaded steerer)
Drivetrain
Shift Levers
SHIMANO Nexus SL-7S20 Revoshift
Cassette
SHIMANO for internal hub 16T
Crank
PROWHEEL (36T) - length 170 mm
Bottom Bracket
cartridge (115 mm)
Chain
KMC Z6 (98 links)
Pedals
NonSlip - alloy
Wheels
Front Hub
alloy / SHIMANO Nexus C3000 Inter-7 (36 holes)
Rear Hub
alloy / SHIMANO Nexus C3000 Inter-7 (36 holes)
Rims
KLS Event 622x19 (36 holes)
Spokes
steel
Tires
IMPAC Bigpac 50-622 (28x2.0) ReflectiveLine
Brakes
Brakes
APSE V-brake / SHIMANO náš?apná brzda
Brake Levers
TEKTRO
Cockpit
Stem
alloy / steel - diam 25.4 mm / 30° / length 80 mm
Handlebar
steel RiseBar - diam 25.4 mm / rise 70 mm / width 630 mm
Grips
HollandGrip
Seat
Saddle
van KELLYS
Seatpost
steel - diam 27.2 mm / length 330 mm

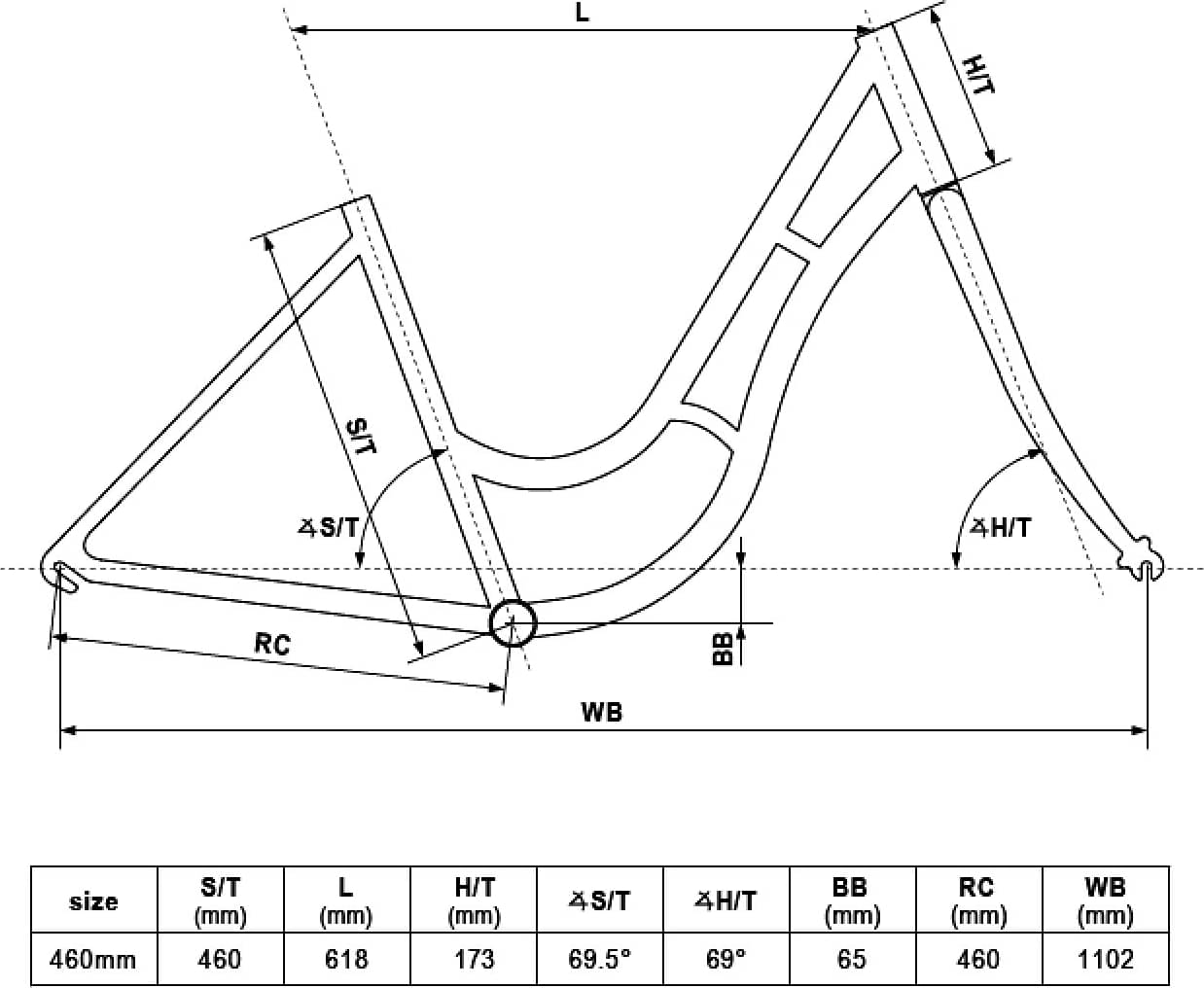

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm mm |
|---|---|
| Wheels | 700 |
| Rider Min Height | 120 cm |
