Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Shimano GRX 400 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

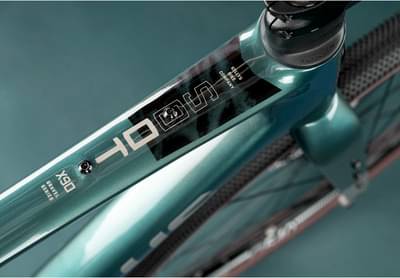

Frame
Frame
KELLYS Gravel Concept Carbon Disc / tapered HT, flat mount, internal routing / 12 mm thru axle
Suspension Fork
KELLYS Carbon Disc, 1.5 tapered steerer / flat mount disc brake / internal routing / 12 mm thru axle
Drivetrain
Rear Derailleur
SHIMANO GRX RX822 (direct mount)
Shift Levers
SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
Cassette
SHIMANO Deore CS-M6100-12 (10-51T)

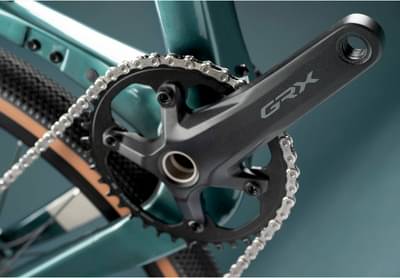

Crank
SHIMANO GRX RX610-1 (40T) - length 172.5 mm (S - M), 175 mm (L)
Bottom Bracket
SHIMANO Press-Fit BB-RS500-PB
Chain
SHIMANO CN-M7100 (114 links)
Wheels
Front Hub
KT Disc Center Lock (28 holes)
Rear Hub
KT Disc Center Lock (28 holes)
Rims
DT SWISS G 540 Disc 700Cx24 (28 holes)
Tires
SCHWALBE G-One Allround 40-622 (700x38C) RaceGuard, ADDIX, folding
Brakes
Brakes
SHIMANO GRX RX400 Hydraulic Disc
Brake Levers
SHIMANO GRX ST-RX610-R Dual Control / BL-RX610-L
Cockpit
Stem
PROMAX - for internal cable routing, compatible with A-BOX head set / diam 28.6 mm / bar bore 31.8 mm / 6° / length 80 mm (S ), 90 mm (M), 100 mm (L)
Handlebar
GravelBar - double butted / diam 31.8 mm / width 400 mm (S), 420 mm (M), 440 mm (L)
Grips
KLS bar tape
Seat
Saddle
WTB Volt
Seatpost
KLS Active Road - diam 27.2 mm / length 400 mm

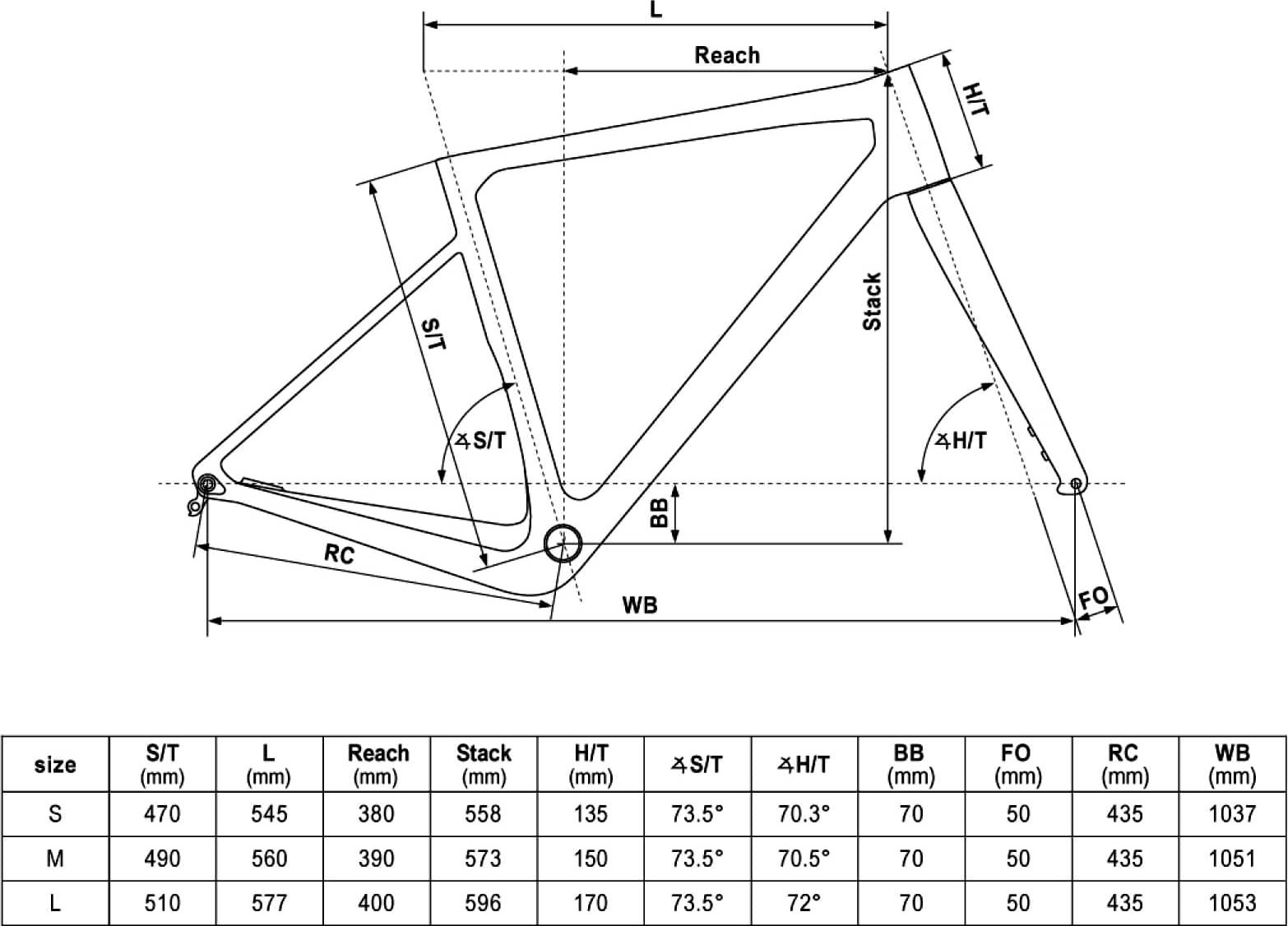

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
