Bike details
Overview
Key information split into simple groups.

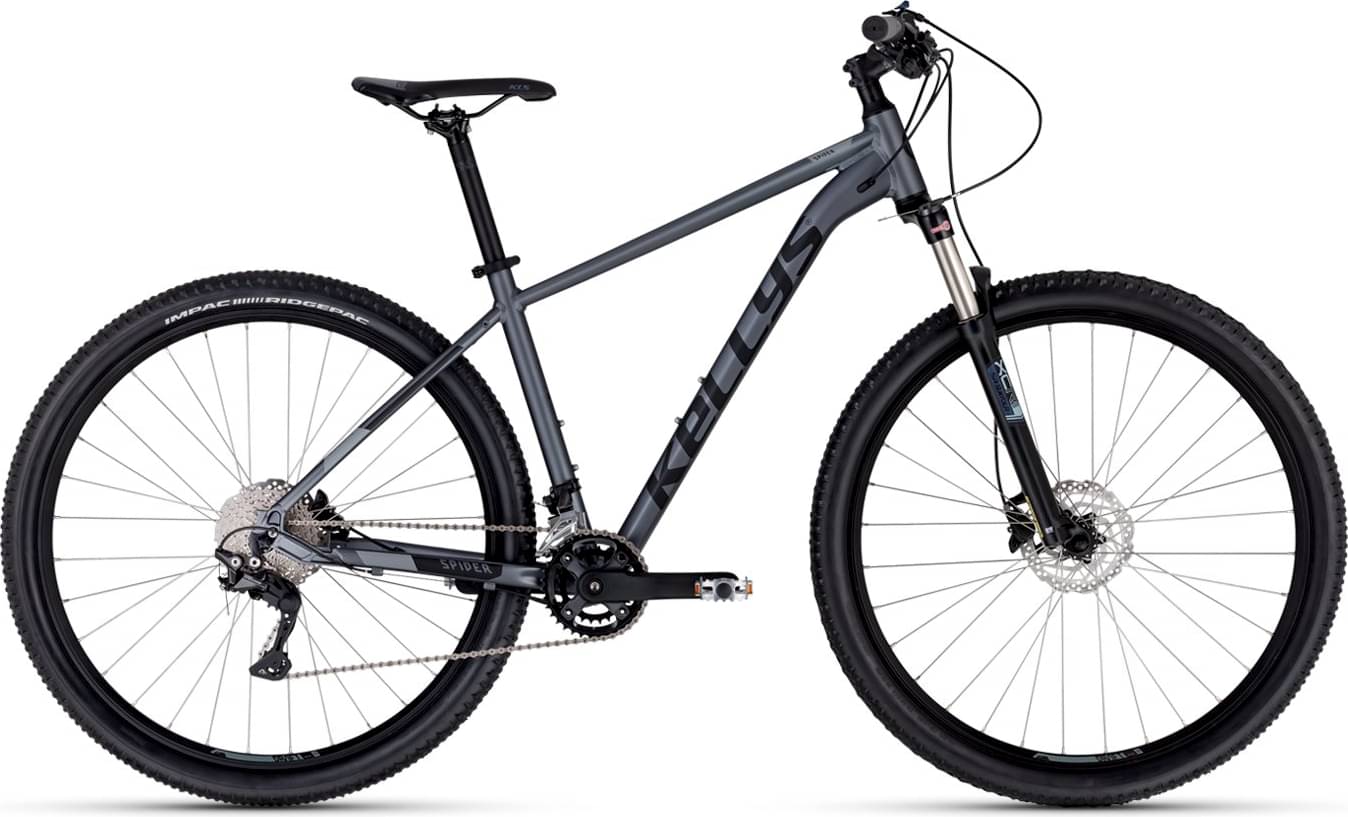

Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC 29 - Race Ready Concept
Suspension Fork
SR SUNTOUR XCR Air RLR DS (29), 100 mm, air / Remote Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Deore M4120 (direct mount)
Front Derailleur
SHIMANO Deore M6025 (34.9 mm)
Shift Levers
SHIMANO Deore SL-M5100-L / M4100-R Rapidfire Plus
Cassette
SHIMANO CS-HG50-10 (11-36T)
Crank
SAMOX (36x26T) - length 170 mm (S), 175 mm (M - L)
Bottom Bracket
cartridge (122.5 mm)
Chain
KMC X10 EL (110 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel
Tires
IMPAC Ridgepac or WTB Nano 54-622 (29x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 75 mm (S - M), 90 mm (L)
Handlebar
KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 660 mm (S), 680 mm (M - L)
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M - L)
Fit data

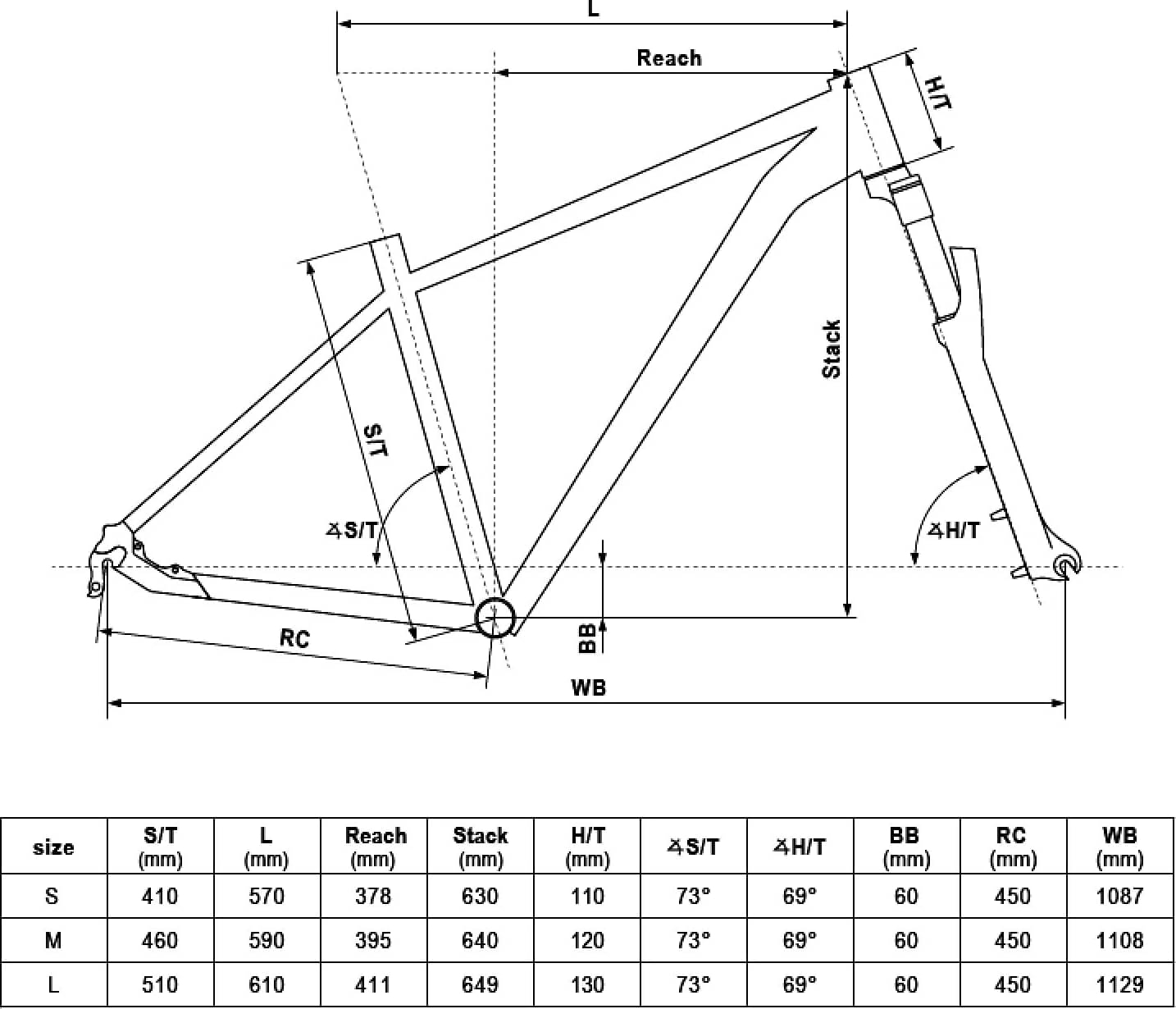

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
