Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC 27.5" - Race Ready Concept
Suspension Fork
SR SUNTOUR XCM32 NLO DS (27.5"), 100 mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Cues U4000 (direct mount)
Shift Levers
SHIMANO Cues SL-U4010-9R Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-9 (11-46T)
Crank
SHIMANO Cues U4000-1 (32T) - d?žka 170 mm (S), 175 mm (M)
Bottom Bracket
cartridge (122.5 mm)
Chain
SHIMANO Linkglide CN-LG500 (108 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft 23 Disc 584x23 (32 holes)
Spokes
steel
Tires
WTB Ranger Comp 55-584 (27.5"x2.25) or KENDA Booster 56-584 (27.5"x2.20)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / length 60 mm (S - M)
Handlebar
KLS Active FlatBar - diam 31.8 mm / width 680 mm (S), 720 mm (M)
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9 mm / length 350 mm (S), 400 mm (M)
Fit data

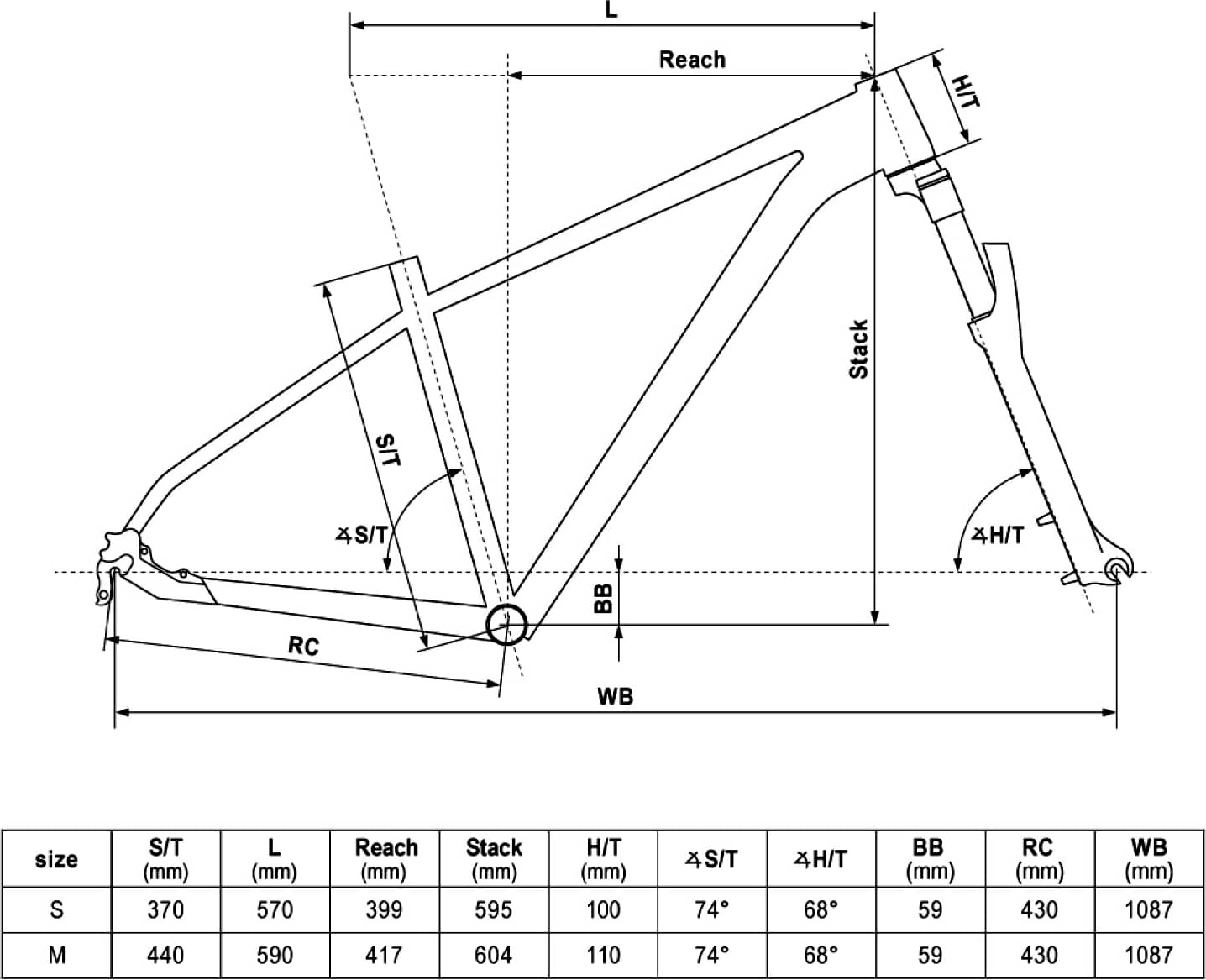

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 27" | 27" |
