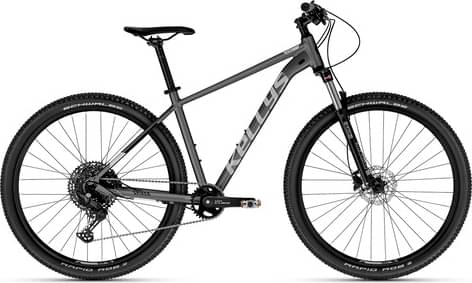

Kellys SPIDER X80 MOONSTONE 29″ 2024
2024 Mountain
Estimate price |
1,088$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC 29" - Race Ready Concept
Suspension Fork
SR SUNTOUR XCR32 ATB Air RLR DS (29"), 100 mm, air / Remote Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Cues U6000 (direct mount)
Shift Levers
SHIMANO Cues SL-U6000-10 Rapidfire Plus
Cassette
SHIMANO Linkglide CS-LG300-10 (11-48T)
Crank
SHIMANO Cues U4000-1 (32T) - length 175 mm
Bottom Bracket
cartridge (122.5 mm)
Chain
SHIMANO Linkglide CN-LG500 (110 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
WTB Ranger Comp 55-622 (29"x2.25)
Brakes
Brakes
SHIMANO MT200 hydraulic disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Active - diam 28.6 mm / bar bore 31.8 mm / 8° / length 60 mm (M), 75 mm (L)
Handlebar
KLS Active FlatBar - diam 31.8 mm / width 720 mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9 mm / length 400 mm
Fit data

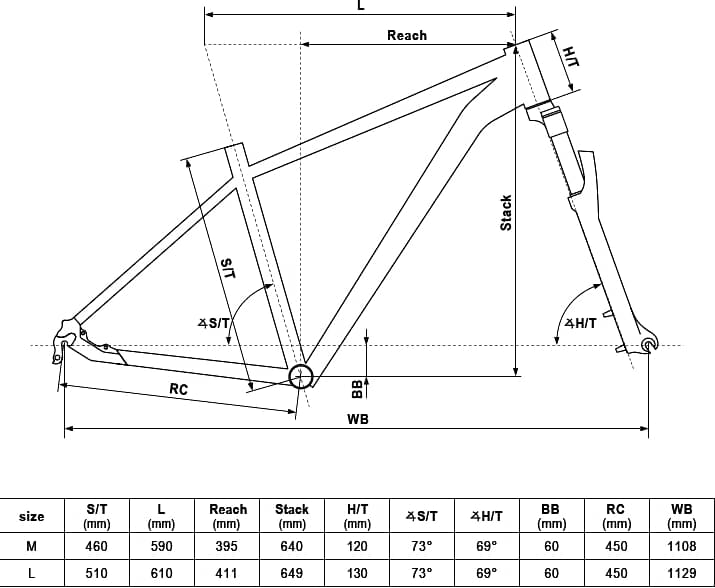

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
