Bike details
Overview
Key information split into simple groups.

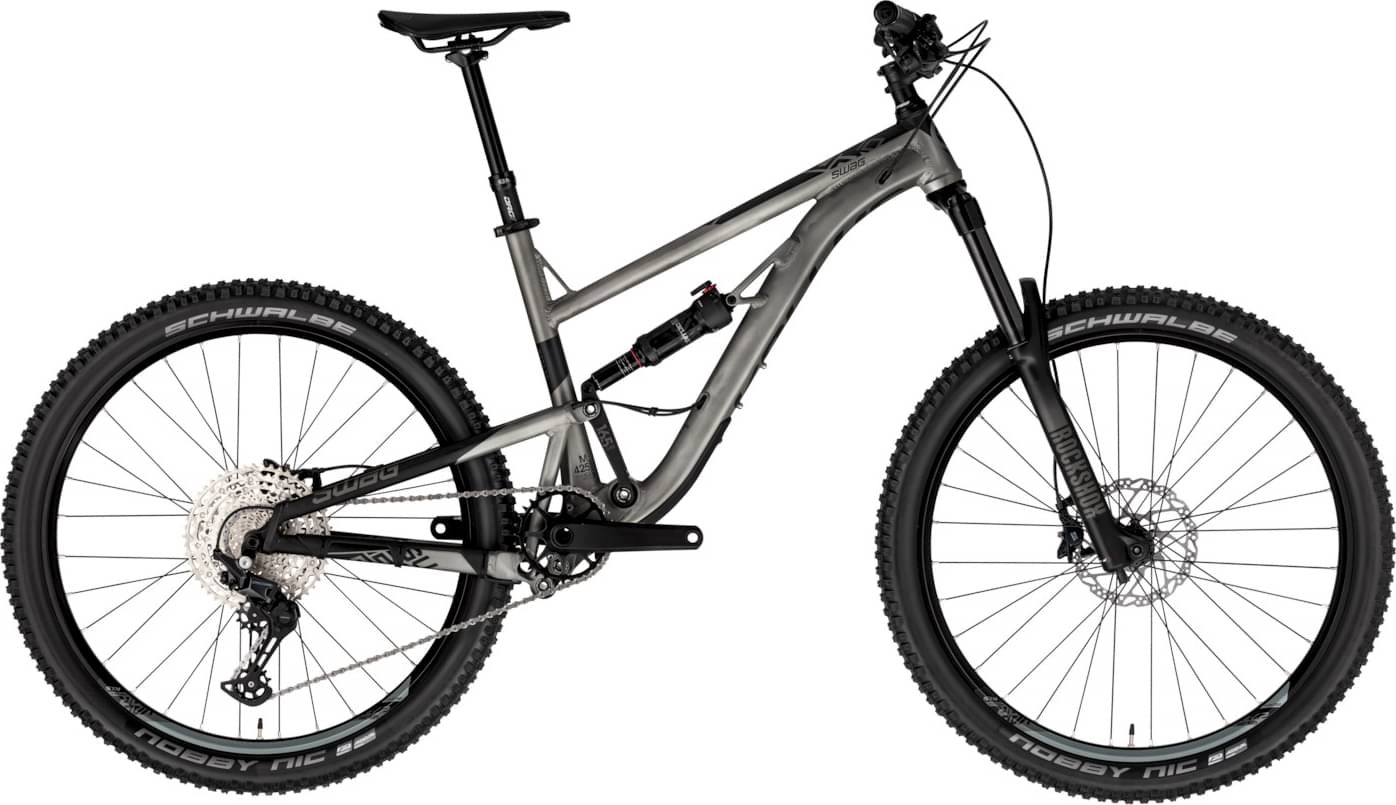

Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 165mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Enduro 27.5 / Think Link® suspension system, 165 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX 35 Silver TK (27.5) Boost, 160 mm, Solo Air / TurnKey / Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (230x65 mm)
Drivetrain
Rear Derailleur
SHIMANO Deore M6100 (direct mount)
Front Derailleur
chain guide MOZARTT Piano, ISCG 05
Shift Levers
SHIMANO Deore M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SAMOX (32T) - length 170 mm
Bottom Bracket
SAMOX Press-Fit
Chain
SHIMANO CN-M6100 (114 links)
Pedals
KLS Master
Wheels
Front Hub
SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc (584x30 / 32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-584 (27.5x2.35) ADDIX
Brakes
Brakes
SHIMANO Deore MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M4100
Cockpit
Stem
KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 45 mm
Handlebar
KLS Alm/En 70 RiseBar - diam 31.8 mm / rise 38 mm / width 780 mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
EXAform JAG-i Remote Telescopic - diam 30.9 mm / length 430 mm, travel 125 mm
Fit data

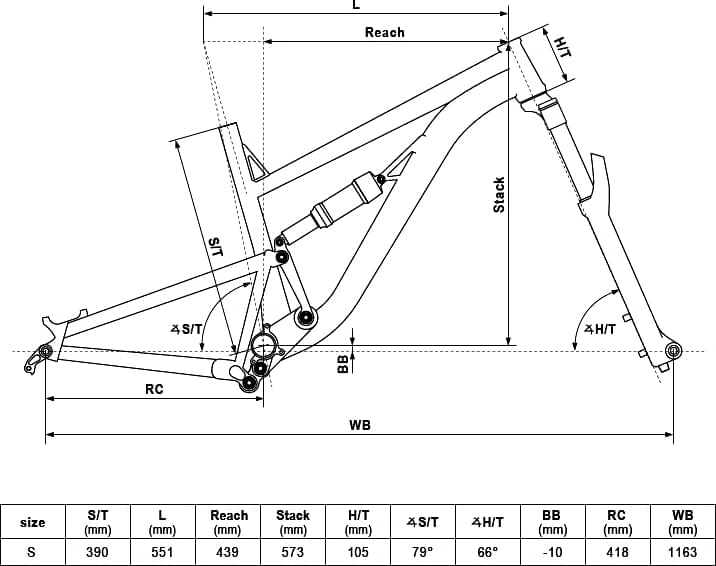

Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
