Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Enduro 29 / Think Link® suspension system, 150 mm rear travel, tapered HT, internal routing, 12x148 mm Boost thru axle
Suspension Fork
ROCK SHOX Yari RC (29) Boost, 170 mm, DebonAir / Motion Control / Maxle Stealth 15 mm thru axle
Rear Shock
ROCK SHOX Deluxe Select+ RT, DebonAir / Open-Threshold (210x55 mm)
Drivetrain
Rear Derailleur
SHIMANO SLX M7100 (direct mount)
Front Derailleur
chain guide MOZARTT Piano, ISCG 05
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M6100-12 (10-51T)
Crank
SHIMANO Deore MT510-1 (32T) - length 175 mm
Bottom Bracket
SHIMANO PressFit BB71-41A
Chain
SHIMANO CN-M6100 (114 links)
Pedals
KLS Master
Wheels
Front Hub
SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rear Hub
SHIMANO Deore MT410-B Disc Center Lock (15x110 mm / 12x148 mm / 32 holes)
Rims
KLS Valor 3 Disc (622x30 / 32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Hans Dampf Evo Super Trail 60-622 (29x2.35) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Nobby Nic Evo Super Terrain 60-622 (29x2.35) Tubeless Easy, ADDIX SpeedGrip, folding rear
Brakes
Brakes
SHIMANO Deore M6100 Hydraulic Disc
Brake Levers
SHIMANO Deore BL-M6100
Cockpit
Stem
RACE FACE Chester 35 - diam 28.6 mm / bar bore 35 mm / 0° / length 40 mm
Handlebar
RACE FACE Chester 35 RiseBar - diam 35 mm / rise 35 mm / width 780 mm
Grips
KLS Poison
Seat
Saddle
fi’zi:k Taiga, S-alloy rails
Seatpost
KS e20-i Remote Telescopic - diam 30.9 mm / length 474 mm, travel 150 mm
Fit data

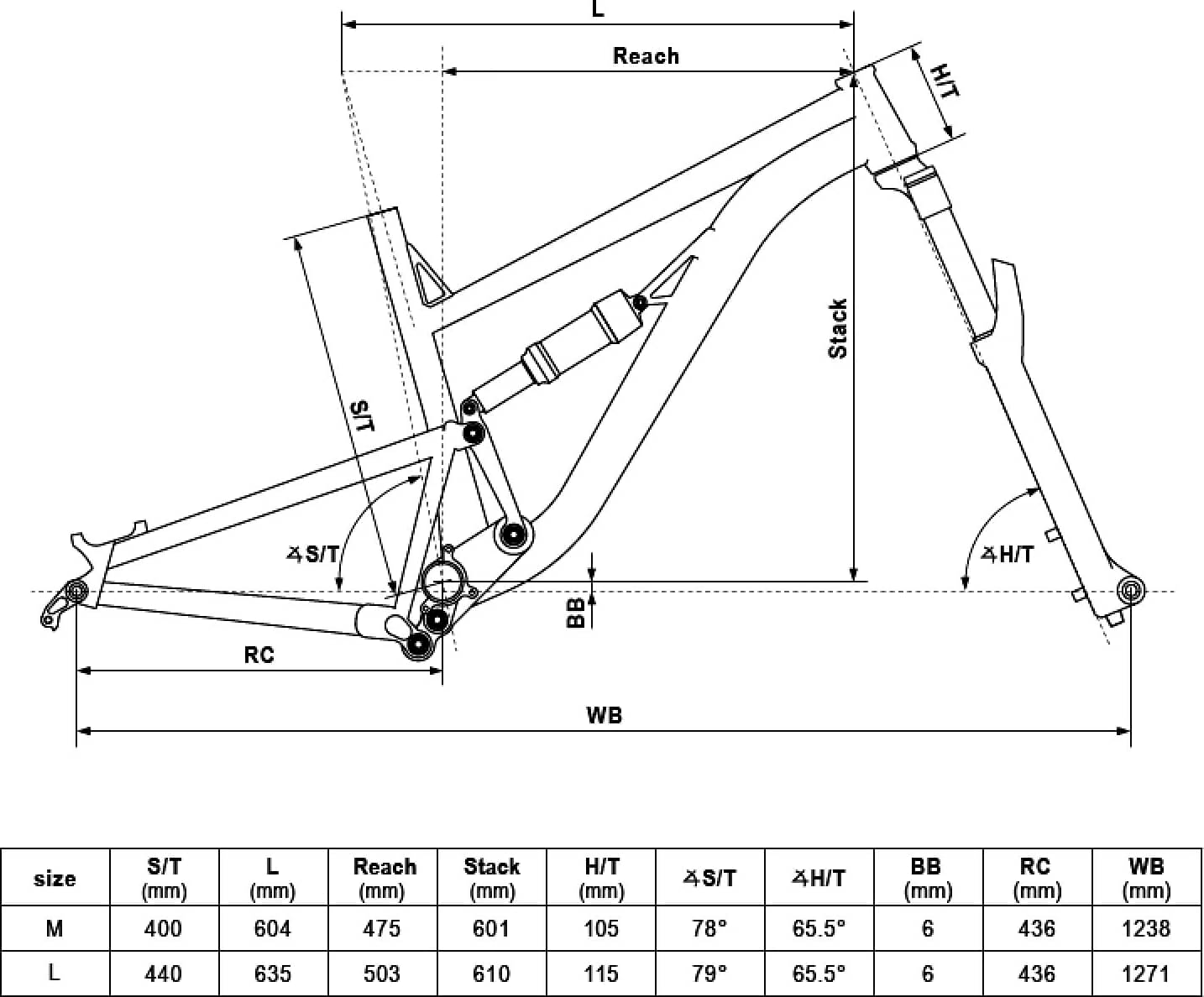

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
